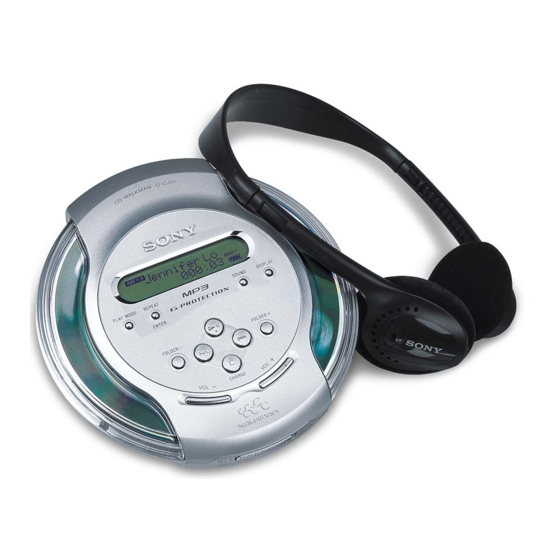

Sony WALKMAN D-CJ01 Operating Instructions Manual
Sony portable cd player operating instructions
Hide thumbs
Also See for WALKMAN D-CJ01:
- Operating instructions manual (34 pages) ,
- Service manual (32 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Portable
CD Player
Operating Instructions
About the area code
The area code of the location in which you purchased the CD player
is shown on upper left of the bar code label on the package.
For accessories supplied with your CD player, check the area code
of your model and see "Accessories (supplied/optional)."
D-CJ01
© 2001 Sony Corporation
3-232-711-27 (1)
"WALKMAN" is a trademark of
Sony Corporation.
Advertisement
Table of Contents
Related Manuals for Sony WALKMAN D-CJ01
Summary of Contents for Sony WALKMAN D-CJ01
-
Page 1: Operating Instructions
For accessories supplied with your CD player, check the area code of your model and see “Accessories (supplied/optional).” D-CJ01 © 2001 Sony Corporation 3-232-711-27 (1) “WALKMAN” is a trademark of Sony Corporation. - Page 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. To prevent fire, do not cover the ventilation of the apparatus with newspapers, table- cloths, curtains, etc.
-
Page 3: Table Of Contents
Table of Contents Getting started Locating the controls ... 4 Playing an audio CD or MP3 files 1. Connect your CD player..7 2. Insert a CD..7 3. Play a CD..7 Playback options Playing tracks repeatedly (Repeat play) ... 13 Playing all files in a selected folder (Folder play) (MP3 CD only) ... -
Page 4: Getting Started
Getting started Locating the controls For details, see pages in parentheses. CD player (front) 1 Display (pages 8, 10, 13 - 15, 17, 19, 20) 2 REPEAT/ENTER button (pages 13, 15, 16) 3 Strap holes (page 6) 4 PLAY MODE button (pages 13 - 16, 21) 5 LINE OUT jack (page 22) -
Page 5: Remote Control
Remote control Remote control (only for the models supplied with the RM-MC11EL remote control) wa Display (pages 8, 10, 13 - 15, 17, 19, 20) ws Rotary control N/>: play, AMS/folder AMS/search (pages 8, 10) .: AMS/folder AMS/search (pages 8, 10) VOL +/–: Pull the control in the direction of the arrow, and then turn it toward + or –. - Page 6 Using the hand strap ( only for the models supplied with the hand strap) To carry during strenuous activity, use the supplied hand strap. 1 Pass the hand strap through the strap holes of the player. (rear) 2 Put your hand through the hand strap, and hold the player in one of the two ways illustrated below.
-
Page 7: Playing An Audio Cd Or Mp3
Playing an audio CD or MP3 files You can also use rechargeable batteries or dry batteries as a power source. . Connect your CD player. 1 Connect the AC power adaptor. 2 Connect the headphones/earphones. For models supplied with the remote control •... - Page 8 Play (from the point you stopped) Play (from the first track) Pause/resume play after pause Stop Find the beginning of the current track (AMS* Find the beginning of previous tracks (AMS) Find the beginning of the next track (AMS) Find the beginning of succeeding tracks (AMS) Go backwards quickly (only when playing an audio CD) Go forward quickly (only when playing an audio CD) Automatic Music Sensor...
-
Page 9: Removing The Cd
When closing the lid of the CD player with the power supply attached While the “ ” flashes in the display, the CD starts rotating and will stop after the CD player reads the disc information. This helps to shorten the waiting time before playback starts. If the volume level does not increase •... -
Page 10: Playing Cd With Mp3 Files
Playing a CD with MP3 files Prepare the CD player and the CD in the same way as for an audio CD. (See “About MP3.”) Press u. The CD player plays all MP3 files on the CD. To select a folder on the CD player Use FOLDER + to go forward and FOLDER –... - Page 11 Example of folder structure and playing order The playing order of folders and files is as follows: CD-R CD-RW File mode Plays all MP3 files from 1, 2, 3...9, 0. Folder mode Plays all MP3 files in the selected folder. (Example: If you select folder 3, the CD player plays file 4.
-
Page 12: Playback Options
Playback options You can enjoy various playback options using PLAY MODE and REPEAT/ENTER. PLAY MODE button Each time you press the button, you can change the playback mode. No indication (Normal play) “ ”* (Play all files in a selected folder) “1”... -
Page 13: Playing Tracks Repeatedly (Repeat Play)
Playing tracks repeatedly You can play tracks (“files” when playing an MP3 CD) repeatedly in normal, only), single, shuffle, shuffle (MP3 CD only) and PGM play modes. During playback, press REPEAT/ENTER. Audio CD Track number Playing time When playing MP3 files •... -
Page 14: Playing Tracks In Random Order (Shuffle Play)
Playing tracks in random order (Shuffle play) During playback, press PLAY MODE repeatedly until “SHUF” appears. File name Audio CD MP3 CD Playing time Playing time Track number When playing MP3 files In shuffle mode, the CD player plays all files (up to 255 files) on a CD in random order. Playing all files in a selected folder in random order (Folder shuffle play) (MP3 CD only) -
Page 15: Playing Tracks In Your Favorite Order (Pgm Play)
Playing tracks in your favorite order You can program the CD player to play up to 32 tracks (“files” when playing an MP3 CD) in your favorite order. During playback, press PLAY MODE repeatedly until “PGM” appears. Audio CD Press . or > to select a track. When playing an MP3 CD, you can also select a folder using FOLDER + or –. -
Page 16: To Check The Program
To check the program During programming: Press REPEAT/ENTER repeatedly before step 5. During PGM play: Press PLAY MODE repeatedly until “PGM” flashes, then press REPEAT/ENTER. Each time you press REPEAT/ENTER, the track number appears. Notes • When you finish entering the 32nd track in step 3, the first track selected appears in the display. •... -
Page 17: Available Features
B Available features The G-PROTECTION function The G-PROTECTION function has been developed to provide excellent protection against sound skipping while jogging. When you set the G-PROTECTION switch on your CD player to “2”, the G- PROTECTION function will be enhanced compared to “1.”... -
Page 18: Checking The Time Remaining On The Cd And The Number Of Tracks Left
Checking the time remaining on the CD and the number of tracks left You can check the time remaining on the audio CD and the number of tracks left using DISPLAY. When playing an audio CD containing CD text information, the following information cannot be displayed on the remote control. -
Page 19: Emphasizing The Bass Sound (Sound)
Notes • If the folder does not have a folder name, “ROOT” appears in the display. • If the file does not have ID3 tag information, “- - - -” appears in the display. Emphasizing the bass sound (SOUND) You can emphasize the bass-boosted sound. Press SOUND to select “BASS 1”... -
Page 20: Protecting Your Hearing (Avls)
Protecting your hearing (AVLS) The AVLS (Automatic Volume Limiter System) function keeps down the maximum volume to protect your hearing. Hold down SOUND on the CD player until “AVLS ON” appears in the display. Flashes when the volume is turned up beyond a certain level. -
Page 21: Turning Off The Operation Beep Sound
Turning off the operation beep sound You can turn off the beep sound that is heard from your headphones/earphones when you operate your CD player. Remove the power source (AC power adaptor, rechargeable batteries or dry batteries) from the CD player. Connect the power source while pressing x/CHARGE on the CD player or x on the remote control... -
Page 22: Connecting Your Cd Player
B Connecting your CD player Connecting a stereo system You can listen to CDs through a stereo system and record CDs on a cassette tape. For details, see the instruction manual that comes with the connected device. Be sure to turn off all connected devices before making connections. -
Page 23: Connecting To A Power Source
B Connecting to a power source You can use the following power sources: • Rechargeable batteries • AC power adaptor (see “Playing an audio CD or MP3 files”) • LR6 (size AA) alkaline batteries For the battery life and charging time of the rechargeable batteries, see “Specifications.”... - Page 24 Using the rechargeable batteries To remove the rechargeable batteries Remove the batteries as illustrated below. When to charge the rechargeable batteries You can check the remaining power of the batteries in the display. Battery power is full. Battery power is getting low. Battery power is low.
-
Page 25: Using The Dry Batteries
Using the dry batteries Use only the following dry battery type for your CD player: • LR6 (size AA) alkaline batteries Note Be sure to remove the AC power adaptor when using the dry batteries. Open the battery compartment lid. Insert two LR6 (size AA) batteries by matching the 3 to the diagram in the battery compartment. -
Page 26: Additional Information
B Additional information Precautions On safety • Should any solid objects or liquid fall into the CD player, unplug it and have it checked by qualified personnel before operating it any further. • Do not put any foreign objects in the DC IN 4.5 V (external power input) jack. -
Page 27: Troubleshooting
Troubleshooting Should any problem persist after you have checked these symptoms, consult your nearest Sony dealer. Symptom Cannot adjust the volume by turning the rotary control on the remote control. Cannot start play by turning the rotary control on the remote control. - Page 28 Troubleshooting Symptom The CD does not play or “No disc” appears in the display when a CD is placed in the CD player. “HOLD” appears in the display when you press a button, and the CD does not play. The CD player does not start charging.
- Page 29 Symptom During playback of an MP3 CD, the CD does not rotate but you can hear the sound normally. “NO FILE” appears in the display after u is pressed or the lid of the CD player is closed. The CD does not start playing.
-
Page 30: Specifications
Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two Sony NH-7WMAA rechargeable batteries: 2.4 V DC • Sony NH-WM2AA rechargeable batteries: 2.4 V DC •... -
Page 31: Accessories (Supplied/Optional)
Accessories (supplied/optional) Supplied accessories For the area code of the location in which you purchased the CD player, check the upper left side of the bar code on the package. AC power adaptor (1) Headphones/earphones with remote control (1)* Headphones/earphones (1)* Rechargeable batteries (2)* Battery carrying case (1)* Carrying pouch (1)*... -
Page 32: About "Mp3
About “MP3” What is the MP3? MP3 (MPEG 1 Audio Layer-3) is a standard technology and format for compressing a sound sequence. The file is compressed to about 1/10 of its original size. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed. -
Page 33: About "Id3 Tag
About “ID3 tag” ID3 tag is a format for adding certain information (track name, album name, artist name, etc.) to MP3 files. Note This CD player conforms to Version 1.1 of the ID3 tag format. If you use a version other than 1.1, ID3 tag information will not be displayed correctly. - Page 36 Sony Corporation Printed in Malaysia...
