Summary of Contents for Sinclair ASV-35AS WIFI

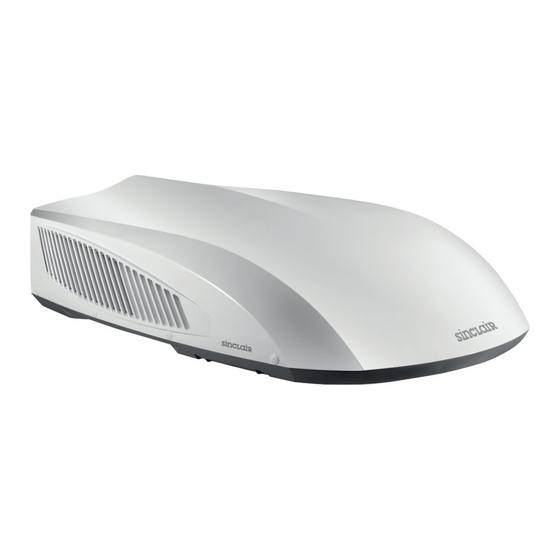

- Page 1 USER'S MANUAL CAMPER TRAILER ASV-25AS (WIFI), ASV-35AS (WIFI)
-
Page 2: Table Of Contents
CONTENTS A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT ........1 ELECTRICAL DATA ......................1 ELECTRIC DIAGRAM ......................2 PACKING LIST ........................3 PARTS NAME........................4 OPERATION OF WIRELESS REMOTE CONTROLLER ............5 CONTROL PANEL ......................12 INSTALLATION INSTRUCTION..................13 ..13 STEP 1-SELECTING AN INSTALLATION LOCATION & INSTALLING THE ROOF TOP AIR CONDITIONER ..................16 STEP 2-MOUNTING OUTDOOR UNIT ................17... - Page 3 INSTALLATION PRECAUTION WARNING: Observe all governing codes and ordinances. Do not use damaged or non-standard power cord. Be caution during installation and maintenance. Prohibit incorrect operation to prevent electric shock, casualty and other accidents. Otherwise, the cool air can’t be blown out and there will be condensate water on the horizontal louver.
- Page 4 INSTALLATION PRECAUTION Requirements Forelectric Connection Safety precaution Must follow the electric safety regulations when installing the unit. For appliances with type Y attachment,the instructions shall contain the substance of the following.If the supply cord is damaged,it must be replaced by avoid a hazard.
-
Page 5: A Few Words About Your New Air Conditioning Unit
A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT Thank you for choosing the Recreational Vehicle Air Conditioner. This manual will supply you with all the information for installation, operation and maintenance. Take a few minutes to discover how to get the most in cooling comfort and economic operation from your new air conditioner. -
Page 6: Electric Diagram
ELECTRIC DIAGRAM Ceiling Assembly ROOM SENSOR DISPLAY DISP2 BOARD DISP1 CONNECTOR WIFI MODULE CONNECTOR DISPLAY MODULE Roof Top Air Conditioner OUTDOOR TUBE OUTROOM YEGN YEGN 4-WAY IN_FAN TUBE SENSOR SENSOR SENSOR VALVE MOTOR ELECTRIC BOX (20K) (20K) (15K) (WH) (BK) 4WAY IN_FAN WIFI_CON... -
Page 7: Packing List
PACKING LIST Packing List of Indoor Unit owner’s manual Packing List of Outdoor Unit TIMER ON Bolt sub-assy clasp(10) Tapping screw (8) M8X135 (4) remote controller battery (2) Sunk screw (2) Double-sided gummed paper (remote controller holder) (AAA 1.5V) Remote controller holder Sponge (foam accessory) Mounting plate sub-assy Foam (up) Foam (accessory) -
Page 8: Parts Name
PARTS NAME Indoor Unit Filter sub-assy Air-in grille LED indicator Air-outgrille Control panel (membrane) (Display content or position may be different from above TIMER ON LIGHT graphics, please refer to actual products) remote controller Outdoor Unit Outer case Air-in grille Chassis Drainage outlet NOTICE:... -
Page 9: Operation Of Wireless Remote Controller
OPERATION OF WIRELESS REMOTE CONTROLLER Buttons on remote controller Note: This remote controller is the universal remote controller. Some function is not available for this unit. ON/OFF button MODE button - button + button FAN button button ON/OFF MODE CLOCK button LED button TIMER ON button TEMP button... - Page 10 Introduction for buttons on remote controller Note: ● This is a general use remote controlle , it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
- Page 11 FAN button Press this button, Auto, Low, Middle, High speed can be circularly selected. After powered on, Auto fan is not available for this mode. When pressing AUTO button, the fan speed will not change. AUTO Low fan Middle fan High fan Note: Under the Dry mode, the fan speed isn't adjustable, low fan speed is imperative, but when operating this button, the wireless adjustable, low fan speed is imperative.
- Page 12 quickly change, the way of change is: During the initial 2.5 seconds, ten numbers change in the one place of minute, then the one place is constant, ten numbers change in the tens place of minute at 2.5 seconds speed and carry. During 5s blink, press the Timer button, the timer setting succeeds.
- Page 13 LIGHT button Press this button to select LIGHT on or off in the displayer. When the LIGHT on is set, the icon will be displayed and the indicator light in the displayer will be on. When the LIGHT off is set, the icon will be displayed and the indicator light in the displayer will be off.
- Page 14 Operation guide General operation . After powered on, press ON/OFF button, the unit wi start to run. (Note: when it is powered on, the guide louver of main unit will close automatically.) 2. . Press MODE button, select desired running mod .
- Page 15 Replacement of batteries in remote controller battery 1. Press the back side of remote controller marked reinstall the cover of battery box along the arrow direction. 2. Replace two 7# (AAA 1.5V) dry batteries, and remove make sure the position of "+" polar and "-" polar are correct.
-
Page 16: Control Panel
CONTROL PANEL Note: If the remote controller is missing, operate on the control panel. ON/OFF temp. COOL receiver indicator indicator indicator window HEAT indicator ON/OFF button MODE button Select the operation mode, COOL,FAN, Operation starts when pressing this button, and HEAT. -
Page 17: Installation Instruction
INSTALLA TION INSTRUCTION BEFORE INSTALLATION Testrun the unit with proper power supply. Refer to the operation instruction section in the Owner’s Manual Operation & Installation. Make sure all the controls operate correctly then disconnect the power supply of the unit. ●... - Page 18 CASE B. If a roof vent opening is not used,a new opening(see figure 1)will be cut into the vehicl roof. A matching opening will also have to be cut into the interior vehicle ceiling,be careful when cutting the ceiling opening because if the ceiling opening is carpeted,snagging could occur. After the opening in the roof and interior ceiling are the correct size,a framed support structure must be placed between the exterior roof top and interior ceiling.The reinforced framed structure must follow the follwing guidelines:...
- Page 19 Note: Try you best to put the unit on the horizontal surface for operation. The unit can only operate for a short time at the maximum sloping angle of 5º for preventing water leakage. Level Level Level Above or Below Above Level 5°...
-
Page 20: Step 2-Mounting Outdoor Unit
STEP 2-MOUNTING OUTDOOR UNIT 1.Open the package and take out the outdoor unit 1) When taking out the outdoor unit after unpacking, do not lift the air outlet grille at the back of outer case (see Figure4-1). Figure4-1 2.Fix the outdoor unit at the roof of vehicle and then drill holes. -
Page 21: Step 3-Installing The Ceiling Assembly
STEP 3-INSTALLING THE CEILING ASSEMBLY Make sure that you have properly matched the roof top air conditioner and interior ceiling assembly.Caution before tightening bolts: 1.The applicable thickness of vehicle roof ranges from 30mm~80mm. Before tightening bolts, screw in the four bolts manually and prohibit screwing forcibly. 3.When screwing bolts, you can use automatic tool. -
Page 22: Step 4-Electrical Wiring
foam foam(Num 3, 14mm) sponge(Num3,5mm) wind-path fig 5-2 foam fig 5-3 foam(under) STEP 4-ELECTRICAL WIRING ROUTING 220-240V AC WIRING WARNING Make sure that all power supply to the unit is disconnected before performing any work on the unit to avoid the possibility of shock or injury and/or damage to the equipment. After the interior ceiling assembly frame is properly secured to the roof top air conditioner, the following electrical connections must be performed. - Page 23 fig9-1 fig9-2 fig9-3 fig9-4 4 shown in the picture, use a piece of thermal insulating jacket to enclose the wiring terminals and sponge. Then glue the thermal insulating jacket and fasten it with cable ties. Note: 1. Cable ties must be attached to the area with both sponge and thermal insulating jacket;...
-
Page 24: Step 5-Completing The Installation
STEP 5-COMPLETING THE INSTALLATION To complete the installation and system checkout requirements, the following steps must be performed. Check the thermostat position. Make sure the thermostat is routed through the holding guide and is not touching any metal surface. Secure the ceiling grille to the ceiling assembly wind-path with 4 screws. (see Figure 10). Install the healthy filter and air intake grill. -
Page 25: Troubleshooting Guide
TROUBLESHOOTING GUIDE If you have problems with your recreational vehicle air conditioner, check this guide before contacting your service representative. TROUBLE POSSIBLE CAUSE SOLUTION The unit can The unit may not be connected to the Check the power supply of the vehicle and make sure it is not start power supply correctly. - Page 26 NORMAL MAINTENANCE PROCEDURES ACTIVETY FREQUENCY Remove the cover and wash the condenser coil Twice a year. Clean the filter When the air conditioner FILTER CHECK (More frequent cleaning may be necessary light on. depending on the air quality) HOW TO REMOVE THE AIR FILTER Push both sides of the air intake grill on the positions front grill marked with “PUSH”.
- Page 27 Figure a Sketch map of claspdismantle tool Choose appropriate size that fits your hand feeling Figure b Sketch map of clasp in different status Clasp core Clasp base about 3mm Before After Demountable status Figure c WARNING FAILURE TO FOLLOWING INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY Don’t touch the capacitor terminals without the electric discharge, the capacitor still may have the high voltage even though the power supply is turned off.
-
Page 28: Note Concerning Protection Of Environment
W1F 7LD United Kingdom www.sinclair-world.com This product was manufactured in China (Made in China). REPRESENTATIVE , TECHNICAL SUPPORT SINCLAIR Global Group s.r.o. Purkyňova 45 612 00 Brno Czech r epublic Tel.: +420 541 590 140 Fax: +420 541 590 124 www.sinclair-solutions.com...
