Dynamics Colorwave Fullrim
Technical Instructions

Advertisement

Table of Contents
loading

Related Manuals for Silhouette Dynamics Colorwave

Summary of Contents for Silhouette Dynamics Colorwave

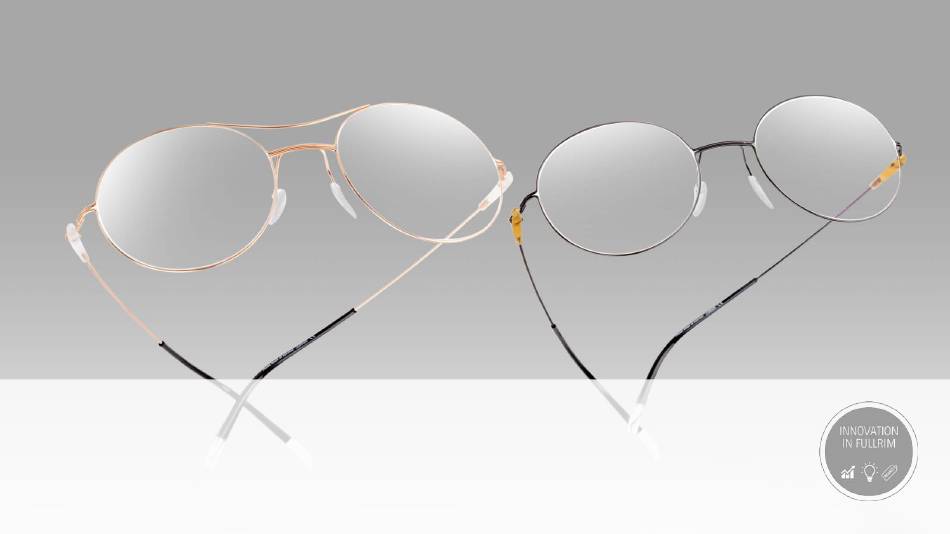

  • Page 1 Dynamics Colorwave Fullrim Technical Instructions...

  • Page 2: Dynamics Colorwave Fullrim | Glazing

    Dynamics Colorwave Fullrim | Glazing Recommendation for Optical Lenses  Frame is designed with 5.0 base curve  Other base curves are possible  Groove should be cut to a 5.0 curve on lenses that have flatter front curves  Plastic spectacle lens index 1.6, 1.67, Trivex or polycarbonate ...

  • Page 3: Dynamics Colorwave Fullrim | Grooving

    Dynamics Colorwave Fullrim | Grooving Groove depth and width for inline glazing: Lenses should be cut on size. If the lens is large, it must be resized!

  • Page 4: Dynamics Colorwave Fullrim | Glazing Tool

    Dynamics Colorwave Fullrim | Glazing tool Glazing tool (ribbon) VGLH3 has a smooth surface and is very thin. It should be used when dismounting or mounting lenses. Ribbons with rough surfaces or greater thickness should not be used!
  • Page 5 Dynamics Colorwave Fullrim | Inserting the lens Rubber Ring Place the enclosed rubber ring into the groove of the lens...
  • Page 6 Dynamics Colorwave Fullrim | Inserting the lens 1. Insert the lens from the rear, starting from the nasal corner to the temporal corner. 2. Continue pulling the lower titanium rim around the lens edge with ribbon.
  • Page 7 Dynamics Colorwave Fullrim | Removing the lens 1. Thread the Silhouette ribbon between the lens and frame at the temporal gap and slide it to the lower edge of the frame. 2. Separate the lower Titanium edge with the Silhouette ribbon and remove the...

  • Page 8: Dynamics Colorwave Fullrim | Inclination

    Dynamics Colorwave Fullrim | Inclination 1. Open the temple. 2. Hold the frame by the end piece with double padded optician pliers. 3. Incline the temple at the hinge.
  • Page 9 Dynamics Colorwave Fullrim | Enlarge temple opening 1. Open the temple. 2. Hold the frame by the end piece with double padded optician pliers 3. Press the temple outward with your thumb...
  • Page 10 Dynamics Colorwave Fullrim | Reducing temple opening 1. Open the temple. 2. Hold the frame by the end piece with your optician pliers 3. press the temple inward with your thumb...
  • Page 11 Dynamics Colorwave Fullrim | Temple contouring Use large curves to adjust the temple to fit the head...

  • Page 12: Dynamics Colorwave Fullrim | Temple End Adjustment

    Dynamics Colorwave Fullrim | Temple end adjustment Adjust the temple to the ear shape with large curves. During temple- end adjusting do not put pressure on the temple tip.
  • Page 13 Dynamics Colorwave Fullrim | Temple shortening (nonglued) Pull off temple end.
  • Page 14 Dynamics Colorwave Fullrim | Temple shortening (nonglued) 1. Shorten titanium wire with metal-diagonal cutter. 2. File down sharp edges and burrs.

  • Page 15: Dynamics Colorwave Fullrim | Temple Shortening (Nonglued)

    Dynamics Colorwave Fullrim | Temple shortening (nonglued) Squeeze titanium wire with round pliers at the very end. The notch you just created at the end of the temple prevents the temple end from slipping off...
  • Page 16 Dynamics Colorwave Fullrim | Temple shortening (glued) 1. Squeeze the forward most part of the temple cover with a plastic tip plier to break the glue bond. 2. Carefully pull off the temple cover.
  • Page 17 Dynamics Colorwave Fullrim | Temple shortening (glued) 1. Shorten titanium wire with metal-diagonal cutter. 2. File down sharp edges and burrs.
  • Page 18 Dynamics Colorwave Fullrim | Temple shortening (glued) 1. Remove remaining glue. 2. Apply a small amount of glue on the inside of the titanium wire. 3. Slide the temple cover back onto the titanium wire, wipe off excess glue.
  • Page 19 Dynamics Colorwave Fullrim | Temple removal 1. Hold the frame by the hinge area firmly with your fingers. 2. With the other hand grasp the partially closed temple directly behind the hinge and push it in the direction of the lens...

  • Page 20: Dynamics Colorwave Fullrim | Temple Mounting

    Dynamics Colorwave Fullrim | Temple mounting 1. Hold lens mounting firmly with your fingers. With temple upside down insert the front hole of the temple hinge onto the end piece. 2. Slide the temple all the way onto the end piece so it is next to the lens.
  • Page 21 Dynamics Colorwave Fullrim | Teflon After cleaning the frame in an ultrasonic bath relubricate the hinge with Teflon...
