Summary of Contents for Kohler S300

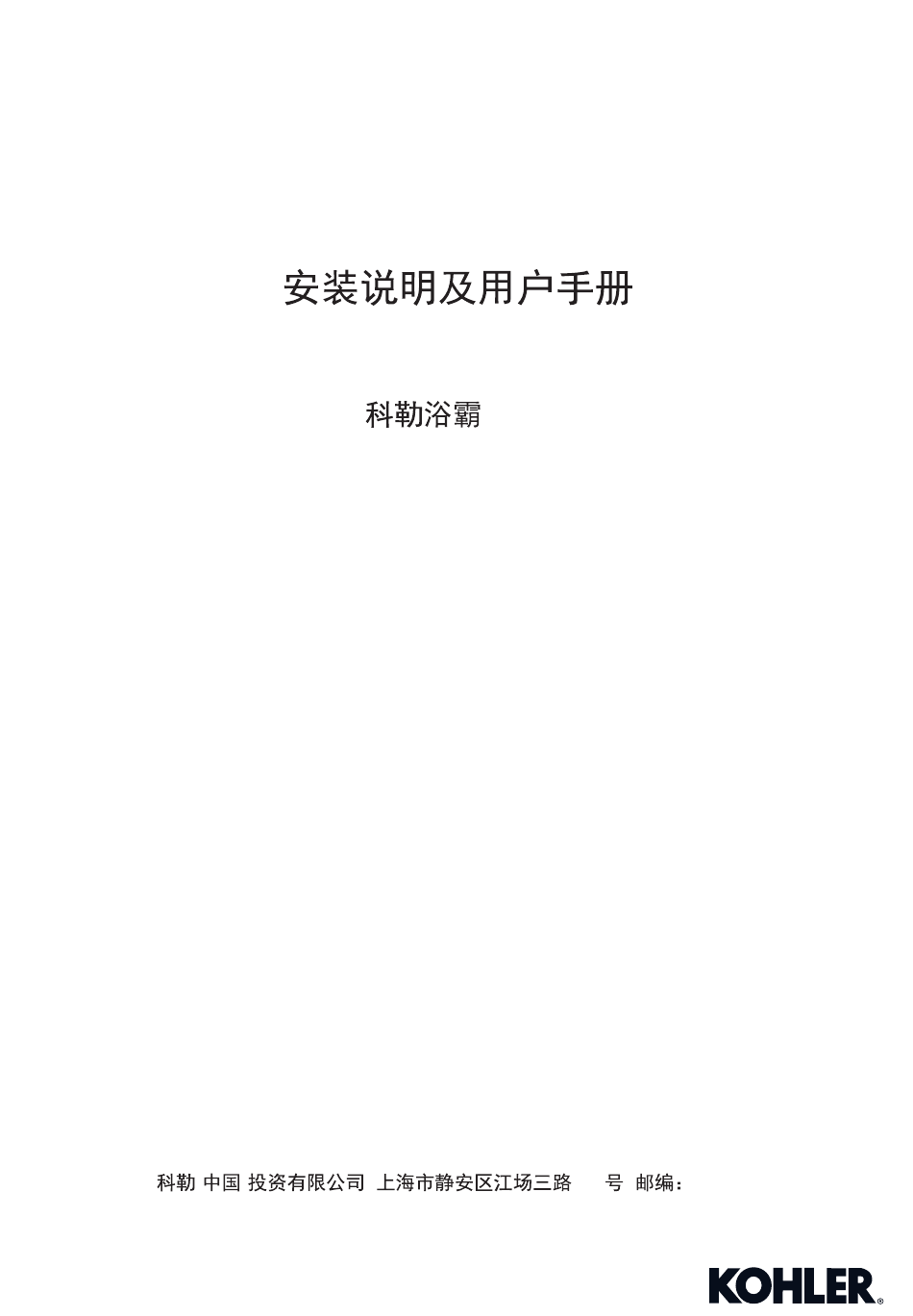

- Page 1 Installation and Homeowners Guide Veil Bathroom Heater S300 S300 K-21464T-0 (Aircare) K-21464T-X-0(Cloud) K-21466T-0 KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 1367689-T01-A...
-
Page 2: Before You Begin
Percussion Drill Pen Knife Wrench ROUGHING-IN Reference Value Unit: mm Hot Air Outlet Ventilation Outlet Junction Box Cover Kohler reserves the right to change marked dimensions without prior notice. © Copyright Kohler China Investment Co., Ltd. 2018 1367689-T01-A © 2018... -
Page 3: Specifications
SPECIFICATIONS K-21464T-0/K-21464T-X-0/ K-21464T-0/K-21464T-X-0/ Model K-21466T-0 K-21466T-0 Voltage/Frequency 220V~/50Hz 220V~/50Hz Rated Input Power 2150W 2150W Heater Power 2137W 2137W Fan Power Dry Clothing Power 2137W(Hot)/35W(Cool) 2137W( )/35W( Ventilation Power Air-care Power 36W(K-21464T-0/K-21464T-X-0 Only) 36W( K-21464T-0/K-21464T-X-0) Lighting Power 13W 2 (72pcs 0.2W) 13W 2 (72 0.2W) Ventilation Volume... -
Page 4: Wiring Diagram
WIRING DIAGRAM K-21464T-0 YELLOW/GREEN MOTOR OVER CURRENT FUSE CAPACITOR 220V 50Hz BLUE YELLOW THERMOSTAT THERMAL FUSE BLUE BLUE ALL-POLE SWITCH (OPTIONAL) HEATER 1 BROWN WHITE HEATER 2 BROWN STEPPER MOTOR BLUE THE RATE OF THE POWER SWITCH GRAY PINK MUST NOT BE LOWER THAN 250V 16A YELLOW WHITE ORANGE... -
Page 5: Preparation Before The Installation
WARNING Conductor Make sure the power cord installed firmly, Earth otherwise it may catch fire. (Unit: mm) Power Cord There's no risk of damage to the insulation of power cord. Terminal Copper cord must be inserted into the pillar terminal hole, and make sure all the cords under the terminal are inserted into the pillar terminal completely. -
Page 6: Packing List
Take out the bathroom from package. Bathromm Heater C. Packing List 1367446 1322379 100 Air Outlet Window Fixed Column Assy. (2pcs) (2 ) Expansion Pipe 1367447 100 Air Exhasut Pipe M6 Screw Rod Note: Initial Length: 140mm Stretch Length: 2000mm 140mm 2000mm 1285549... -
Page 7: Installation
1367442 1367690 Remote Control Assy. Installation Template S300 Remote Control Base Assy. Base Remote Control (Only K-21464T-0/ K-21464T-X-0) M4*25 Screw K-21464T-0/ K-21464T-X-0) Cover 6 Plastic Expansion Pipe INSTALLATION Caution before installation: 200mm The installed product must be 200mm or above away from curtains or other combustible materials. - Page 8 2. Fix the power cord to the bathroom heater (1) Remove the screw on the wiring cover plate. (2) Open the wiring cover plate. (3) Lift the terminal protection cover. (4) Loosen the screw fixing the power cord clip. (5) Loosen the screw on the wiring terminal, insert the power cord (not supplied) connected to the indoor fixed line into the wiring terminal, tighten the wring terminal screw.
- Page 9 (3) Fix the suspender on the right position of the cement board, use the install template to adjust the M6 nut on the suspender. M6 Butterfly Nut M6 Nut Suspender 6 Washer Cement Board 6 Spring Washer M6 Nut Ceiling Surface Install template datum line (4) Fix the suspension bracket on the suspender by 8 8 BTP4*8...
- Page 10 (6) Install the air exhaust pipe 1) Fix the air exhaust pipe on the ventilation outlet assy. by the clamp. The pipeline connected to outside of the room must be slanted to prevent rain or condensed water from flowing backwards. Ventilation Outlet Assy.
- Page 11 4. Installing the Main Body Method 2 Ceiling mounting has not been installed. (1) Positioning and installation of the suspenders 1) Put the installation template to the position of fixed hole A and B on where the bathroom heater is going to be installed.
- Page 12 (5) Install the air exhaust pipe 1) Fix the air exhaust pipe on the ventilation outlet assy. by the clamp. The pipeline connected to outside of the room must be slanted to prevent rain or condensed water from flowing backwards. Ventilation Outlet Air Exhaust Pipe Clamp...
-
Page 13: Button Function
USER'S GUIDE A. Before Using Before using the remote control, please take off the battery insulating strip. Before using the remote controller, please wait for 5 seconds after the power source is connected. Battery Insulating Strip B. Paring Please press "Light" and "Light Off" together within 3 minutes after connecting to power source. - Page 14 D. Display Information Current Hour Minute Celsius Humidity HEATER HOT DRY COOL DRY 24H VENTILATION VENTILATION AIR-CARE AIR FLOW FIXED SWING MODE E. Activated mode During the standby mode, press any button to the activated mode , K-21464T-0 and K-21464T-X-0 will K-21464T-0 K-21464T-X-0 display room temperature and humidity, K-21466T-0 will...
-
Page 15: Troubleshooting
G. Temperature Setting Press "Heater" after the remote control is activated, and ° 40 C the screen will show temperature setting. Pressing "+" or "-" can increase or decrease the heating temperature. Pressing "Heater" again within 10 seconds will turn to time set. -
Page 16: Important Consumer Information
6. All installation staff should be well familiar with installation instruction. Notice: Troubleshooting needs to be done by professional of KOHLER CHINA. Users are not suggested to do this without help. Please remember that the checking and repairs done by users themselves could easily cause damage to the machine or cause physical harm to the person.
