Makita LS0810 Technical Information

T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS

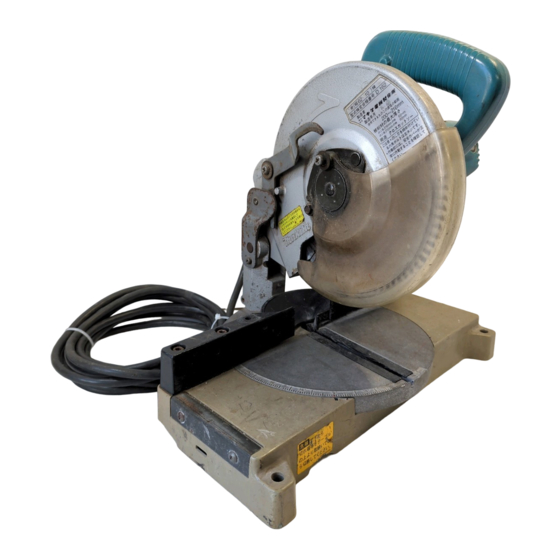

This machine is the desktop miter saw having the link
function(interlocking function) for the handle and the safety
cover. If the handle is lowered(start to cut), the safety cover will
start to open even if it does not touch the material, and it will be
opened up to the necessary angle without damaging the
material. Except that the open/close function of the safety cover
is different, all other features are same as LS0800, M241. M242
or the sister version of the LS0810 comprises the motor coated
with the light green color in general. Note that only the one
coated with the red color for exclusive export to America and
Canada is manufactured so far.
S
pecifications
Voltage (V)
100
115
200
220
230
240
*All the main functions are same as LS0800-M241.
No Load Speed(min.)
Saw blade(mm)
Max. cutting capacity(mm)
(When outer dia. of a saw blade
is 210mm)
Net Weight
Cord length(m)
S
tandard equipment
Holder assembly --- One set(for receiving the lengthy material)
Dust bag assembly --- One set
Box wrench 9 --- One piece(for detaching the saw blade)
Vice assembly --- One set(only for export)
(Same as LS0800, M241.)
The standard equipment for the tools shown may differ form country to country.
LS0810
MAKITA 210mm(8-1/4") Miter saw
Current (A) Cycle (Hz)
11.0 50/60
7.3 50/60
5.5 50/60
3.8 50/60
3.7 50/60
3.5 50/60
Rotation per minute
Inner dia
Outer dia.
Right angle(0) cutting in
height, in width
45angle cutting in height,
in width
52angle cutting in height,
in width
domestic
export
Continuous Rated
rating input(W) output(W)
1050 620
800 440
1050 620
800 440
800 440
800 440
5000/min.
25mm, 25.4mm
domestic 200-216mm
export
200-210mm
55mmx130mm
55mmx95mm
55mmx81mm (when the stiffening
plate with thickness of 3 mm is
placed between the guide rule and
the material)
5.6kg
5m
2.5m
New Tool
Max. Output(W)
810
860
810
860
860
860
