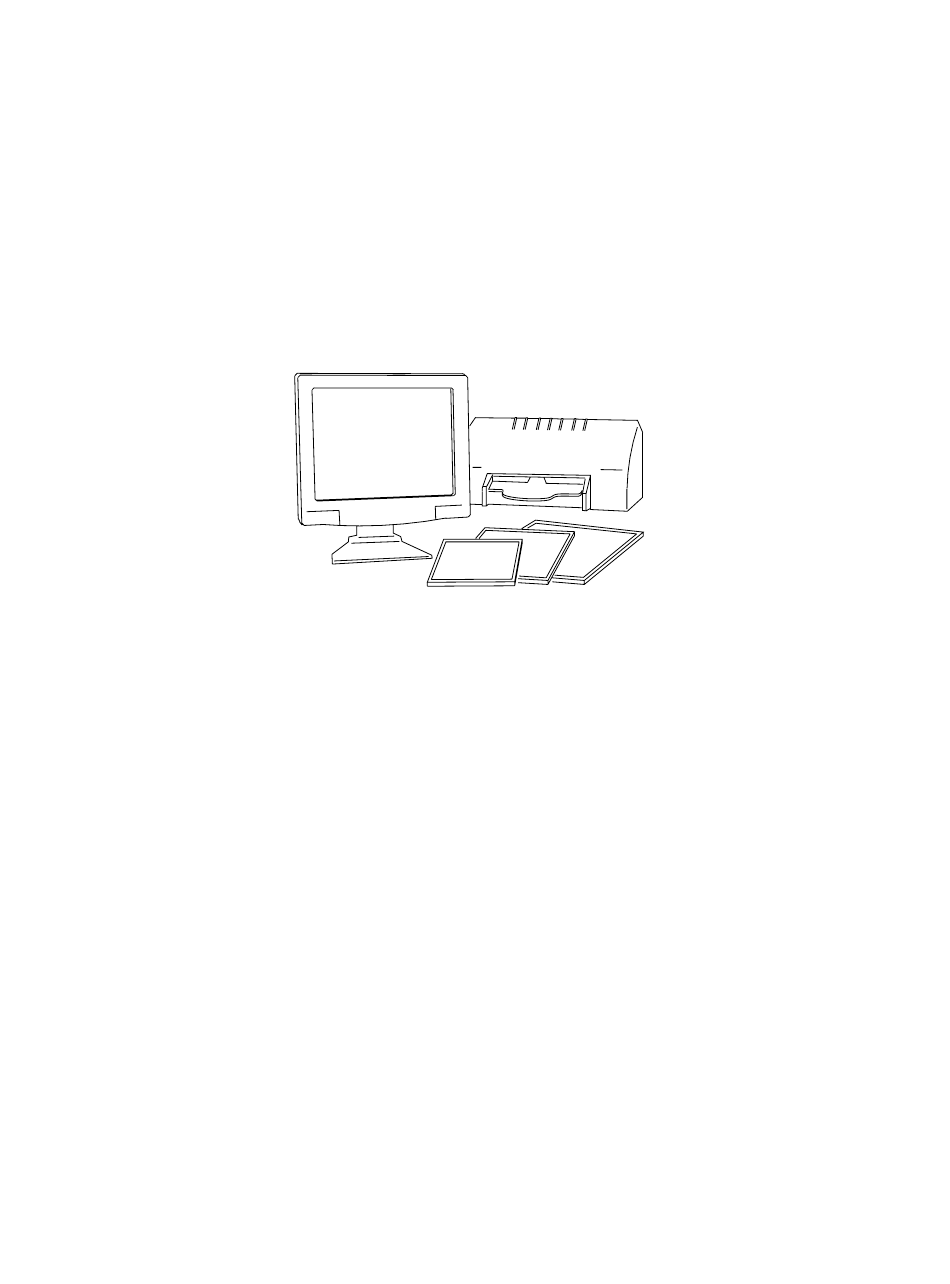

- Page 1 Kodak Point-of-Care CR 120/140 System Hardware Guide April 1, 2007...
-
Page 3: Table Of Contents
Table of Contents 1 Safety and Regulatory Information Document Conventions ............................1-1 General Safety Guidelines ..........................1-1 Electrical Hazards ............................1-2 Explosions and Implosion Hazards ........................1-3 Overheating..............................1-3 Laser Safety Instructions...........................1-3 Recycling the Scanner ............................1-3 Labeling Summary............................1-4 IEC Symbols Used.............................1-4 Device-Specific Safety Information ........................1-5 Health and Safety Compliance ........................1-5 U.S.A ..............................1-5 Canada..............................1-6... -
Page 5: Safety And Regulatory Information
Safety and Regulatory Information The information contained herein is based on the experience and knowledge relating to the subject matter gained by Carestream Health, Inc. prior to publication. No patent license is granted by this information. Carestream Health, Inc. reserves the right to change this information without notice, and makes no warranty, express or implied, with respect to this information. -
Page 6: Electrical Hazards
Safety and Regulatory Information • Do not modify this product in whole or in part without prior written approval from Carestream Health, Inc. • Personnel operating and maintaining the CR System should receive training and be familiar with all aspects of operation and maintenance. •... -
Page 7: Explosions And Implosion Hazards
Contact your local authorized representative or refer to www.kodak.com/go/recycle for additional information on the collection and recovery programs available for this product. -
Page 8: Labeling Summary
Safety and Regulatory Information Labeling Summary Laser-emitting product CLASS 3B LASER PRODUCT INSIDE HIGH VOLTAGE IEC Symbols Used The system may have labels with one or more of the following symbols. These symbols indicate the IEC standards to which the system conforms. Caution —... -
Page 9: Device-Specific Safety Information
Device-Specific Safety Information LIFTING HAZARD The Kodak Point-of-Care CR 120/140 scanner weighs 45 kg (99 lb). Do not try to lift the scanner by yourself. Always seek assistance from another person. Lifting equipment that is too heavy may result in serious injury and/or damage to equipment. -
Page 10: Canada
Safety and Regulatory Information Canada CAN/CSA 22.2 No. 601.1-M90 - Medical Electrical Equipment (R2001) CAN/CSA 22.2 No. 601.1S1-94 - Supplement No. 1-94 to Medical Electrical Equipment (R1999) CAN/CSA 22.2 No. 601.1B-90 - Amendment 2 to Medical Electrical Equipment (R2002) International IEC 60601-1: 1988, +A1 (1991), +A2 (1995) Medical Electrical Equipment IEC 60825 - 1: 1993 +A1:1997 + A2:2001 Safety of Laser Products. - Page 11 Safety and Regulatory Information scanner. Port Port From Cable Cable Type Description Type Length Power AC power CR 120/140 AC Mains Unshielded 1.5 m (via UPS) Signal USB CR 120/140 PC Shielded 2.5 m Shielded Locations Not applicable. Electromagnetic Emissions for Group 1, Class A Equipment The CR 120/140 scanner is intended for use in the electromagnetic environment specified below.
- Page 12 Safety and Regulatory Information Electromagnetic Immunity for Equipment and Systems Fully Compliant with IEC 60601-1-2:2001 The CR 120/140 scanner is intended for use in the electromagnetic environment specified below. The customer or the user of the CR 120/140 scanner should assure that it is used in such an environment. Immunity Test IEC 60601 Compliance...
- Page 13 Safety and Regulatory Information Electromagnetic Immunity for NonLife Supporting Equipment and Systems The CR 120/140 scanner is intended for use in the electromagnetic environment specified below. The customer or the user of the scanner should assure that it is used in such an environment. Immunity Test IEC 60601 Compliance...
- Page 14 Safety and Regulatory Information Electromagnetic Immunity for NonLife Supporting Equipment and Systems Field strengths from fixed transmitters, such as base station for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
-
Page 15: Ce Conformity
Safety and Regulatory Information CE Conformity This product conforms to the requirements of council directive 93/42/EEC. The Kodak Point-of-Care CR 120/140 is a Class I medical device. The Kodak Point-of-Care CR 120/140 bears the following mark of conformity: European Authorized Representative... -
Page 17: Using The Scanner
10" x 12"; 14" x 14"; 14" x 17"; 24 x 30 cm. Operational Principles The Kodak Point-of-Care CR 120/140 System is a digital imaging system for image acquisition and processing of static projection radiography that uses a phosphor screen with energy storage capability as an x-ray image receptor. -
Page 18: Scanner Views
Using the Scanner Scanner Views Scanner Status LEDs Cassette Tray Front View of Scanner On/Off Switch USB Connector Power Connnector Rear View of Scanner 6H8044... -
Page 19: Scanner Status Indicators
Scanner Status Indicators Two light-emitting diode (LED) status indicators are located on the front of the Kodak Point-of-Care CR 120/140 scanner above the cassette entry slot. Each indicator can appear green or orange; the color can be either steady or blinking. -
Page 20: Cleaning The Rollers
"Ready for Scan." You can now scan, erase, or unload the screen. For further instructions, refer to the Kodak Point-of-Care CR 120/140 System Software Guide. NOTE: If you do not take any action within two minutes, the cassette is automatically ejected, and a message is displayed. - Page 21 Using the Scanner The following message appears: Insert the Cleaning Tray, making sure that it locks into place. Click OK. The rollers begin to rotate. Remove the protective paper from the cleaning plate to expose the adhesive. 6H8044...
- Page 22 Using the Scanner Removing the Protective Strips Place the cleaning plate on the tray. Make sure the cleaning plate is placed in the correct direction, as specified on the plate. Inserting the Cleaning Tray While holding onto the plate, push the plate slightly into the Scanner. It should go in almost entirely, with approximately 1/4 remaining outside.
-
Page 23: Cleaning The Scanner
Using the Scanner Click OK and remove the Plate. Disconnect the cleaning tray by completely pulling out the knob underneath the front tray until it comes to a stop. Disconnecting the Cleaning Tray The Scanner performs a reset (homing cycle). NOTE: If the homing is not performed, turn the scanner off and then back Repeat the cleaning process two more times. -
Page 25: Specifications
Specifications Weight: 45 kg (99 lb) Dimensions (W x D x H): 733 x 655 x 340 mm (39" x 26" x 14") Screen type: Kodak Flexible GP Phosphor Screen CR 140 Screen Pixel Matrix Size Spatial Scan Time Cycle Time... - Page 28 Carestream Health, Inc. Rochester, N.Y. 14608 Kodak is a trademark of Kodak, used under license. © Carestream Health, Inc. 2007 6H8044...
