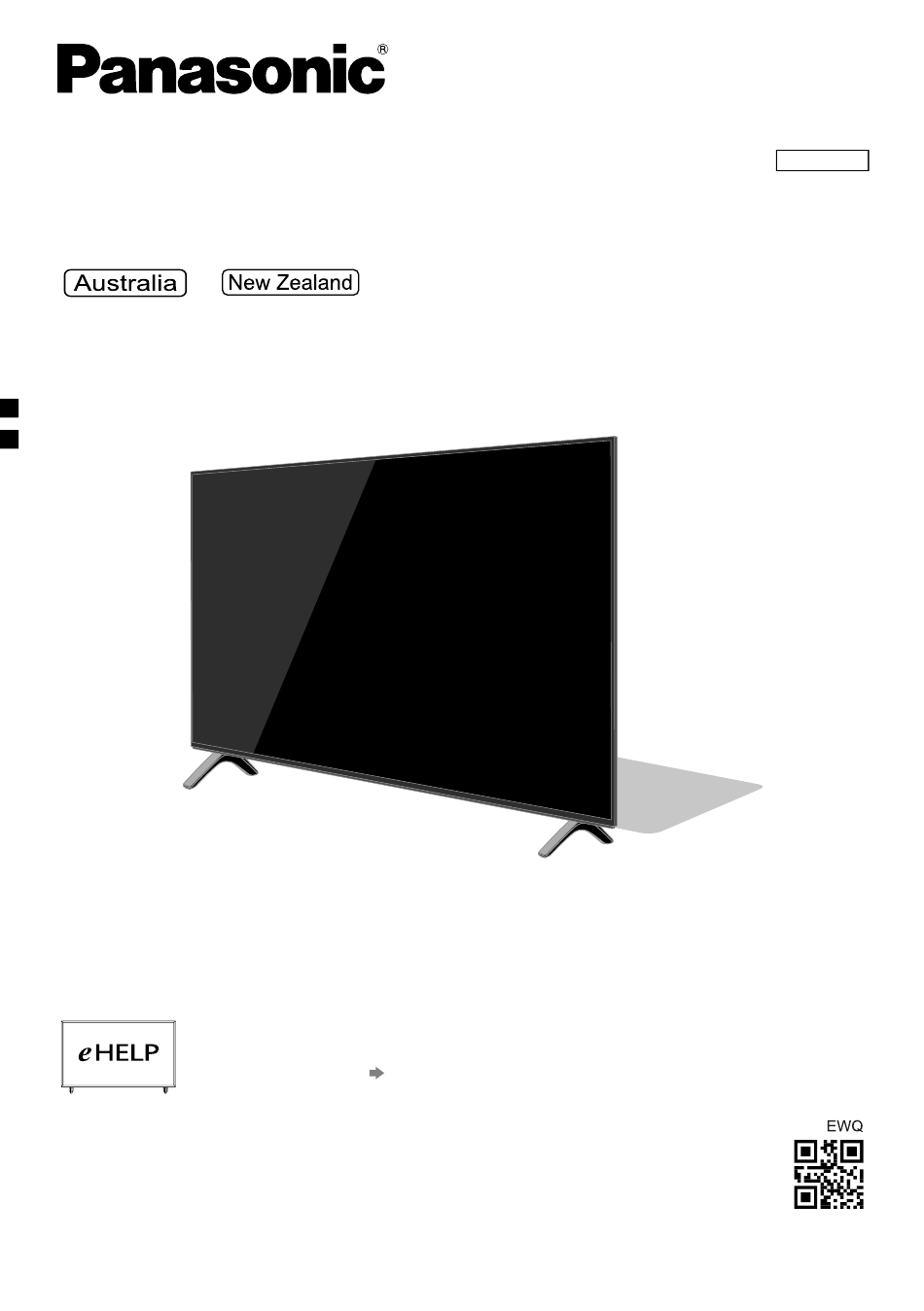

Operating Instructions
LED TV
Model No.
TH-55GX740A TH-49GX740Z
TH-55GX800A TH-55GX740Z
For more detailed instructions, please refer to [eHELP]
(Built-in Operating Instructions).
●
How to use [eHELP]
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and
retain them for future reference.
Please carefully read the "Safety Precautions" of this manual before use.
The images shown in this manual are for illustrative purposes only.
M0419-0
(image: TH-55GX740A)
(p. 17)
English
TQB4GD0214
English
Advertisement
Table of Contents
Related Manuals for Panasonic TH-55GX740A
Summary of Contents for Panasonic TH-55GX740A
-
Page 1: Operating Instructions
● How to use [eHELP] (p. 17) Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. Please carefully read the “Safety Precautions” of this manual before use. -
Page 2: Table Of Contents
For the information of the trademarks, refer to [eHELP] (Search by Purpose > Read First > Before use > Licence). The illustration for TH-55GX740A is used in this manual unless otherwise mentioned. Illustrations shown may be different between models and countries. -
Page 3: Important Notice
Service as well as Additional information may be obtained from MPEG LA, to protect the rights or property of Panasonic. If you wish LLC. to know more about the processing of your information See http://www.mpegla.com. -
Page 4: Safety Precautions
Mains Plug and lead types vary depending on the ● model and countries. Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic ● dealer to perform the setup or installation of approved This TV is designed to operate on AC 220-240 V, wall-hanging brackets. - Page 5 Do not use the pedestal if it becomes warped or and the devices that use 2.4 GHz signal. physically damaged. If this occurs, contact your ■ Ventilation nearest Panasonic dealer immediately. ● Caution During setup, make sure that all screws are securely tightened.
-
Page 6: Accessories
■ Moving the TV Accessories Caution Before moving the TV, disconnect all cables. ● Remote Control At least two people are required to move the TV. Support the TV as shown below to prevent injury that ● N2QAYB001189 may be caused by the tipping or falling of TV (p. -
Page 7: Installing The Tv
■ <Style2> Installing the TV Assembling / Removing the pedestal Preparations Take out the pedestal and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.) ●... -
Page 8: Installing The Wall-Hanging Bracket
Installing the wall- Preventing the TV from falling over It is recommended to secure the pedestal to a furniture hanging bracket as shown to prevent the TV from falling over. ● This information is designed to reduce the risk of injuries caused by the TV falling over. -
Page 9: Connections
Connections Terminals Australia ● External equipment and cables shown are not supplied with this TV. ● Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables. ● Check the terminal type and cable plugs are correct for connection. - Page 10 ■ Aerial New Zealand RF cable Aerial ● For Digital TV, Analogue TV ● Keep RF (aerial) cable away from the mains lead to AV IN avoid and minimise mains interference pickup. ● Do not place the RF cable under the TV. An aerial, correct cable (75 ...
- Page 11 ■ Wireless connection AV devices ■ DVD Recorder / Blu-ray Recorder, etc. Internet environment Built-in wireless LAN Access point Connections for 4K / HDR compatible equipment RF cable HDMI cable DVD Recorder / Blu-ray Recorder, etc. Aerial ■ HDMI cable Set top box 4K / HDR compatible equipment ●...
- Page 12 Other connections ■ DVD Player (COMPONENT equipment) HDMI cable Amplifier with speaker system External equipment (DVD Player, etc.) ● Use HDMI2 to connect the TV to an amplifier which (Viewing) (Listening) has ARC (Audio Return Channel) function. If connecting to an amplifier without ARC function, use DIGITAL AUDIO OUT.
- Page 13 Attaching the cable cover / terminal cover Cable arrangement ● Do not apply load to the cable cover / terminal cover. Fix the cables using the pedestal cover. ● Be careful not to nip the cables between the TV and Pedestal Cover the cable cover / terminal cover.
-
Page 14: Identifying Controls
8 [Option Menu] Identifying Controls ● Easy optional setting for viewing, sound, etc. 9 Coloured buttons Remote Control (red-green-yellow-blue) ● Used for the selection, navigation and operation of various functions. 10 Volume Up / Down 11 Numeric buttons ● Changes channel. Australia ●... - Page 15 ■ Installing / Removing batteries 5 Channel Up / Down Cursor Up / Down (when in the menu system) 6 Volume Up / Down Pull open Cursor Left / Right (when in the menu system) 7 Mains power On / Off switch Hook ●...
-
Page 16: First Time Auto Tuning
Tick the TV signal mode to tune, and then select First time Auto [Start Auto Tuning] : Digital TV Tuning : Digital TV (DVB-T2) : Analogue TV When the TV is turned on for the first time, it will If satellite TV is selected, select your preferred automatically search for available TV channels and give Satellite TV search mode New Zealand... -
Page 17: Watching
Watching TV How to Use eHELP [eHELP] is the detailed operating instructions built into Turn power on the TV, and gives a more detailed explanation for a better understanding of the operation of each feature. (TV) Display [eHELP] (Remote Control) ●... - Page 18 ● To scroll the description (if more than 1 page) While the description is highlighted ● To open the reference screen ( ● To display the menu related to the description (only for some descriptions) (red) ● To check the features of this TV Search by Purpose >...
-
Page 19: Faqs
● Check the mains lead is plugged into the TV and the mains socket. About the inquiry ● Please contact your local Panasonic dealer for The TV goes into Standby mode assistance. ● Auto power standby function is activated. If you make an inquiry from a place where this TV... -
Page 20: Maintenance
Display panel, Cabinet, Pedestal 49-inch model TH-49GX740Z Regular care: 55-inch model Gently wipe the surface of the display panel, cabinet, TH-55GX740A or pedestal by using a soft cloth to remove dirt or TH-55GX740Z fingerprints. TH-55GX800A For stubborn dirt: (1) First clean the dust from the surface. - Page 21 Standby power consumption DIGITAL AUDIO OUT 0.50 W PCM / Dolby Digital, Fibre optic Visible screen size (diagonal) Receiving systems / Band name 49-inch model Satellite TV 123 cm New Zealand 55-inch model Digital satellite services 139 cm Receiver frequency range - 950 MHz to 2150 MHz Display resolution DiSEqC - Version 1.0 3 840 (W) ×...
- Page 22 Security WPA2-PSK (TKIP/AES) WPA-PSK (TKIP/AES) WEP (64 bit/128 bit) Bluetooth wireless technology Standard Compliance Bluetooth 4.2 Frequency Range 2.402 GHz - 2.480 GHz *1: The frequency and channel differ depending on the country. *2: Not all the Bluetooth compatible devices are available with this TV.
- Page 23 Distributors, or Dealers, and only where the products are used and serviced within Australia or its territories. Warranty cover only applies to the services that are carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when the warranty service is requested.
- Page 24 New Zealand WARRANTY - New Zealand only NEW ZEALAND Distributed in New Zealand by Panasonic New Zealand Limited 18 Sir Woolf Fisher Drive, Highbrook, East Tamaki, Private Bag 14911, Panmure, Auckland Tel. 09 272 0100 Customer Care Center Email: Customerservice@nz.panasonic.com www.panasonic.co.nz...
