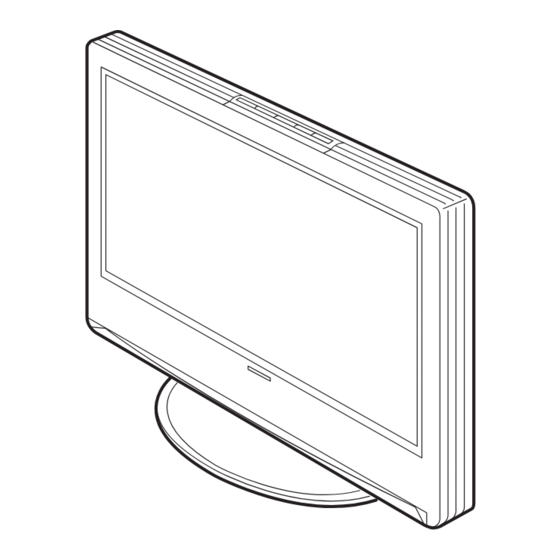

Sony KLV-S23A10 Quick Setup Manual

KLV-S19A10 KLV-S26A10
KLV-S23A10 KLV-S32A10

Quick Setup Guide

Please follow the steps to setup your TV:
1 2
zzzzzzzz
Checking the Connecting Your TV

Supplied Accessories

(See reverse side)
If your product is not working properly
DO NOT RETURN TO THE STORE.
For service and technical assistance
Call our Customer Information Service Center (Toll Free):
1-800-222-SONY (7669) for US residents.
1-877-899-SONY (7669) for Canadian residents.
Sony Corporation © 2005
Printed in Japan
1 Checking the
Supplied Accessories
• Remote control (RM-YA001) (1) and size AA batteries (2)
• 75-ohm coaxial cable (ferrite core attached) (1)
• AC power cord (1)
• AC power adaptor (1) (KLV-S19A10 only)
• HD15-HD15 cable (1)
• Support belt (1), securing screw (1) and wood screw (1)
• Operating Instructions (1)
• Quick Setup Guide (1)
• Leaflet (Installing the Wall-Mount Bracket, KLV-S19A10 only) (1)
• Warranty Card (1)
Inserting Batteries into the Remote Control
Insert two size AA batteries (supplied) by matching the
e
the batteries to the diagram inside the remote control's battery
compartment.
2-589-827-12 (1)
3
zzzzzzzz zzzzzzzz
Running Initial
Setup
2 Connecting Your TV
• Review the following chart to determine which diagram to use to
connect the components in your system:
For these components
or
or
and on
E
or
or
or
• See the "Cables Required" chart that appears with the diagram to
determine which cables you'll need. You may need to purchase
extra accessories, such as cables and splitters, depending on the
components you plan to connect.
• Turn off and unplug all components before making connections.
• If you are connecting a digital cable box, you'll need a special bi-
directional splitter that's compatible with your cable box. Contact
your cable provider for details.
Making Video Connections
Your TV includes Best Video
Performance
several types of video
inputs. Use the inputs
that are available on
your components that
provide the best
video performance, as
shown in the table on
the right.
Additional Connections
4
For best audio performance, connect your digital audio components
using either digital optical or digital coaxial audio connections.
Depending on which components are in your system, you may need
to complete additional connections. For example, if you have a
satellite receiver, you'll need to connect the satellite antenna. If you
have an A/V receiver, you'll need to connect speakers.
Programming
the Remote Control
Notes
• The connection diagrams shown on the reverse side are recommendations only; other
possible solutions may exist. Connections that include an A/V receiver can often be very
complex, so check your A/V receiver's instruction manual for additional details.
• See the Operating Instructions when connecting to a personal computer.
3 Running Initial Setup
1
Press POWER to turn on the TV.
The Initial Setup screen appears.
2
See reverse side Press V or v to select the on-screen display language. Then press
.
A
The message "First please connet cable/antenna" appears.
Note
By default, Auto Program is set to scan cable TV channels.
B
3
Press CH+ to start Auto Program.
Auto Program automatically creates a list of receivable channels.
C
When finished, the lowest numbered channel is displayed. When all
the receivable channels are stored, the "Show/Hide Channels"
settings appear.
D
To scan available VHF/UHF antenna channels instead of the cable
TV channels
E 1
Select Settings in WEGA GATE, then go to Channels settings.
2
Set Cable to Off.
3
F
Start Auto Program by pressing CH+.
To perform Auto Program again, follow the above instructions.
Depending on your signal source, be sure to set Cable to On or Off
accordingly (see Operating Instructions).
Note
The Initial Setup menu will appear each time the TV is turned on until you complete the
scanning for the available channels.
4 Programming the
Connector type
Remote Control
HDMI*
(High-Definition
Multimedia Interface)
Component video* The remote control is preset to operate Sony brand video equipment.
S VIDEO Sony Equipment
DVD/VCR
Composite video
SAT/Cable
RF/Coaxial
Follow the steps below to program your TV's remote control to
* Support 480i, 480p, 720p, 1080i
operate the other video equipment.
Using the code list below, find the three-digit code number for the
manufacturer of your equipment. (If more than one code number is
listed, use the number listed first.)
1
MTS/ POWER
MUTING DISPLAY SAP
1
POWER TV/
SAVING VIDEO
FREEZE
2
2
3
RETURN
WEGA GATE
3
FUNCTION
1
F1
F2
TOP MENU MENU GUIDE SLEEP
To check if the code works
Aim your TV's remote control at the equipment,
MODE TV/SAT and press the green POWER button. If the
SOUND PICTURE WIDE
equipment responds, the programming is
completed. If not, try the next code listed.
Tips
• If no code is input within the above specified time, or an invalid or
• In some cases, you may not be able to program your remote control
• Dead batteries or removing the batteries may cause the
Manufacturer's Codes
DVD Players
Manufacturer Code
Sony 751
General Electric 755
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Panasonic 753
Philips 757
Pioneer 752
RCA/PROSCAN 755
Samsung 758
Toshiba 754
Zenith 760
DVD Changers
Manufacturer Code
Sony 765
Panasonic 766
DVD/VCR Combo Units
Manufacturer Code
Sony 767
Zenith 768
Toshiba 773
Samsung 774
JVC 775
Broksonic 776
Panasonic 777
HDD/DVD Combo Units
Manufacturer Code
Sony 770, 771, 772
5.1ch DVD AV System
Manufacturer Code
Sony (DAV) 601, 602, 603, 604
AV Receivers
Manufacturer Code
Sony 764
VCRs
Manufacturer Code
Sony 301, 302, 303
Admiral (M. Ward) 327
Programmable Code Number
601 (Sony Dream System)
801 (Sony Satellite Receiver)
Press and hold the or FUNCTION button
you want to program on the remote control and
press the button simultaneously. The selected
DISPLAY
FUNCTION button (DVD/VCR or SAT/CABLE)
will flash.
Enter the three-digit manufacturer's code number
using the --9 buttons while the button is lit,
approximately 10 seconds.
Press button.
When the programming is correct, the selected
FUNCTION button will flash twice slowly, and
when not, flashes five times quickly.
incorrect code number is input, the remote control automatically
goes back to the previous setting.
to operate other equipment. In such cases, use the equipment's own
remote control.
programmable codes to be lost and revert back to factory settings.
Reprogramming the codes may be necessary.
Manufacturer Code Manufacturer Code
Aiwa* 338, 344 Scott 312, 313, 321, 335,
323, 324, 325, 326
Audio Dynamic 314, 337
Sharp 327, 328
Broksonic 319, 317
Signature 2000 (M.Ward) 338, 327
Canon 309, 308
SV 2000 338
Citizen 332
Sylvania 308, 309, 338, 310
Craig 302, 332
Symphonic 338
Curtis Mathes 304, 338, 309
Tashiro 332
Daewoo 341, 312, 309
Tatung 314, 336, 337
DBX 314, 336, 337
Teac 314, 336, 338, 337
Dimensia 304
Technics 309, 308
Emerson 319, 320, 316, 317,
318, 341 Toshiba 312, 311
Fisher 330, 335 Wards 327, 328, 335, 331,
332
Funai 338
Yamaha 314, 330, 336, 337
General Electric 329, 304, 309
Zenith 331
Go Video 322, 339, 340
Goldstar 332
Cable Boxes
Hitachi 306, 304, 305, 338
Instant Replay 309, 308 Manufacturer Code
JC Penney 309, 305, 304, 330,
Sony 230
314, 336, 337
Hamlin/Regal 222, 223, 224, 225,
JVC 314, 336, 337, 345,
226
346, 347
Jerrold/G.I./ 201, 202, 203, 204,
Kenwood 314, 336, 332, 337
Motorola 205, 206, 207, 208,
LG 332 218, 222
Oak 227, 228, 229
LXI (SEARS) 332, 305, 330, 335,
338
Panasonic 219, 220, 221
Magnavox 308, 309, 310
Pioneer 214, 215
Marantz 314, 336, 337
Scientific Atlanta 209, 210, 211
Marta 332
Tocom 216, 217
Memorex 309, 335
Zenith 212, 213
Minolta 305, 304
Mitsubishi/MGA 323, 324, 325, 326 Satellite Receivers
Multitech 325, 338, 321
Manufacturer Code
NEC 314, 336, 337
Sony 801
Olympic 309, 308
Dish Network 810
Optimus 327
Echostar 810
Orion 317
General Electric 802
Panasonic 308, 309, 306, 307
Hitachi 805
Pentax 305, 304
Hughes 804
Philco 308, 309
Mitsubishi 809
Philips 308, 309, 310
Panasonic 803
Pioneer 308
RCA/PROSCAN 802, 808
Quasar 308, 309, 306
Toshiba 806, 807
RCA/PROSCAN 304, 305, 308, 309,
Philips 811
311, 312, 313, 310,
329
Samsung 812
Realistic 309, 330, 328, 335,
* If an Aiwa VCR does not
324, 338
work even though you enter
Sansui 314
Samsung 322, 313, 321
the code for Aiwa, enter the
Sanyo 330, 335
code for Sony instead.
