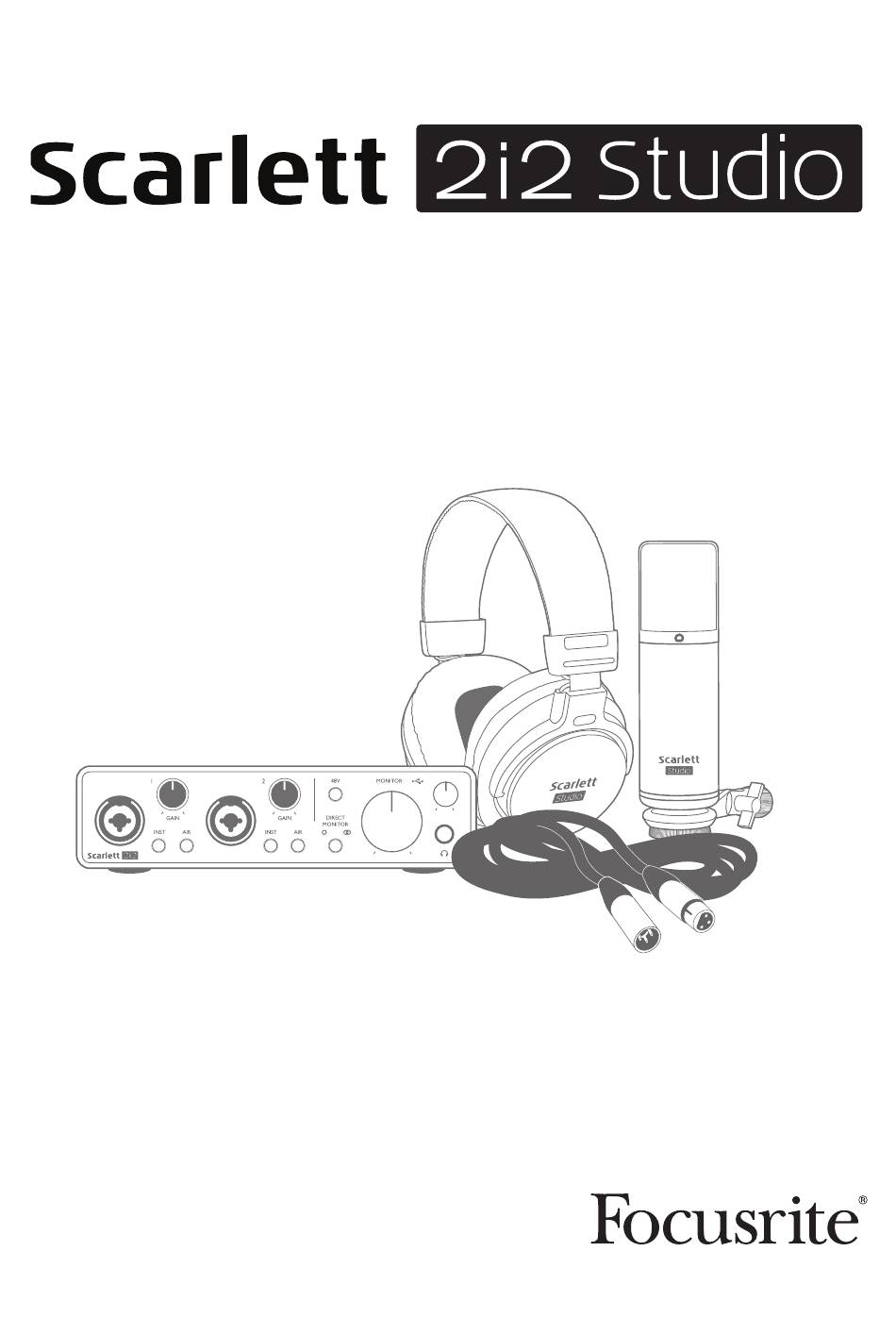

- Page 1 User Guide www.focusrite.com Version 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Introduction . -
Page 3: Overview

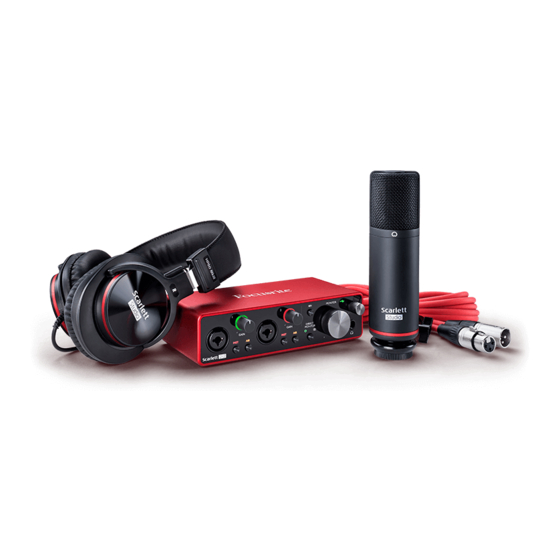

The Scarlett 2i2 hardware interface is the key component in the Scarlett 2i2 Studio; this provides the means of connecting the CM25 MkIII (or other) microphone, musical instruments or line level audio signals to a computer running macOS or Windows. -
Page 4: Box Contents
The easiest way to check that your computer’s operating system (OS) is compatible with the Scarlett 2i2 is to use our online OS Checker at https://customer.focusrite.com/downloads/os. As new OS versions become available over time, you can continue to check for futher compatibility information... -
Page 5: Getting Started
GETTING STARTED With the Third Generation, Scarlett interfaces introduce a new, faster way of getting up and running, using the Scarlett Quick Start tool. All you need to do is connect your Scarlett 2i2 to your computer. Once connected, you will see that the device is recognised by your PC or Mac and the Quick Start tool will guide you through the process from there. - Page 6 Scarlett, or to follow a step by step setup guide based on your choices. Once you have installed the Focusrite Control software to setup and confi gure your interface, the Scarlett will be switched out of MSD mode so that it no longer appears as a Mass Storage Device when connected to your computer.
-
Page 7: Windows Only
Windows only: On connecting your Scarlett 2i2 to your PC, a Scarlett icon will appear on the desktop: (Note that the drive letter may be something other than F:, depending what other devices you have connected to your PC). Double-click on the pop-up message to open the dialogue box shown below: Double-click on “Open folder to view fi les”: this will open an Explorer window:... - Page 8 Double-click “Click Here to Get Started”. This will redirect you to the Focusrite website, where we recommend that you register your device: Click on “Let’s get you started”, and you’ll be presented with a form which will be partly prefilled for you automatically.
-
Page 9: All Users
48 kHz. Once Focusrite Control is installed on your computer, you can work at sample rates up to 192 kHz. If you decide not to download and install Focusrite Control immediately, it can be downloaded at any time from https://customer.focusrite.com/support/downloads. -
Page 10: Audio Setup In Your Daw
Ableton Live Lite are included; these will be available to you once you’ve registered your Scarlett 2i2. If you need help installing either DAW, please visit our Getting Started pages at https://focusrite.com/get-started, where Getting Started videos are available. Operating instructions for Pro Tools | First and Ableton Live Lite are beyond the scope of this User Guide, but both applications include a full set of Help fi les. - Page 11 Once the Scarlett 2i2 is set as the preferred Audio Device* in your DAW, Inputs 1 & 2 and Outputs 1 & 2 will appear in your DAW’s Audio I/O preferences. Depending on your DAW, you may need to enable certain inputs or outputs before use.
-
Page 12: Examples Of Usage
Examples of Usage The Scarlett 2i2 is an excellent choice for several different recording and monitoring applications. Some typical configurations are shown below. Connecting a microphone or instrument RIGHT LEFT This setup illustrates the most typical configuration for recording with DAW software on your Mac or PC. -
Page 13: Recording With A Microphone
Note the Scarlett 2i2 has no “Mic/line” switch – the Focusrite preamplifier stage is automatically configured for a microphone when you plug an XLR into the input, and for a line or instrument when you connect a jack plug. Press the INST button (illuminates red) if you are connecting a musical instrument (a guitar in the example) via an ordinary 2-pole (TS) guitar jack. - Page 14 Microphone Dos and Don’ts A guide to microphone technique is beyond the scope of this User Guide (though many excellent books and online video tutorials on the subject are available), but if you are new to recording with a studio quality microphone, you need to observe a few golden rules. DO use a mic stand.
-
Page 15: Using Direct Monitoring
DAW’s buffer size and processing power of the computer. Connecting Scarlett 2i2 to headphones The Scarlett 2i2 Studio package includes a pair of high quality HP60 MkIII headphones. They are lightweight and durable, and should prove comfortable to wear for extended periods. The headband is adjustable. -
Page 16: Connecting Scarlett 2I2 To Loudspeakers
Connecting Scarlett 2i2 to loudspeakers The ¼” jack outputs on the rear panel can be used to connect monitoring speakers. Self-powered monitors incorporate internal amplifiers with a volume control, and may be connected directly. Passive loudspeakers will require a separate stereo amplifier; in this case, the outputs should be connected to the amplifier’s inputs. -
Page 17: Hardware Features
5. AIR – two switches enabling AIR mode for each input. AIR modifies the frequency response of the input stage to model the classic, transformer-based Focusrite ISA microphone preamps. ‘AIR’ illuminates yellow when the mode is selected. Note that AIR may also be selected from Focusrite Control. -
Page 18: Back Panel
USB LED – illuminates when the unit receives USB bus power and is confirmed by the computer as connected and operating correctly. 8. DIRECT MONITOR – this switch determines how input sources are to be monitored and steps between three Direct Monitoring modes: OFF, MONO and STEREO. When set to OFF, monitoring of input sources is via the DAW;... -
Page 19: Specifications
SPECIFICATIONS Performance Specifications NOTE: All performance figures measured in accordance with the provisions of AES17, as applicable. Clock Source Internal Supported sample rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Microphone Inputs Dynamic Range 111 dB (A-weighted) Frequency Response 20 Hz to 20 kHz ±0.1 dB <0.0012% (minimum gain, -1 dBFS input with 22 Hz/22 kHz... -
Page 20: Physical And Electrical Characteristics
XLR “Combo” type: Mic/Line/Inst (Inputs 1-2) on front panel Mic/Line switching Automatic Line/Instrument switching 2 x front panel switches or via Focusrite Control Shared 48 V phantom power switch for inputs 1 & 2 Phantom power (XLR connections only) AIR function... -
Page 21: Scarlett Cm25 Mkiii Microphone Specifications
Scarlett CM25 MkIII Microphone Specifications Capsule Element Electret Condenser Diameter 20 mm Polar Pattern Unidirectional (cardioid) Performance and Electrical characteristics Sensitivity -36 dB ±2 dB (0 dB = 1 V/Pa at 1 kHz) Frequency Response 20 Hz to 20 kHz Impedance 200 ohms ±30% (at 1 kHz) >10 kohms... -
Page 22: Troubleshooting
Full Terms and Conditions of the Warranty can be found at https://focusrite.com/warranty. Focusrite is a registered trade mark and Scarlett 2i2 and Scarlett 2i2 Studio are trade marks of Focusrite Audio Engineering Limited. All other trade marks and trade names are the property of their respective owners.
