Land Pride 2 Series Operator's Manual

Rotary cutters s/n 944730+
Hide thumbs Also See for 2 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Rotary Cutters
RCB6610 & RCBM6610 Series 2 S/N 944730+
30219
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!

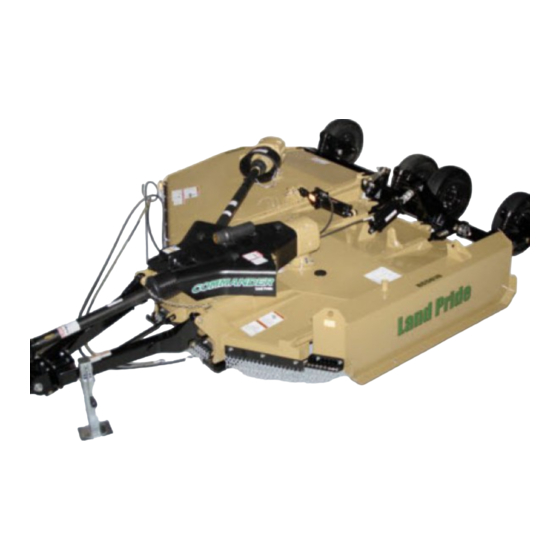

Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French or
Spanish Language, please see your Land Pride dealer.
330-584M
Operator's Manual
Printed 12/12/18
