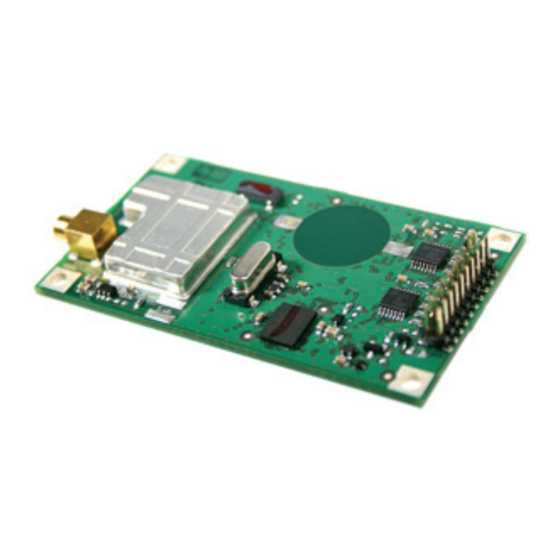

Jupiter 12
GPS receiver module
Data sheet
(TU35-D410 and TU35-D420 series)
LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.
Related products
• Development kit TU10-D007-351
Related documents
• Product brief LA010040
• Development kit: Quick start guide
LA010088
• Development kit: Guide LA010089
• Designer's guide MN002000
• Labmon application note LA010103
• DR receiver: Gyro application note
LA010090
1

Advertisement

Table of Contents
loading

Related Manuals for Navman Jupiter 12

Summary of Contents for Navman Jupiter 12

  • Page 1 LA010088 • Development kit: Guide LA010089 • Designer’s guide MN002000 • Labmon application note LA010103 • DR receiver: Gyro application note LA010090 LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.
  • Page 2 4.3.1 Pin J1-19: 1PPS time mark pulse (TMARK) ...............15 4.3.2 Pin J1-20: 10 kHz clock output (10 kHZ) ................15 5.0 Acronyms used in this document ............17 LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 3: Table Of Contents

    Table 4-3 Jupiter receiver supported RTCM SC-104 data messages .........16 Table 4-4 Jupiter receiver binary data messages ...............16 Table 4-5 Jupiter receiver NMEA v2.01 data messages .............17 LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.
  • Page 4 • user-specifiable visible satellite mask angle • serial data output including Navman binary protocol and selected National Marine Electronics Association (NMEA-0183) v2.1 messages LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 5: Figure 1-1 Jupiter 12 Gps Receiver

    OSX (*) Contact Navman for the latest revision part numbers and optional GPS antenna connector. Table 1-1 Jupiter 12 module descriptions LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 6: Figure 1-3 Jupiter 12 Block Diagram

    EMI filtering & power supply bat. backup to SRAM & RTC +3.3 or 5.0 VDC bat. backup Figure 1-3 Jupiter 12 block diagram LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 7: Figure 1-4 Jupiter 12 Block Diagram With Dead-Reckoning

    (optional) pre-amplifier Jupiter 12 (optional) GPS receiver engine power power/communications interface supply display application processor keypad Figure 1-5 Jupiter receiver application architecture LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 8: Table 2-1 Jupiter Receiver Signal Acquisition

    Note 1: required accuracy of data used for initialised start. Note 2: initial error uncertainties do not apply to cold start. Table 2-1 Jupiter receiver signal acquisition LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 9: Table 2-2 Jupiter Navigational Accuracies

    100 mA at voltages up to +12 V. 3.5.8 Drop: Shipping (in container): 10 drops from NOTE: This circuit requires customer-provided 75 cm onto a concrete floor LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 10: Table 3-1 Jupiter Operational Power Requirements

    The values above reflect power consumption while Navigation solution is still valid. Table 3-2 Standard Jupiter power management table (at 25 LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 11: Figure 3-1. Sae Composite Curve (Random)

    0.50 square 4.00 20.0 Pin No. 1 18.0 5.50 2.30 PCB surface Figure 3-2 The 20-pin interface connector (J1) (measurements are in mm) LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 12: Figure 3-3 Mechanical Drawings Of The Jupiter Gps Receiver Board

    Figure 3-3 Mechanical drawings of the Jupiter GPS receiver board LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 13: Table 4-1 Jupiter Receiver J1 Interface Pin Descriptions

    Note 1: Pins 6, 7, and 9 have dual functions depending on the specific Jupiter receiver configuration. Table 4-1 Jupiter receiver J1 interface pin descriptions LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.
  • Page 14 CMOS low Maximum frequency for the wheel ticks at top external to the board. vehicle speed is approximately 800 Hz. If a vehicle LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 15: Table 4-2 Jupiter Digital Signal Requirements

    0.2 x PWRIN tr, tf input rise and fall time C out max output load capacitance Table 4-2 Jupiter digital signal requirements LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 16: Table 4-3 Jupiter Receiver Supported Rtcm Sc-104 Data Messages

    1360 (*) enabled by default at power-up (**) once at power-up/reset Table 4-4 Jupiter receiver binary data messages LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.

  • Page 17: Table 4-5 Jupiter Receiver Nmea V2.01 Data Messages

    RTCM: Radio Technical Commission for Maritime services SPS: Standard Positioning Service SRAM: Static Random Access Memory TTFF: Time To First Fix UTC: Universal Time Coordinated LA010065D © 2004 Navman NZ Ltd. All rights reserved. Proprietary information and specifications subject to change without notice.
  • Page 18 Navman products are not intended for use in medical, lifesaving or life sustaining applications. Navman customers using or selling Navman products for use in such applications do so at their own risk and agree to fully indemnify Navman for any damages resulting from such improper use or sale.
