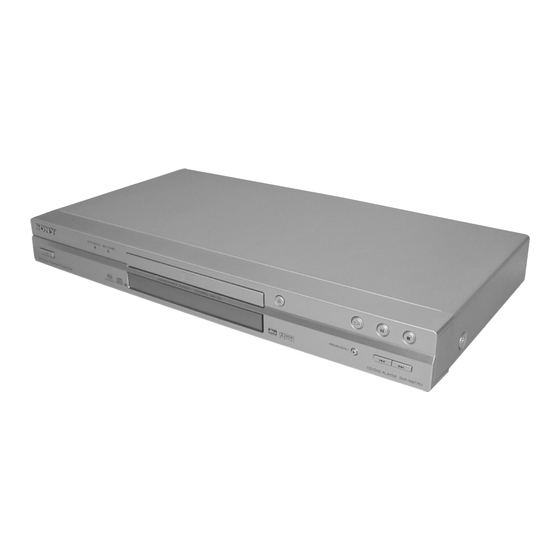

Sony DVP-NS775V Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Sony Manuals
  4. DVD Player
  5. DVP-NS775V
  6. Operating instructions manual
Sony DVP-NS775V Operating Instructions Manual

Sony DVP-NS775V Operating Instructions Manual

Cd/dvd player
Hide thumbs Also See for DVP-NS775V:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Manual
Enlarged version
2-059-561-11(1)
CD/DVD
Player

Operating Instructions

For customers in the U.S.A
Owner's Record
The model and serial numbers are located at the rear of the unit.
Record the serial number in the space provided below. Refer to them
whenever you call upon your Sony dealer regarding this product.
Model No. DVP-NS775V
Serial No.______________
For Customers in Canada
If this product is not working properly, please call 1-877-602-2008 for
Peace of Mind Warranty Replacement service.
For other product related questions please contact our Customer
Information Service Centre at 1-877-899-7669 or write to us at:
Customer Information Service 115 Gordon Baker Road, Toronto,
Ontario, M2H 3R6
DVP-NS775V
© 2004 Sony Corporation
