Makita BJR181 Technical Information

Cordless recipro saw
Hide thumbs Also See for BJR181:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS
Model BJR181 has been developed as the first cordless recipro saw that is
powered by 18V/3.0Ah Li-ion battery.
Whilst having the same basic construction as our AC model JR3050T,
features the additional and original advantages, for example, as follows;
Ergonomic grip best-fitting to overhead application
Two-light type LED job light for more illuminated work-surface
Belt clip
This new product will be available in the following variations.
Model No.
Charger
BJR181Z
BJR181SF
DC18SC
BJR181SFE
BJR181
DC18SC
All models also include the accessories listed below in "Standard equipment".
S
pecification
Voltage: V
Battery
Capacity: Ah
Cell
Max output (W)
Length of stroke: mm (")
No load speed: min-
Max cutting capacities: mm (")
[when cutting with a 300mm blade]
Variable speed
Electric brake
Net weight*: kg (lbs)
*Includes battery BL1830
S
tandard equipment
Recipro saw blade for wood .................................. 1 pc
Recipro saw blade for metal .................................. 1 pc
Note: The standard equipment for the tool shown above may differ from country to country.
O
ptional accessories
Charger DC18SC
Charger DC24SA
Charger DC24SC
BJR181
Cordless Recipro Saw
Battery
type
quantity
No
No
No
1
BL1830
2
No
No
No
BL1830
2
=spm
1
wood
pipe
Li-ion battery BL1830
Assorted recipro saw blades
Plastic
Offered to
carrying case
No
All countries
All countries other than
Yes
USA, Canada,
Mexico, Panama
No
USA, Canada,
Mexico, Panama
Yes
18
3.0
Li-ion
290
28 (1-1/8)
0 - 2,900
255 (10)
dia. 130 (5-1/8)
Yes
Yes
3.7 (8.1)
PRODUCT
L
H
W
Dimensions: mm (")
Length (L)
499 (19-5/8)
Width (W)
91 (3-5/8)
Height (H)
234 (9-1/4)
P 1 /14

Advertisement

loading

Related Manuals for Makita BJR181

Summary of Contents for Makita BJR181

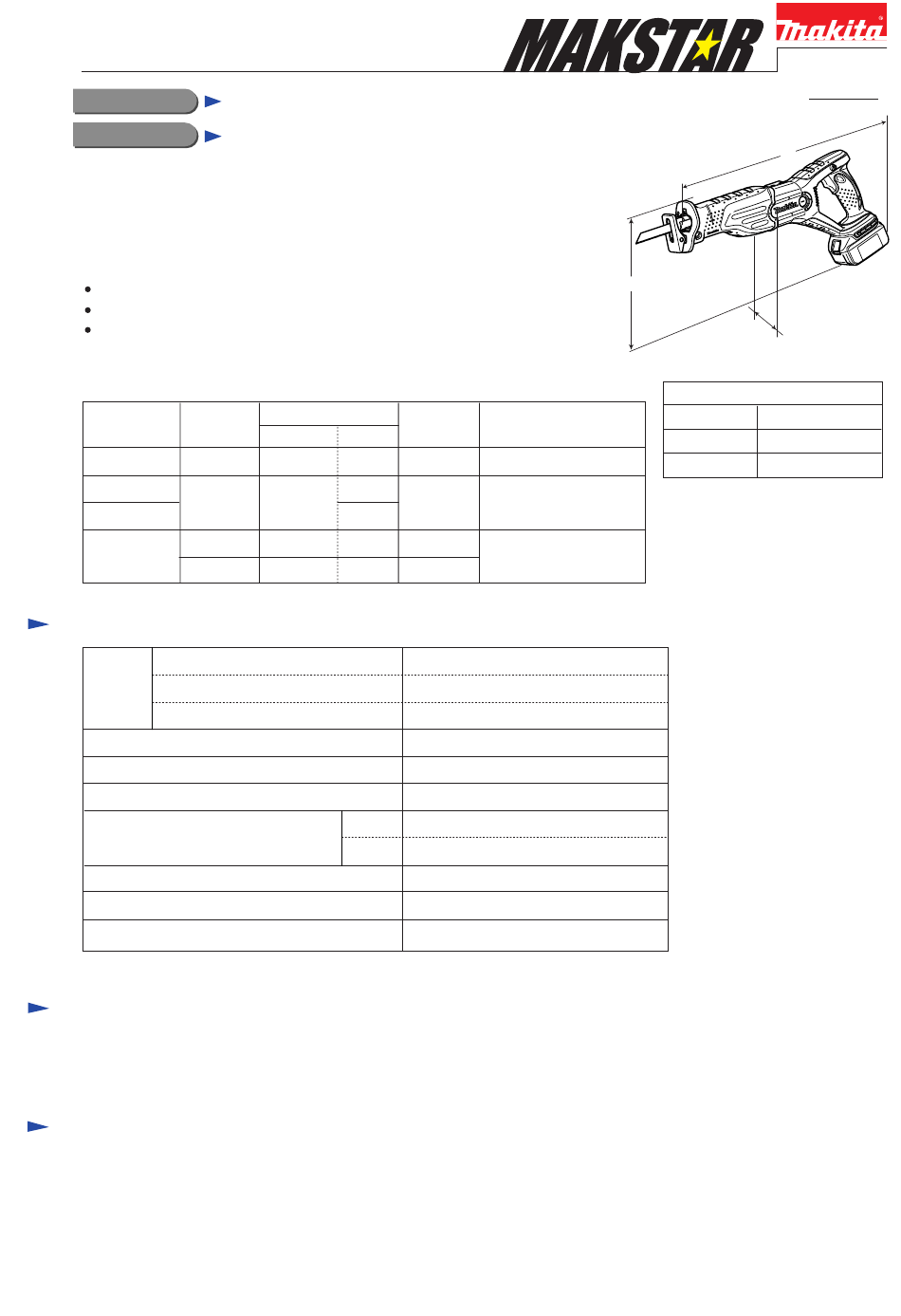

  • Page 1 Description Cordless Recipro Saw ONCEPT AND MAIN APPLICATIONS Model BJR181 has been developed as the first cordless recipro saw that is powered by 18V/3.0Ah Li-ion battery. Whilst having the same basic construction as our AC model JR3050T, features the additional and original advantages, for example, as follows;...
