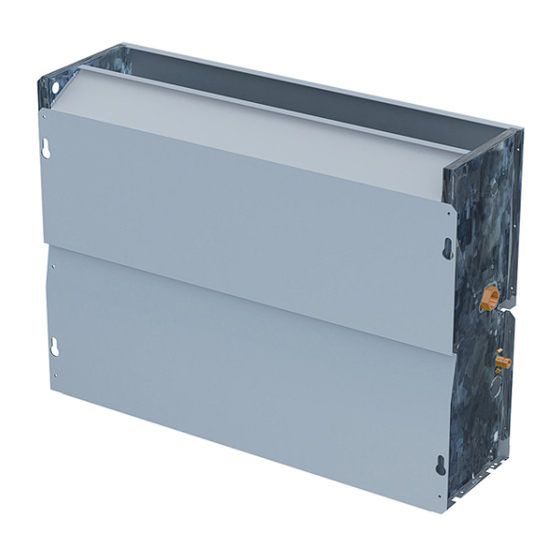

- Page 1 Technical Service Manual TVR LX Systems Floor standing indoor unit with DC Fan Motor 220-240V/50-60Hz/1ph July 2018...
-
Page 2: Table Of Contents
Floor standing indoor unit with DC fan motor Floor standing indoor unit with DC fan motor 1. Feature ....................2 2. Specifications...................3 3. Dimensions....................6 4. Service Spaces ..................7 5. Piping Diagrams..................8 6. Wiring Diagrams ..................9 7. Capacity Tables ..................12 8. Electrical Characteristics ................18 9. -
Page 3: Feature
Cleaning under the unit, where dust tends to accumulate, is considerably easier. 1.5 Easy maintenance Filter is equipped as standard accessory; and it can be removed and cleaned easily due to Trane’s sophisticated design as well as the removable blades. -
Page 4: Specifications
Floor standing indoor unit with DC fan motor 2. Specifications Model 4TVS0007DF000A 4TVS0009DF000A 4TVS0012DF000AA Power supply 220-240V, 1Ph, 50/60Hz Capacity Coolin Input Rated current 0.18 0.21 0.22 Capacity Heatin Input Rated current 0.18 0.21 0.22 Model WZDK100-38GS-2 Type DC motor... - Page 5 Floor standing indoor unit with DC fan motor Model 4TVS0015DF000AA 4TVS0018DF000AA Power supply V- Ph-Hz 220-240V, 1Ph, 50/60Hz Capacity Cooling Input Rated current 0.22 Capacity Heating Input Rated current 0.22 Model WZDK100-38GS-2 WZDK100-38GS-3 Type DC motor Indoor Brand Panasonic/Welling/Shibaur Panasonic/Welling/Shibaura Input motor Output...
- Page 6 Floor standing indoor unit with DC fan motor Model 4TVS0024DF000AA 4TVS0027DF000AA Power supply 220-240V, 1Ph, 50/60Hz Capacity Cooling Input 0.59 Rated current 0.56 Capacity Heating Input 0.59 Rated current 0.56 WZDK100-38GS-3 Model WZDK100-38GS-3 DC motor Type Indoor Panasonic/Welling/Shibaura Panasonic/Welling/Shibaura Brand Input motor Output...
-
Page 7: Dimensions
Floor standing indoor unit with DC fan motor 3. Dimensions 3.1 Concealed Floor-standing Connecting point of refrigerant pipe (Liquid side ΦA) Connecting point of refrigerant pipe (Gas side ΦB) MODEL C (mm) 4TVS0007DF000AA Φ6.4 Φ12.7 4TVS0009DF000AA 4TVS0012DF000AA Φ6.4 Φ12.7 4TVS0015DF000AA 4TVS0018DF000AA Φ9.5 Φ15.9... -
Page 8: Service Spaces
Floor standing indoor unit with DC fan motor 4. Service Spaces Vertical unit for building-in, with air intake from below and air delivery at the top, for installation on a wall. Required clearance for above 3 versions: Model 4TVS ≥200 a (mm) ≥80 b (mm) -
Page 9: Piping Diagrams
Floor standing indoor unit with DC fan motor 5. Piping Diagrams motor flare nut gas side heat exchanger flare nut liquid side... -
Page 10: Wiring Diagrams
Floor standing indoor unit with DC fan motor 6. Wiring Diagrams... - Page 11 Floor standing indoor unit with DC fan motor Horsepower set ENC1 switch code Cooling power output 2200W(0.8HP） 2800W(1.0HP） 3600W(1.2HP） 4500W(1.5HP） 5600W(2.0HP） 7100W(2.5HP） 8000W(3.0HP） Note: Base on different purposes to setting the switch cords on PC panel of indoor electrical control box. Once finish the setting, please cut off the main power, and then input power again, otherwise, setting function could not work.
- Page 12 Floor standing indoor unit with DC fan motor SW5 definition SW6 definition SW7 definition J1,J2 definition 0/1 definition...
-
Page 13: Capacity Tables
Floor standing indoor unit with DC fan motor 7. Capacity Tables 7.1 Cooling TC: total capacity SC: sensible capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature ( WB/DB) Indoor 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Outdoor temperature Unit size ( DB) (kW) 10.0... - Page 14 Floor standing indoor unit with DC fan motor Indoor temperature ( WB/DB) Indoor 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Outdoor temperature Unit size ( DB) (kW) 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0...
- Page 15 Floor standing indoor unit with DC fan motor Indoor temperature ( WB/DB) Indoor 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Outdoor temperature Unit size ( DB) (kW) 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0...
- Page 16 Floor standing indoor unit with DC fan motor 7.2 Heating TC: total capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature ( DB) Outdoor temperature 16.00 18.00 20.00 21.00 22.00 24.00 Indoor Unit size (kW) -19.8 1.46 1.46 1.46 1.46 1.46 1.46 -18.8...
- Page 17 Floor standing indoor unit with DC fan motor Indoor temperature ( DB) Outdoor temperature 16.00 18.00 20.00 21.00 22.00 24.00 Indoor Unit size (kW) -16.7 3.15 3.15 3.15 3.15 3.15 3.15 -14.7 3.25 3.25 3.25 3.25 3.25 3.25 -13.00 -12.60 3.35 3.35 3.35...
- Page 18 Floor standing indoor unit with DC fan motor Indoor temperature ( DB) Outdoor temperature 16.00 18.00 20.00 21.00 22.00 24.00 Indoor Unit size (kW) -19.8 5.04 5.04 5.04 5.04 5.04 5.04 -18.8 5.40 5.40 5.40 5.40 5.40 5.40 -16.7 5.67 5.67 5.67 5.67...
-
Page 19: Electrical Characteristics
Floor standing indoor unit with DC fan motor 8. Electrical Characteristics Indoor Unit Power Supply Model Voltage Min. Max. 4TVS0007DF000AA 50/60 220-240V 0.36 0.026 0.29 4TVS0009DF000AA 50/60 220-240V 0.029 0.32 4TVS0012DF000AA 50/60 220-240V 0.33 0.022 0.26 4TVS0015DF000AA 50/60 220-240V 0.36 0.027 0.29 4TVS0018DF000AA... -
Page 20: Sound Levels
Floor standing indoor unit with DC fan motor 9. Sound Levels 9.1 Test condition Note: 1, during actual operation, these values are normally somewhat higher as a result of ambient conditions. 2, Semi-anechoic chamber conversion value, measured at a point 1m in front of the unit at a height of 1.5m. 9.2 Test value Sound test value dB(A) Model... - Page 21 Floor standing indoor unit with DC fan motor 9.3 Octave Band Level 4TVS0007DF000AA 4TVS0009DF000AA 4TVS0012DF000AA 4TVS0015DF000AA A udibility lim its of A udibility lim its of continuous w hite continuous w hite sound sound O ctave band center frequency （ H z ） Octave band center frequency （...
-
Page 22: Accessories
Floor standing indoor unit with DC fan motor 10. Accessories Name Quantity Shape Usage Owner’s manual Installation manual Pipe insulation material Heat insulation Signal receiver display board Receive signals Mounting screw(ST3.9x12-C-H) Use for pipe connection of engineering Cooper nut installation Mounting screw (ST2.9x10-C-H)
