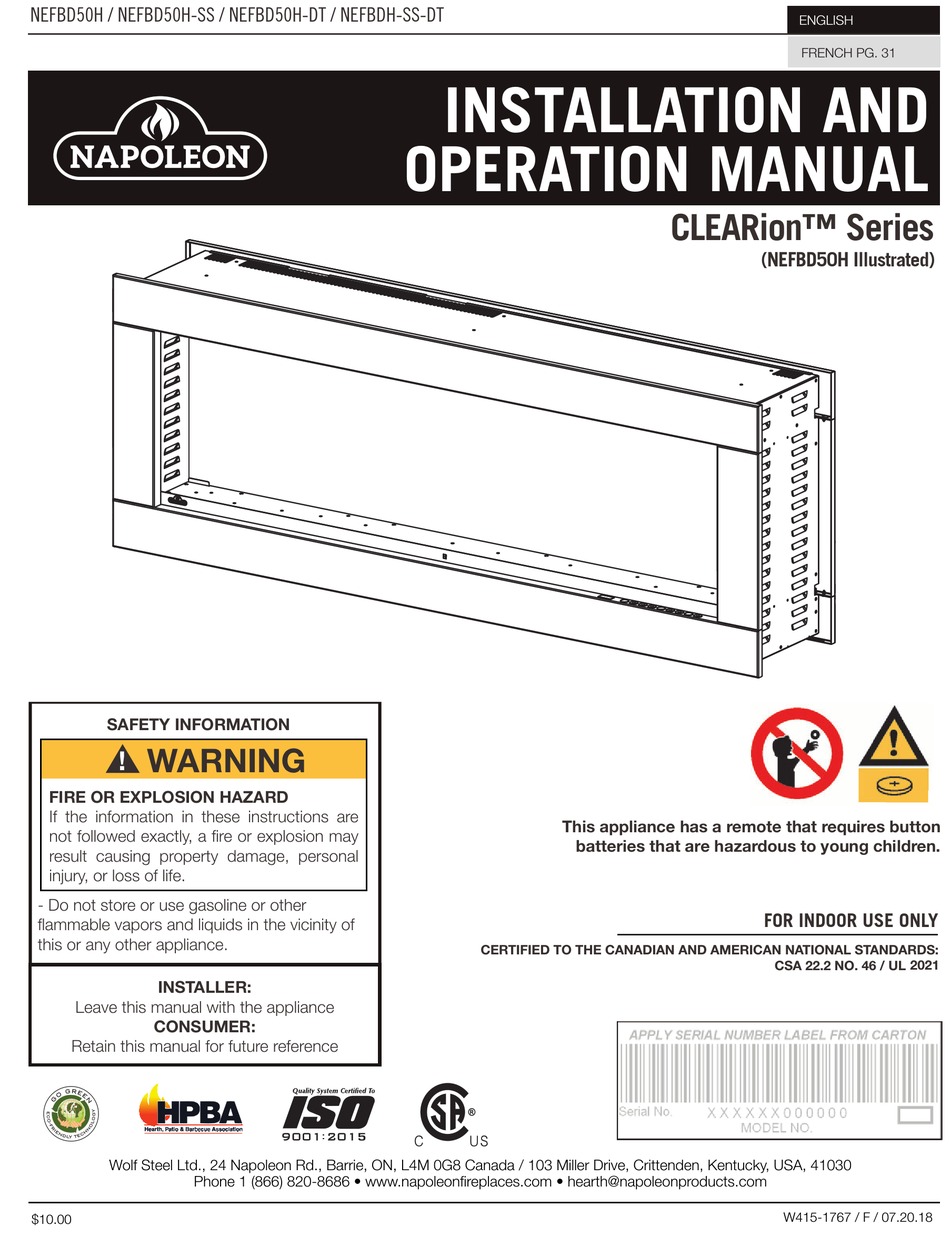

NEFBD50H / NEFBD50H-SS / NEFBD50H-DT / NEFBDH-SS-DT
MULTIPLE PRODUCT CODES (LEAVE BLANK IF N/A)
SAFETY INFORMATION
WARNING
!
FIRE OR EXPLOSION HAZARD
If the information in these instructions are
not followed exactly, a fi re or explosion may
result causing property damage, personal
injury, or loss of life.
- Do not store or use gasoline or other
fl ammable vapors and liquids in the vicinity of
this or any other appliance.
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone 1 (866) 820-8686 • www.napoleonfi replaces.com • hearth@napoleonproducts.com
$10.00
INSTALLATION AND
ADD MANUAL TITLE
OPERATION MANUAL
ADD BUTTON BATTERY WARNING IF APPLICABLE
This appliance has a remote that requires button
batteries that are hazardous to young children.
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
IF INSTALLATION + OPERATION, ADD SERIAL
CSA /
INTERTEK
LOGO
BARCODE LABEL ON THE OWNER'S MANUAL"
CLEARion™ Series
Product Name / Code
(MUST use title from Price Book)
(NEFBD50H Illustrated)
(IF MULTIPLE, _____ ILLUSTRATED)
ADD PRODUCT IMAGE
FOR INDOOR USE ONLY
CSA 22.2 NO. 46 / UL 1278
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD "PLACE
W415-1767 / F / 07.20.18
ENGLISH
FRENCH PG. 31
2021
Advertisement
Table of Contents
Related Manuals for Napoleon CLEARion Series
Summary of Contents for Napoleon CLEARion Series
- Page 1 LOGO BARCODE LABEL ON THE OWNER’S MANUAL” Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone 1 (866) 820-8686 • www.napoleonfi replaces.com • hearth@napoleonproducts.com W415-1767 / F / 07.20.18...
-
Page 2: Safety Information
safety information WARNING • If equipped with a heater, this appliance can be hot when operated and can cause severe burns if contacted. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. •... - Page 3 safety information WARNING • To prevent a possible fi re, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a carpet, where openings may become blocked. • Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or relocatable power tap (outlet/power strip).
-
Page 4: Table Of Contents
table of contents general information dimensions product information general instructions parts list unpacking and testing appliance rating plate information label location installation locating the appliance grounding the appliance minimum clearance to combustibles minimum mantel clearances framing installing the appliance electrical information wiring diagram hard wiring installation 120V hard wire connection... -
Page 5: General Information
model designation 1.0 general information dimensions SIDE VIEW FRONT VIEW standard deep trim trim TOP VIEW depth of appliance * F is the distance between standard trim trim edges. The deep trim reduces this dimension. See table below. depth of appliance deep trim product information... -
Page 6: General Instructions
general information general instructions • Prior to plugging your appliance into an electrical outlet, verify that the house circuit breakers for the outlet are on. • The appliance may emit a slight, harmless odour when fi rst used. This odour is normal and it is caused by the initial heating of internal appliance elements and will not occur again. -
Page 7: Unpacking And Testing Appliance
general information unpacking and testing appliance Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120 volt, 15 amp grounded outlet. -
Page 8: Rating Plate Information
NORTH AMERICA BY WOLF STE NORTH AMERICA BY WOLF ST DÉSIGNÉ AMÉRIQUE DU NORD PAR WOLF STEEL LTD. MADE IN CHINA FABRIQUE EN CHINE WOLF STEEL LTD. 24 NAPOLEON ROAD, SERIAL NUMBER/NO. DE SERIE: NEFBD50 BARRIE, ON, L4M 0G8 CANADA NADA NADA W385-2193 / A This illustration is for reference only. -
Page 9: Installation
2.0 installation installation WARNING • Risk of fi re! The power cord must not be pinched against a sharp edge. Secure cord to avoid tripping or snagging to reduce the risk of fi re, electric shock, or personal injury. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar items. -
Page 10: Grounding The Appliance
installation grounding the appliance This appliance is for use on 120 volts. The cord has a plug as shown in (A). An adapter as shown in (C) is available for connecting three-blade grounding type plugs to two-slot receptacles, as shown in (B). The green grounding plug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. -
Page 11: Framing
installation framing FINISHED WALL important: This measurement includes thickness of finishing materials. Model No. 17 15/16” (45.6cm) 49” (124.5cm) 8” (203.2mm) NEFBD50H NEFBD50H-SS 17 15/16” (45.6cm) 49” (124.5cm) 8” (203.2mm) 17 15/16” (45.6cm) 49” (124.5cm) 4 1/2” (114.3mm) NEFBD50H-DT NEFBD50H-SS-DT 17 15/16” (45.6cm) 49”... -
Page 12: Installing The Appliance
installation installing the appliance note: It is recommended to have the walls of the appliance enclosure be finished (i.e. drywall) to avoid exposed insulation or vapour barrier coming in contact with the appliance. This will ensure clearance to combustibles is maintained. - Page 13 installation 1/4” (6.4mm) Mounting Bracket Installation Template * Measurement not to scale. Measure up 6 1/8” (156mm) from the bottom of the wall sides. Bottom of the Wall Sides W415-1767 / F / 07.20.18...
- Page 14 installation 1/4” (6.4mm) Mounting Bracket Installation Template (Reverse Side) * Measurement not to scale. Measure up 6 1/8” (156mm) from the bottom of the wall sides. Bottom of the Wall Sides W415-1767 / F / 07.20.18...
-
Page 15: Electrical Information
3.0 electrical information electrical information wiring diagram WARNING • Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. NEFBD50H / NEFBD50H-SS / NEFBD50-DT / NEFBD50-SS-DT Wiring Diagram W415-1767 / F / 07.20.18... -
Page 16: Hard Wiring Installation
electrical information 3.2 hard wiring installation WARNING • Turn off the appliance completely and let cool before servicing. Only a qualifi ed service person should service and repair this electric appliance. Hard Wiring Connection If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the household wiring. -
Page 17: 120V Hard Wire Connection
electrical information A. Remove the cover plate by removing the 3 screws (Fig. 1). Set screws aside. Terminal Block Power Cord Assembly Fig. 2 Fig. 1 B. Remove the terminal block from the power cord assembly by removing the 2 screws (Fig. 2). Set terminal block and screws aside;... -
Page 18: 240V Hard Wire Connection
electrical information 240V hard wire connection Loosen the securing screw from the terminal block to remove the cord from the terminal block. REMOVE 2 WIRE JUMPERS IN THE TERMINAL BLOCK. Add a strain relief and feed the supply wires through the 7/8” (22mm) hole from the terminal block. Insert White (N) wire from power supply to the designated (N) slots in the terminal block. -
Page 19: Finishing
4.0 finishing finishing front glass installation / removal WARNING • Before the front trim or glass is removed or installed, unplug the appliance and wait until it is cool to the touch. • Trim can be heavy and fragile. Handle with care. Have 2 people lift the glass up. -
Page 20: Media Installation
finishing media installation There are 2 media options for this appliance: log set and acrylic crystals. The log set assembly comes pre- installed with the appliance and has to be finished with topaz glass (see “log set and topaz glass installation” section). -
Page 21: Operating Instructions Operating Instructions
operating instructions 5.0 operating instructions WARNING • While the appliance is operating, do not remove the trim. This will cause the remote control and touch panel to malfunction. Once the appliance has been plugged into a grounded electrical outlet, it is ready to operate. note: Ensure the house circuit breakers for the power supply are turned on. - Page 22 operating instructions Ember Bed Controls the brightness of the ember bed light. Brightness Note: If the ember bed color is set to C11, the ember bed brightness setting cannot be changed. Settings: b-5 - Brightest b-4 - Bright b-3 - Medium b-2 - Dim b-1 - Dimmest b-0 - Off...
- Page 23 operating instructions Temperature Sets desired temperature. There are 11 temperature settings: Control 64ºF [18ºC] 66ºF [19ºC] 68ºF [20ºC] 70ºF [21ºC] 72ºF [22ºC] 74ºF [23ºC] 76ºF [24ºC] 78ºF [25ºC] 80ºF [26ºC] 82ºF [27ºC] and OFF To switch from ºC to ºF or ºF to ºC, hold the temperature con- trol button for 5 seconds.
-
Page 24: Maintenance
6.0 maintenance wiring diagram WARNING • In preparation for maintenance, always disconnect the power and allow the electric appliance to cool before performing any cleaning, maintenance, or relocation of this electric appliance. Turn controls to off and remove plug from outlet or turn of the house circuit breaker to electric appliance receptacle. •... -
Page 25: Replacement Parts
7.0 replacement parts replacement parts WARNING • Failure to position the parts in accordance with this manual or failure to use only parts specifi cally approved with this appliance may result in property damage or personal injury. Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can be ordered through your Authorized dealer / distributor. -
Page 26: Nefbd50H / Nefbd50H-Ss Overview
replacement parts W415-1767 / F / 07.20.18... -
Page 27: Troubleshooting
8.0 troubleshooting troubleshooting WARNING • Turn off the appliance completely and let cool before servicing. Only a qualifi ed service person should service and repair this electric appliance. symptom problem solution Dim or no fl ame. Flame brightness not selected. See “operation”... -
Page 28: Warranty Warranty
Notwithstanding any provisions contained in the Limited Warranty, Napoleon responsibility under this warranty is defi ned as above, and it shall not in any event extend to any incidental, consequential, or indirect damages. -
Page 29: Service History
10.0 service history W415-1767 / F / 07.20.18... - Page 30 NAPOLEON CELEBRATING OVER 40 YEARS OF HOME COMFORT PRODUCTS 7200, Route Transcanadienne, Montréal, Québec H4T 1A3 24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8 103 Miller Drive, Crittenden, Kentucky, USA 41030 Phone: 1-866-820-8686...
