- Page 1 OPERATION MANUAL ® 128-7935...
-
Page 2: Important Notice
Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”... -
Page 3: Safety Precaution

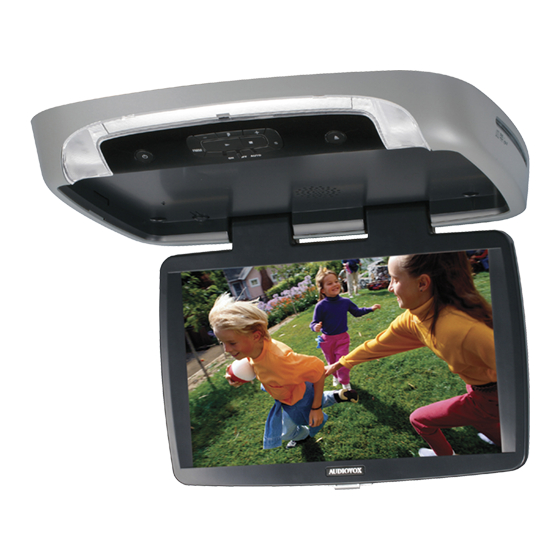

FEATURES Congratulations on your purchase of the Audiovox VOD128 DVD Player with Drop-Down Video / Monitor. The VOD128 • 12.1" TFT (Thin Film Transistor) Active Matrix LCD has been designed to give you and your family many years of (Liquid Crystal Display) Monitor video entertainment in the mobile environment. -
Page 4: Controls And Indicators Diagram (Front View)
CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW) 1. EJECT ( ) Button This Button is used for ejecting discs from the disc Compartment. (Note: Disc can be ejected with the unit turned Off. Vehicle has to running or in ACC position). After the Disc is removed the unit will turn Off after 15-20 seconds. - Page 5 CONTROL FUNCTION DESCRIPTION (FRONT VIEW) 9. POWER ( ) Button The VOD128 has an option that allows the user to select from two Used to turn the system on/off. IR transmit and receive codes (M1 or M2). This feature can be used when using two VOD128s in the same installation or if the 10.
- Page 6 CONTROL FUNCTION DESCRIPTION (SIDE VIEW & BACK VIEW) Side View Side View Back View SMART PORT 1. DVD Disc insertion Slot 1. Headphone Jack For loading and removing discs. Unit will turn On and load Allow the use of wired headphones with a 1/8" (3.5mm) plug disc when disc is inserted.
-
Page 7: Remote Control Operation
(+ or -) is observed. 3) Align the cover tabs with the remote control and slide the cover until it locks. The remote control will operate the VOD128. It is not a universal remote control and will not control equipment from other manufacturers. -
Page 8: Monitor Select
Function control is available on the unit and the remote control. The TV Option will only be displayed and the TV control functions are only available if the optional TV Tuner (P/N PODTVT2) is installed. The monitor select is available on the units which have two system mode control. POWER Button* Press this button to turn the unit ON and OFF. - Page 9 FMM ON / OFF Button* Turns the wireless FM Modulator on or off. Note : Function control is not available for Europe Country. CHANNEL SELECT Button* Selects the wireless FM Modulator Frequency (CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5 88.9MHz, CH6 89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9 89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12 90.3MHz, CH13 90.5MHz, CH14 90.7MHz, CH15 90.9MHz, CH16 91.1MHz) Note : Function control is not available for Europe Country.
- Page 10 AUDIO Button Press to display and select the available AUDIO languages in DVD mode. Each time you press the button, the language changes. Note: The languages for audio vary from disc to disc. SUBTITLE Button Press to display and select the available subtitle language in DVD mode. Each time you press the button, the subtitle language changes. Note: The type and number of languages for subtitle vary from disc to disc.
- Page 11 A-B Button Allow user to repeat the playback from point A to point B. Press A-B buttonOn-Screen DisplayDVD player Once Repeat A- Mark the beginning of the section to repeat (Set point A) Repeat AB Twice Mark the end of the section to repeat (Set point B) 3 times AB Off Cancel the A-B repeat function...
- Page 12 DAY / NIGHT Mode Button This control toggles the unit between “Day” and “Night” LCD illumination modes. In the “Day” mode, the LCD backlit intensity is at maximum. In “Night” mode, the LCD backlit is dimmed to a preset level that is more suitable for low light operation. Note : Founction Control is not available on the existing unit.
-
Page 13: Menu Adjustment
MENU ADJUSTMENT The System Menu Contains feature and option that let you customize your TV system to change the screen mode display, OSD language and source default. Press the SYSTEM MENU button on the remote, the main page of the system menu will appear on screen. Use the cursor buttons to select the desired item in the main page and press the OK button to select. -
Page 14: Osd Language
OSD LANGUAGE This allows the user to select the language for the on-screen display. The user can either select English, Spanish, French or German for the OSD language. SYSTEM MENU OSD LANGUAGE SCREEN MODE ENGLISH OSD LANGUAGE SPANISH SOURCE DEFAULT DVD FRENCH GERMAN SOURCE DEFAULT DVD... -
Page 15: Settings And Adjustments
SETTINGS AND ADJUSTMENTS The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on- screen display, limit playback for children. Using the Setup Menu 1. Press the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram. Language Setup Language Language... -
Page 16: Language Setup
LANGUAGE SETUP Language OSD Language English French Video Subtitle Spanish Language for On-Screen Display Rating Audio German OSD MENU: The OSD MENU setup allows you to select the language for the on-screen display. Italian Misc The user can either select English, French, Spanish, German or Italian for the OSD language. SUBTITLE SETUP Language OSD Language... -
Page 17: Rating Setup
RATING SETUP Rating This item allows you to limit the content of movie playback from G to Adult. The lower the value, the more strict the control. Language Parental : 6.Adult PG – 13 Video Password Rating NC – 17 Misc Adult The rating level can only be changed when the displayed lock is open. -
Page 18: Playing Dvds
Screen Saver Language Load Factory ON -Screen saver will appear Screen Saver Video OFF -Screen saver will not appear Rating Misc Note: The DVD player will enable the Screen Saver mode if the unit is inactive for approximately 2 minutes. Playing DVDs 1. - Page 19 Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc.
- Page 20 Flat Mode: play the entire disc 1/12 Flat Mode function always default On. During the Flat Mode is On, all the data folders with MP3, JPEG & movies Flat Mode Repeat : picture will be play by sequencing. If Flat Mode function default to off, it just can play the selected folder only, Mode Normal other folders are disable.
- Page 21 Edit Mode Program View 1/12 Edit Mode Add to Program Program View Add to Program Notice: Edit Mode/Program view/Add to program function must be used associatively, and they can't be JPEG Preview used at play status. No other than Edit Mode function is On, Program view function and Add to program function can be used.
-
Page 22: Turning The Unit On Or Off
TURNING THE UNIT ON OR OFF 1. Pushing in the screen release button will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use. 2. -
Page 23: Overhead Dome Lights
OVERHEAD DOME LIGHTS The Dome Lights integrated into the VOD128 are controlled by a three position slide switch. Sliding the switch to the ON position will turn the lights ON. The OFF position will prevent the lights from turning ON with the vehicle’s interior lighting, and the auto position will allow the lights to turn ON and OFF with the vehicle’s interior lighting. -
Page 24: Source Feature
AUX / Game Source The VOD128 will accept an audio / video input through the 3 RCA jacks located on the rear of the unit. The audio / video device could be a video game system, video camera, or other input device. - Page 25 The Game Controller transmits to the VOD128 with two infrared transmitters located on the front of the Game Controller. The Game Controller must be pointed toward the VOD128 for correct operation. Press the source button on the remote control or the unit until AUX/GAME* is displayed.
-
Page 26: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Verify that the batteries in the remote are fresh. IR remote inoperative Verify that the remote sensor eye is not obstructed. If monitor is set to M1, press M1 button on remote; If monitor is set to M2, press M2 on remote. - Page 27 PROBLEM SOLUTION The icon ( ) appears on screen The feature or action cannot be completed at this time because: 1. The disc’s software restricts it. 2. The disc’s software doesn’t support the feature (e.g., angles) 3. The feature is not available at the moment. 4.
-
Page 28: Replacement Parts
REPLACEMENT PARTS SPECIFICATIONS Remote Control 136-4427 LCD Backlighting Edge Light Tube Resolution 2400 x 480 Pixels 1, 152, 000 Operation Temperature 32 ~131º F (0 ~ 55º C) Storage Temperature -4 ~ 158º F (-20 ~ 70º C) Backlit life 30,000 Hours Video Display System NTSC / PAL... -
Page 29: 12 Month Limited Warranty
Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part therof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 30 © 2006 Audiovox Electronics Corp., Hauppauge, NY 11788 128-7935...
