Technical Instructions
599 Series
2-Way Ball Valves
Description
Features
Application
Product Numbers
Accessories/Kits

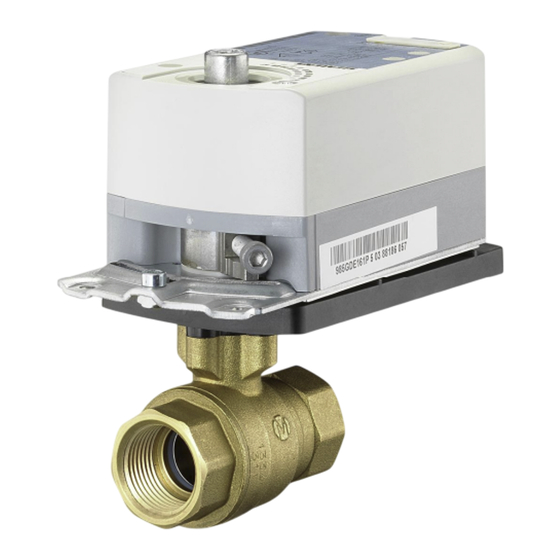

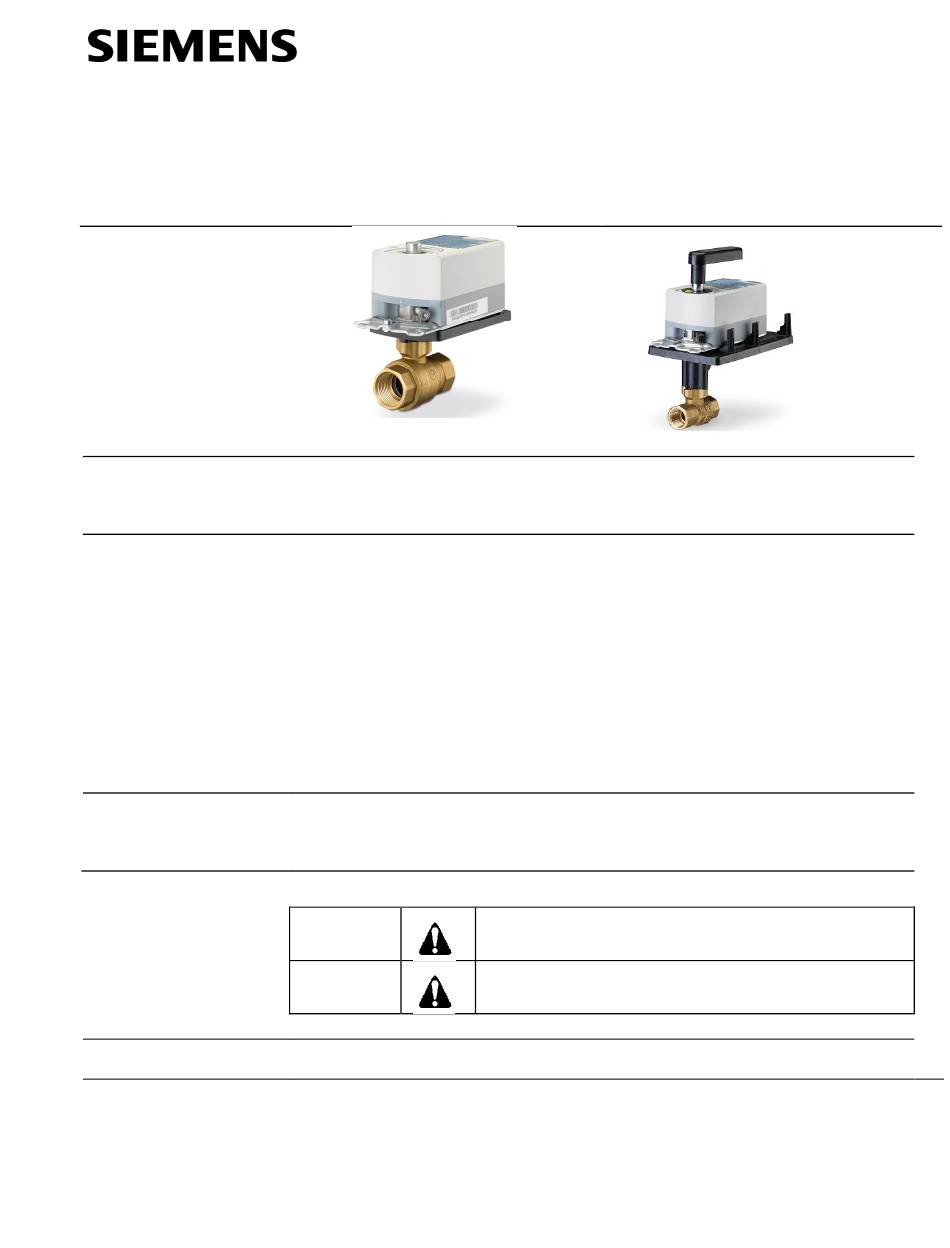

The 599 Series 2-way Ball Valves are coupled with OpenAir™ actuators to provide
equal percentage flow control. The ball valves are 1/4-turn rotary control valves and
are available in 1/2-inch to 2-inch line sizes.
·
ANSI 250 valve body rating.
·
200 psi close-off with ANSI Class IV leakage for all line sizes and actuators.
·
Available with chrome-plated brass ball and brass stem or
stainless steel ball and stem.
·
Blow-out proof stem withstands high pressure.
·
Universal mounting plate.
·
Actuator and plate can be rotated (90 degree increments).
·
Standoffs provide a thermal barrier between the actuator and the mounting
plate.
·
Operating handle for manual operation.
Ball valves can control hot or chilled water and up to 50% water-glycol solution in
air handling units, convectors, fan coil units, unit conditioners, radiators, and reheat
coils.
WARNING:
CAUTION:
See Error! Reference source not found. through Table 12.
599-10078
Ball Valve Bracket Kit
(includes bracket, mounting screws, shaft and handle)
599-10080
Ball Valve Weather Shield
(provides NEMA 3R protection)
Technical Instructions
Document No. 155-703P25
Personal injury or loss of life may occur if you do not
perform a procedure as specified.
Equipment damage may occur if you do not perform a
procedure as specified.
VF 599-9
February 4, 2016
