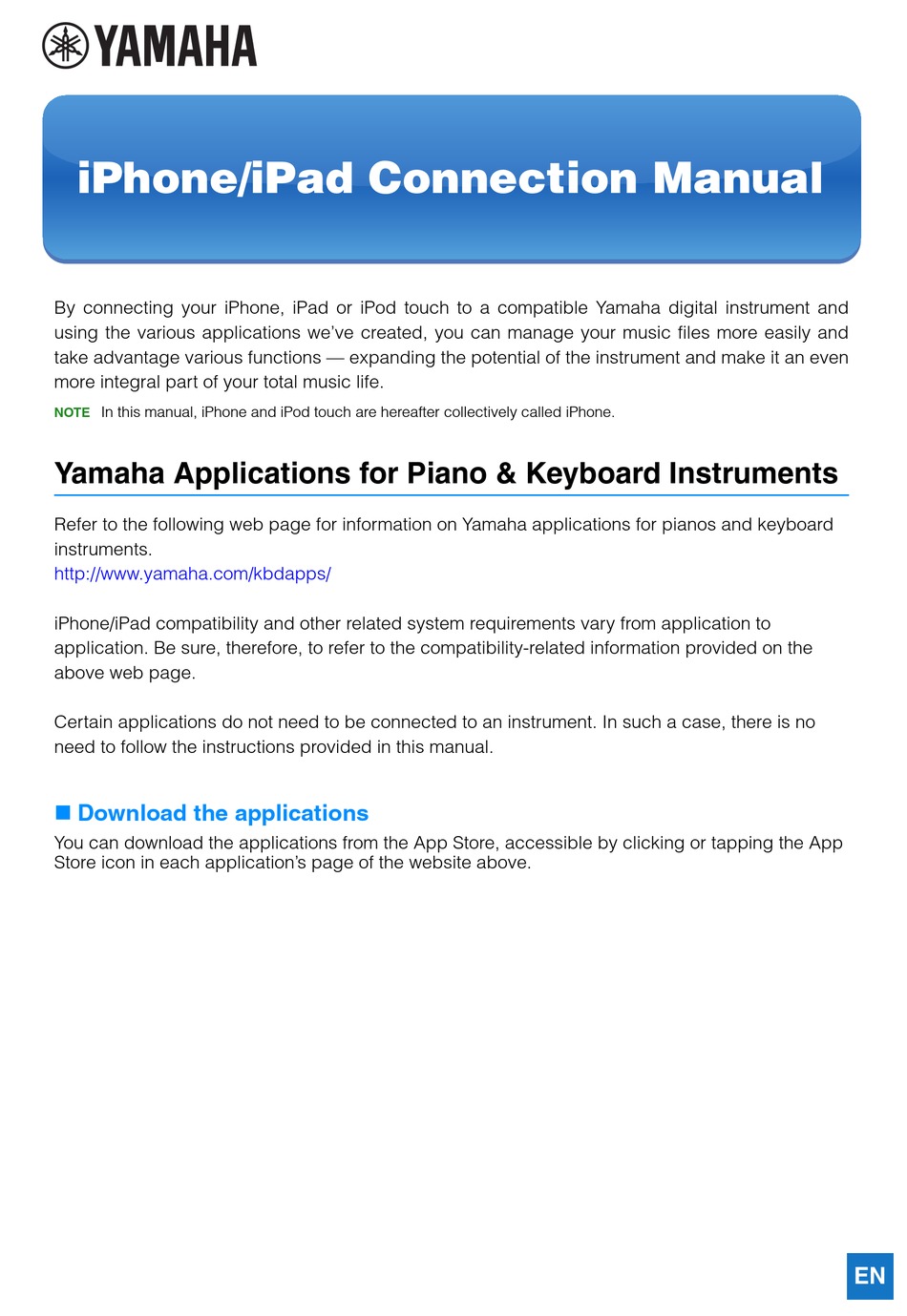

iPhone/iPad Connection Manual
By connecting your iPhone, iPad or iPod touch to a compatible Yamaha digital instrument and
using the various applications we've created, you can manage your music files more easily and
take advantage various functions — expanding the potential of the instrument and make it an even
more integral part of your total music life.
In this manual, iPhone and iPod touch are hereafter collectively called iPhone.
NOTE
Yamaha Applications for Piano & Keyboard Instruments
Refer to the following web page for information on Yamaha applications for pianos and keyboard
instruments.
http://www.yamaha.com/kbdapps/
iPhone/iPad compatibility and other related system requirements vary from application to
application. Be sure, therefore, to refer to the compatibility-related information provided on the
above web page.
Certain applications do not need to be connected to an instrument. In such a case, there is no
need to follow the instructions provided in this manual.
Download the applications
You can download the applications from the App Store, accessible by clicking or tapping the App
Store icon in each application's page of the website above.
EN
Advertisement
Related Manuals for Yamaha CVP-709
Summary of Contents for Yamaha CVP-709
-
Page 1: Yamaha Applications For Piano & Keyboard Instruments
Connection Manual By connecting your iPhone, iPad or iPod touch to a compatible Yamaha digital instrument and using the various applications we’ve created, you can manage your music files more easily and take advantage various functions — expanding the potential of the instrument and make it an even more integral part of your total music life. -
Page 2: Table Of Contents
Contents Yamaha Applications for Piano & Keyboard Instruments ......1 NOTICE ......................3 Information ....................3 Determining the Connection Type .............. 4 Connection ....................8 Troubleshooting Problems with Wireless LAN Connections ....14 Glossary of Terms ..................15 About Using BSD-Licensed Software ............16... -
Page 3: Notice
• Copying of the reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of the manufacturer. • Yamaha makes no representations or warranties with regard to the use of the documentation and cannot be held responsible for the results of the use of this manual. -
Page 4: Determining The Connection Type
6.1.5 or later 6.1.5 USB TO A or C B or D A or C B or D Yamaha HOST Instrument MIDI Wireless connection iPhone/iPad/iPod touch Bluetooth 4.0 iOS 8.0 or later iOS 4.3 or later USB Wireless LAN Adaptor... - Page 5 Connection B For connection instructions, see page iPad iPhone USB TO HOST USB Cable Camera Connector * * The Camera Connector is included in the Apple iPad Camera Connection Kit. Connection C For connection instructions, see page MIDI data only; audio signal not supported. NOTE iPad iPhone...
- Page 6 Connection E For connection instructions, see page MIDI data only; audio signal not supported. NOTE iPad iPhone MIDI THRU i -MX1 MIDI Lightning to 30-pin MIDI MIDI MIDI MIDI Adapter Please make sure that i-MX1 MIDI OUT terminal is connected to the MIDI IN terminal of the instrument, and the i-MX1 MIDI IN terminal to the MIDI OUT terminal of the instrument.
- Page 7 Connection H For connection instructions, see page If the wireless LAN function is included on the instrument, the USB Wireless LAN Adaptor is not required. iPad USB Wireless iPhone LAN Adaptor Connection I For connection instructions, see page MIDI data only; audio signal not supported. NOTE iPad iPhone...
-
Page 8: Connection
Note that iPhone and iPad devices running iOS 6 or later may, on rare occasions, fail to recognize the i-MX1. If this should occur, update the firmware of the i-MX1 to a new version according to the instructions in the attached PDF in the Yamaha website i-MX1 product page. Connecting with Wireless LAN via an Access Point Required devices •... - Page 9 Automatic Setup by WPS If your access point supports WPS, you can easily connect the instrument to access point by WPS, without making settings, such as key input, etc. Check whether your access point supports WPS by referring to the owner’s manual for the access point you NOTE are using.
- Page 10 Press the WPS button on your access point within two minutes after step 1 above. Press the WPS button on your access point. When the connection to the wireless network is completed, the LED lamp of the adaptor lights, and then flashes during communication over the network.
- Page 11 The connection between the instrument and the access point is complete. Proceed to step 6 on page 12 to connect the access point and iPhone/iPad. If you cannot find the desired network on the display or you want to set by a method other than described above, follow the instructions in “Manual Setup”...
- Page 12 Connect the iPhone/iPad to the access point. Call up the Wi-Fi display on your iPhone/iPad by tapping Settings Wi-Fi. Turn ON the Wi-Fi. From the network list shown on the display, tap on the network to which you connected your instrument in step 5. If the key is required, input the key, then connect.
- Page 13 Connect Directly via the Wireless MIDI Adaptor Make sure that the power to the connected musical instrument is turned off. Quit any open application software on your iPhone/iPad. Connect the Wireless MIDI Adaptor to the instrument. For the proper order, carefully follow the indicated instruction steps for each connection type. Turn on the instrument.
-
Page 14: Troubleshooting Problems With Wireless Lan Connections
Troubleshooting Problems with Wireless LAN Connections Factors such as electromagnetic interference can result in disconnection, recording or playback stopping, and other similar problems. In such a case, please try to resolve the problem using the following countermeasures. The term “access point” below refers to any device that can function as a router. NOTE Connection not Connection via... -
Page 15: Glossary Of Terms
A communications business that offers Internet connection services. In order to connect to the Internet, it is necessary to contract to a provider. Router A device that allows multiple devices (e.g., computers, your Yamaha instrument) to share the same Internet connection. Security setting Protects data passed from various access points from being intercepted from an unauthorized person/device. -
Page 16: About Using Bsd-Licensed Software
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Manual Development Group © 2012 Yamaha Corporation Published 08/2017 MW-I0 iPhone/iPad Connection Manual...
