MXW
Quick Setup

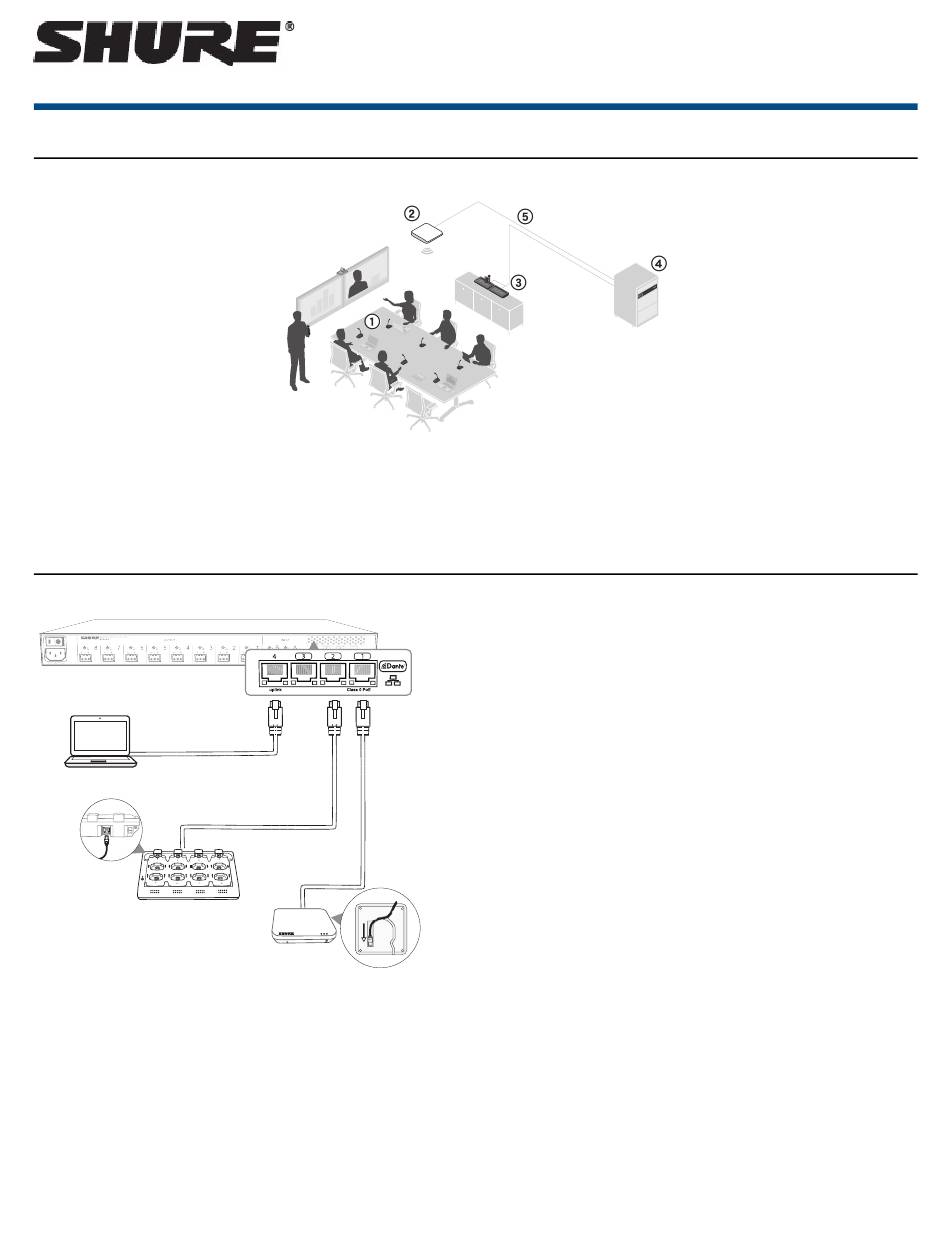

MXW Wireless System
① Wireless Microphones
② System processor and wireless transceiver
③ Microphone linking and charging station
④ Analog output device with gigabit network switch
⑤ Shielded Cat5e cables (not included)
Connect the System
MXWANI
Cat5e shielded cables
Class 0 PoE
©2017 Shure Incorporated
1/10
MXWAPT
