Sprint Magic Box Voice Amp Quick Start Manual

Sprint Magic Box Voice Amp

Setup Instructions

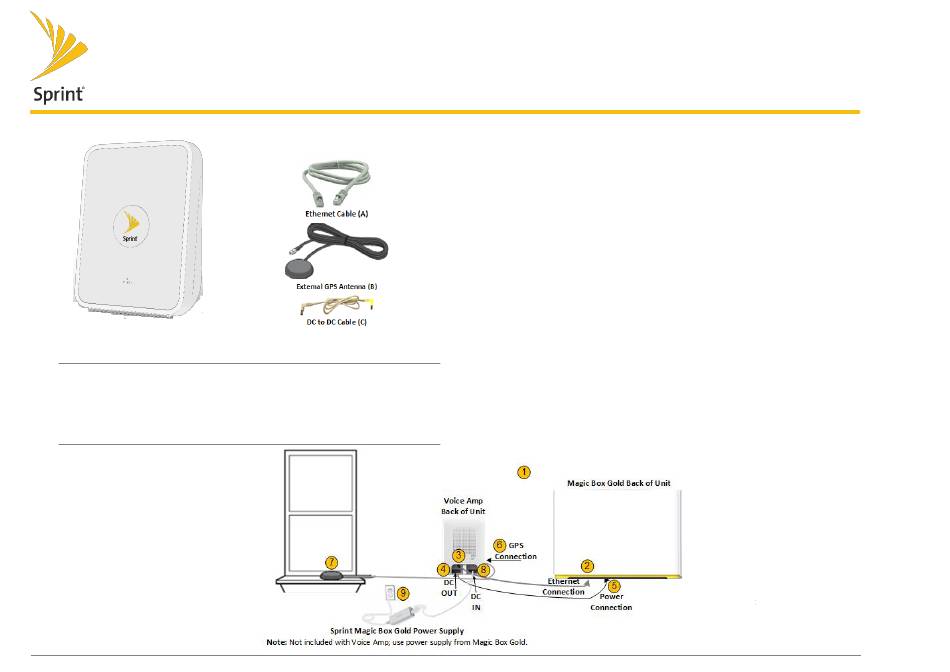

Check that all these components are in the box:
Sprint Magic Box
Voice Amp
Tips

The Voice Amp works with the Magic Box Gold only.

Call in to Care to activate the Magic Box Gold Ethernet capability before installing
the Voice Amp.

Use the same window as the Magic Box Gold for the Voice Amp – if moving both to
a new window do a Factory Data Reset (from the menu) on the Magic Box Gold.
NOTE: You will also need
a working electrical outlet
NOTE: The Magic Box Gold power supply
will be used to power the Voice Amp.

Quick Start Guide

Install your Sprint Magic Box Voice Amp
NOTE: This guide is intended to define how to connect the
to the Sprint Magic Box Gold.
1. Unplug the Sprint Magic Box Gold from power. Turn the Sprint Magic Box Voice Amp to
expose the back of the unit. Place the Sprint Magic Box Voice Amp along-side the Sprint
Magic Box Gold.
2. Connect one end of the Ethernet cable (A) to
connection port under the device.
3. Connect the other end of the Ethernet cable (A) to Ethernet connection port of the Sprint
Magic Box Voice Amp.
4. Connect the DC to DC cable (C) to the DC Out on back of the Sprint Magic Box Voice
Amp (this will be the white connector of the DC cable).
5. Connect the GOLD end of the DC to DC cable (C) to
connection port under the Magic Gold Box device.
6. Connect the External GPS antenna (B) to the GPS connection port on the side of the
Sprint Magic Box Voice Amp, under the cap.
7. Place the GPS antenna base on a flat surface next to a closed window.
8. Plug the Sprint Magic Gold Box power supply cable (provided with the Magic Box Gold)
into the DC IN port of the Sprint Magic Box Voice Amp.
9. Plug the other end of the Sprint Magic Box Gold power supply cable into an available
electrical outlet. (We recommend a surge protected outlet)
NOTE: The Sprint Magic Box Gold must be connected to the Sprint network in order for the
Sprint Magic Box Voice Amp to work.
Sprint Magic Box Voice Amp
the Sprint Magic Box Gold Ethernet
the Sprint Magic Box Gold DC power
