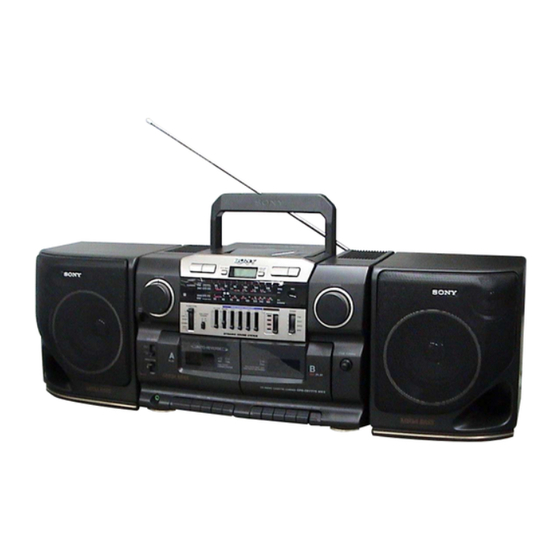

3-864-133-11(1) CD Radio Cassette-Corder Operating Instructions CFD-CD777S CFD-CD777L 1998 by Sony Corporation...
Page 2
Warning To prevent fire or shock hazard, do not expose the player to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Warning Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Table of contents Basic Operations 4 Playing a CD 6 Listening to the radio 8 Playing a tape 10 Recording on a tape 12 Dubbing The CD Player 14 Using the display 15 Locating a specific track 16 Playing tracks repeatedly (Repeat Play) 17 Creating your own program (Program Play)
Basic Operations Playing a CD FUNCTION LINE IN RADIO DUBBING TAPE CD/RADIO Basic Operations For hookup instructions, see pages 20 – 22. Set FUNCTION to CD. Press 6 PUSH OPEN/CLOSE down to open the lid of the CD compartment and place a CD on the CD compartment.
Page 5
Press ^ (( on the remote). The player plays all the tracks once. During operation, the level meter shows the frequency level of the sound. Adjusting the volume will not affect the level meter. Track number Use these buttons for additional operations FUNCTION =, + VOLUME...
Listening to the radio FUNCTION LINE IN RADIO DUBBING TAPE CD/RADIO CFD-CD777S CFD-CD777L BAND BAND TUNING FINE TUNING Basic Operations For hookup instructions, see pages 20 – 22. Set FUNCTION to RADIO. Set BAND to select the band you want.
Page 7
Tips • During operation, the level meter shows the frequency level of the sound. Adjusting the volume will not affect the level meter. • If the FM broadcast is noisy, set ISS•FM MODE at the rear to “MONO”. Radio will play in monaural.
Playing a tape FUNCTION LINE IN RADIO DUBBING TAPE CD/RADIO STOP/EJECT PLAY Basic Operations For hookup instructions, see pages 20 – 22. Set FUNCTION to TAPE•CD/ RADIO OFF. Press p6 to open tape compartment and insert a recorded tape. Use TYPE I (normal) tape only.
Page 9
Note During playback, do not press ), 0 or ( on the other deck as this causes excessive wow and flutter. Tips • During operation, the level meter shows the frequency level of the sound. Adjusting the volume will not affect the level meter.
Recording on a tape STOP/EJECT FUNCTION LINE IN RADIO DUBBING TAPE CD/RADIO FUNCTION LINE IN RADIO DUBBING TAPE CD/RADIO FUNCTION LINE IN RADIO DUBBING TAPE CD/RADIO Basic Operations For hookup instructions, see pages 20 – 22. Press p6 to open the tape compartment on deck B and insert a blank tape.
Page 11
Start recording. Deck B Press r on deck B (( is depressed automatically). Notes • During recording, do not press ), 0 or PLAY on deck A as this causes excessive wow and flutter. • While recording from the built-in microphone (MIC), no sound comes from the speakers or the headphones.
Dubbing STOP/EJECT FUNCTION LINE IN RADIO DUBBING TAPE CD/RADIO HIGH SPEED DUBBING Basic Operations For hookup instructions, see pages 20 – 22. Insert a recorded tape into deck A and a blank tape into deck B. With the side you want to record on facing you Set FUNCTION to DUBBING.
Page 13
Deck A PLAY Deck B Note During dubbing, do not set FUNCTION or press HIGH SPEED DUBBING as this causes excessive wow and flutter. Tips • Adjusting the volume or the audio emphasis (see page 24) will not affect the recording level. •...
The CD Player Using the display You can check information about the CD using the display. The CD Player Checking the total track number and playing time Check the display in stop mode. Total playing time Total track number Checking the remaining time Press DISPLAY (DISPLAY/ENTER on the player) while playing a CD.
Locating a specific track You can quickly locate any track using the number buttons. You can also find a specific point in a track while playing a Note You cannot locate a specific track if “SHUF REP” or “PGM” is lit in the display.
Playing tracks repeatedly (Repeat Play) You can play tracks repeatedly in normal, shuffle or program play modes (see page 17). Press and hold LOOP on the remote during play to repeat a selected part of a CD. When you release LOOP, the player returns to normal play.
Creating your own program (Program Play) You can arrange the playing order of up to 20 tracks on a CD. On the player 1 Set FUNCTION to 2 Press PLAY MODE until “PGM” appears in the display. 3 Press = or + then press DISPLAY/ENTER for the tracks you...
Page 18
Creating your own program (Program Play) (continued) Tips • You can play the same program again, since the program is saved until you open the CD compartment or switch FUNCTION. • The current program will be erased if you switch FUNCTION or open the CD compartment.
The Tape Player Recording through a microphone/Using as a PA system u s i n g s o u n d r e c o r d c a n Y o u s u p p l i e ( n o t m i c r o p h o n e y e r...
Setting Up Hooking up the system Make sure you turn off the power before making any connections. Tips • To detach the speakers, unlock speaker (see B on the diagram) and slide the speaker box all the way up and away from the player.
Page 21
Insert one end of the supplied AC power cord to the AC IN socket located at the rear of the player, and the other end to the wall outlet. CFD-CD777S only: Adjusting the voltage Be sure to set the VOLTAGE SELECTOR (at the rear) to your local power supply.
Page 22
Hooking up the system (continued) Replace the batteries when the OPR/BATT indicator dims or when the player stops operating. Replace all the batteries with new ones. Before you replace the batteries, be sure to take out the CD from the player. Setting Up 3 Inserting batteries into the remote Insert two R6 (size AA) batteries (not supplied)
Before making connections, be sure to turn off the power of each equipment, and set FUNCTION to TAPE•CD/RADIO OFF. Connect a component to the player. TV, VCR, cassette player/ recorder, etc. Audio connecting to line out jack cable (not supplied) Set FUNCTION to TV/LINE IN and play the connected component.
Adjusting the audio emphasis (DYNAMIC SOUND SYSTEM) You can adjust the audio emphasis of the sound you are listening to. Note When adjusting the 5 BAND GRAPHIC EQUALIZER, be sure to set the PRESET MODE selector to MANUAL. The graphic equalizer will not work in any other position.
“Specifications”) and use the supplied AC power cord; do not use any other type. The voltage selector is located at the rear of the player (CFD-CD777S only). • The player is not disconnected from the AC power source (mains) as long...
Page 26
Precautions (continued) Notes on CDs • Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out. • Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. •...
Troubleshooting Symptom The power is not on. There is no audio. “no disc“ lights in the display even when a CD is in place. The CD does not play. The sound drops out. The audio is weak or has poor quality.
Page 28
After trying the above remedies, if the player still does not function properly, unplug the AC power cord and remove all the batteries. After all the indications in the display disappear, plug the power cord and insert the batteries again. If the problem persists, please consult your nearest Sony dealer. Additional Information Remedy •...
Maintenance Cleaning the lens If the lens becomes dirty, it may cause a skipping of sound during CD operation. Clean with a commercially available blower. Cleaning the tape heads and tape path Wipe the heads, the pinch rollers and the capstans with a cleaning swab slightly moistened with cleaning fluid or alcohol after every 10 hours of operation for optimum playback and recording...
Additional Information Cassette-corder section Recording system 4-track 2 channel stereo Fast winding time Approx. 120 s (sec.) with Sony cassette C-60 Frequency response TYPE I (normal): 80 - 12,500 Hz General Speaker Woofer: 10 cm (4 in.) dia., 4 ohms, cone type (2) Tweeter: 5 cm (2 in.) dia.,...
Page 31
(incl. projecting parts) Mass Approx. 9.5 kg (20 lb. 15 oz) (incl. batteries) Supplied accessory AC power cord (1) Remote control (1) Design and specifications are subject to change without notice. Optional accessories Sony MDR headphone series Additional Information...
23 Creating your own program D, E, F Demagnetizing the tape heads 29 Display 14 Dubbing 12 Sony Corporation Additional Information G, H GRAPHIC EQUALIZER 24 I, J, K Improving broadcast reception 7 Listening to the radio 6...
