Filler Panel Kits
k
When replacing a 36" range hood, filler
panel kits fill in the additional width to
provide a custom built-in appearance.
For installation between cabinets only; not
for end-of-cabinet installation. Each kit
contains two 3" wide filler panels.
Charcoal Filter Kits
JX81L
Filter kits are used when the oven cannot
be vented to the outside.
Note: This product should not be
installed over any cooktop range with
a combined BTU greater than 66,000
BTUs.

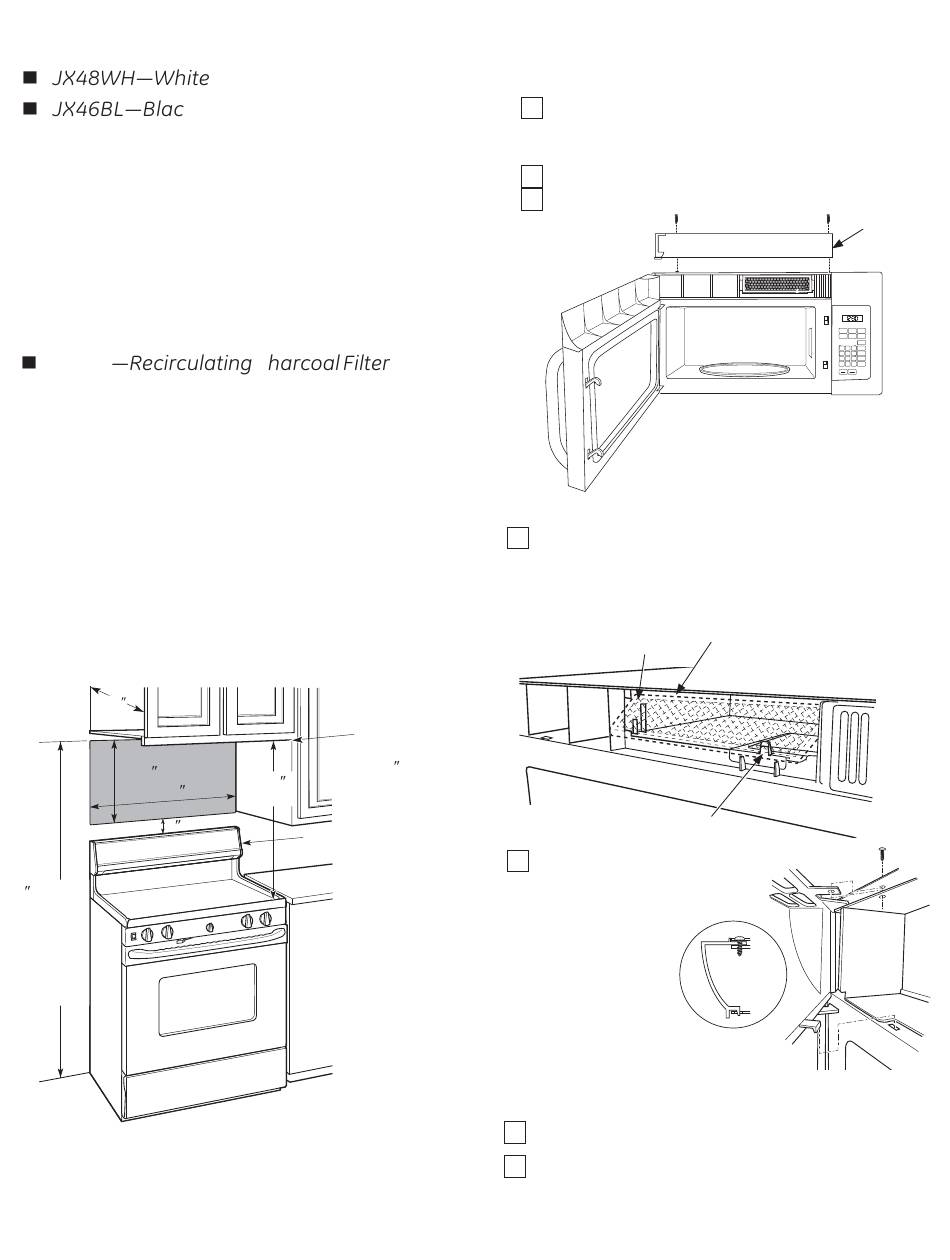

MOUNTING SPACE

12¾
max.
16-½
30
2
66 or
more from
the floor
to the
top of the
microwave
oven
Maximum cabinet depth above and beside
the unit is 12 3/4".
C Kit
Bottom edge of
cabinet needs to
be 30 or more
30
from the cooking
min.
surface
Backsplash
THE CHARCOAL FILTER
1 Remove 2 screws on top of microwave oven, just
above the grille panel, using a Phillips screwdriver.
If two screws are not accessible, see section A6.
2 Open the door.
Remove the grille.
3
Insert the top of the filter up and into the grooves on
4
both sides of the inside of the top opening. Once you
have cleared the bottom tab, push the bottom of the
filter in until it rests in place behind the tab.
Grooves in
Microwave for
Filter on Each Side
Bottom Tab
Replace the grille
5
by inserting the top
grill flange into the
slots in the case as
shown.
6
Replace the 2 top screws.
Close the door.
7
Grille
Convenience Cooking
Popcorn Beverage Potato
Defrost Cook
Reheat Time
Weight/Time
Timer
Express Cook On/Off
1 2 3 Add
30 Sec.
4 5 6
Turntable
Surface
7 8 9
Light
Power Set
0 Vent
Level Clock
Cancel Start
Off Pause
Filter (dashed to show
details of groves)
Grille
Grille
