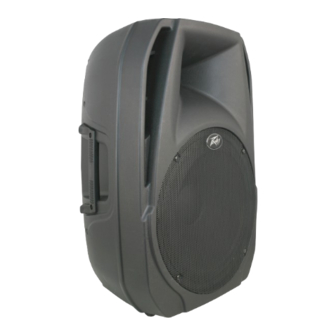

- Page 1 PBK12FM Two-way Powered Sound Reinforcement Enclosure Operating Manual www.peavey.com...
- Page 3 Additionally, a USB/FM/BLUETOOTH input port is provided to allow playback of MP3 files via a USB thumb drive. The PBK12FM can operate on its internal battery. It can also be operated on an external 12V power source (e.g. car battery).
-
Page 4: Rear Panel
VALUE IN ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PREVENT VOIDING THE WARRANTY! The fuse in the Peavey PBK12FM can be replaced with a time- delay type 5 x 20 mm size 250V rated fuse. For 110-120VAC operation, a fuse rated at 3.15 amps and 250V should be used, which conforms to the international fuse classification "T3.15AL". -
Page 5: Wireless Microphones
MIX OUT (7) These RCA jacks are intended for the use of linking multiple PBK12FM in a line or to provide a feed to a powered subwoofer, or other electronics that needs to receive a full range version of the input signal. The connectors available are RCA jack. - Page 6 USB PORT (20) For connection of a USB thumb drive for MP3 file playback. DO NOT PLUG A USB CABLE FROM A COMPUTER INTO THIS PORT! The PBK12FM USB MP3 input, and/or the computer USB output can be damaged as a result.
-
Page 7: Bluetooth® Player
Bluetooth® Player To listen to your music via Bluetooth wireless connection, you need to pair (link) your PBK 12FM with your Bluetooth phone and/or music device. 1. . Turn off any Bluetooth devices previously paired with your PBK 12FM 2. . Turn on the Bluetooth feature on your phone or music device. 3. -
Page 8: Remote Control
Remote Control NOTE: For proper use, do not block the IR Receiver. PLAY/PAUSE: A short press of the PLAY/PAUSE button causes the operation to change from PLAY to PAUSE or from PAUSE back to PLAY CH- / CH+: Channel adjustment buttons. EQ: EQ Preset adjustment button. - Page 9 Output Connections: two RCA phone jack. The Line Out jacks are intended for the use of linking multiple PBK12FM in a line or to provide a feed to a powered subwoofer, or other electronics that needs to receive a full range version of the input signal.
- Page 10 2.0 amp 250V rating. Features and specifications are subject to change without notice. Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian • MS • 39305 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com • ©2013 • EX000181...
- Page 12 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
