- Page 1 SERIOUSLY F.P.O. eW Burst Powercore High-output, exterior white spotlight for accent and site lighting...

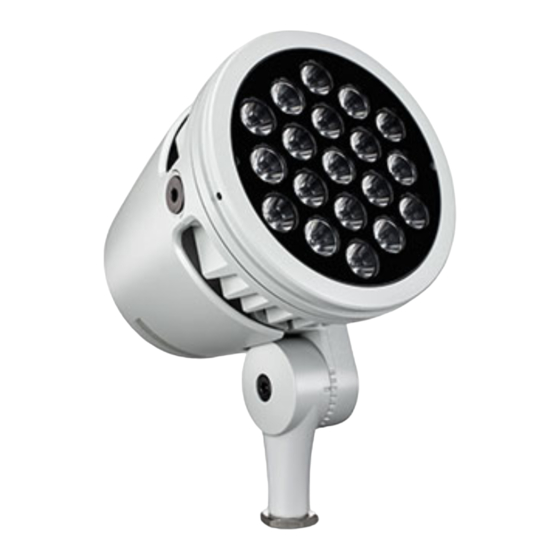

- Page 2 Burst Powercore High-output, exterior white spotlight for accent and site lighting Burst Powercore is a high-output, exterior-rated LED lighting fixture designed for accent and site ® lighting. Architectural and Landscape versions deliver high-quality white light output in a warm 2700 K and a neutral 4000 K, as well as four solid colors (Red, Green, Blue, and Amber) to support a range of uplighting, floodlighting, and decorative lighting applications. • Integrates patented Powercore technology — • Exchangeable optics and accessories — Available ® Powercore rapidly, efficiently, and accurately 14°, 23°, 41°, and asymmetric 10° x 41° spread controls power output to fixtures directly from lenses project a soft-edge beam to support a wide line voltage, eliminating the need for an external range of lighting applications. Native 8° beam angle power supply. Contractor-friendly installation offers extended light projection. Available glare dramatically simplifies installation and lowers total shields block spill light, while honeycomb louvers system cost. limit the spread of light for a more focused and intense beam. •...
- Page 3 100 95 92 90 99 94 92 90 94 91 89 93 91 89 92 90 89 98 94 91 89 98 93 91 89 93 90 89 92 90 88 92 90 88 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 4 99 94 91 89 99 94 91 89 93 91 89 93 90 89 92 90 89 98 93 90 89 97 93 90 88 92 90 88 92 90 88 91 89 88 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 5 96 90 87 85 95 90 87 85 89 86 84 89 86 84 88 86 84 94 89 86 83 94 88 85 83 88 85 83 87 85 83 87 84 83 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 6 95 90 86 84 95 89 86 84 89 86 84 88 85 83 87 85 83 94 88 85 83 93 88 85 82 87 84 82 87 84 82 86 84 82 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 7 90 84 80 77 90 83 80 77 83 79 77 82 79 77 81 78 76 88 82 78 75 88 81 78 75 81 77 75 80 77 75 79 77 74 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 8 90 83 79 77 89 83 79 76 82 79 76 81 78 76 81 78 76 88 81 77 75 87 81 77 74 80 77 74 80 76 74 79 76 74 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 9 77 68 62 58 76 67 62 58 66 61 58 65 61 57 64 60 57 74 64 59 55 73 64 58 55 63 58 55 62 58 54 61 57 54 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 10 77 67 62 58 76 67 61 58 66 61 57 65 60 57 64 60 57 73 64 58 55 72 64 58 55 63 58 54 62 57 54 61 57 54 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 11 88 81 77 74 87 81 77 74 80 76 74 79 76 73 78 75 73 86 79 75 72 85 78 74 72 78 74 71 77 74 71 76 73 71 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 12 88 81 77 74 87 81 77 74 80 76 74 79 76 73 79 75 73 86 79 75 72 85 78 74 72 78 74 72 77 74 71 77 73 71 For lux multiply fc by 10.7 eW Burst Powercore Product Guide...
- Page 13 Burst Powercore Specifications Due to continuous improvements and innovations, specifications may change without notice. Item Color Temp.* 8° primary 14° 23° 41° 10° x 41° 2700 K 1168 1022 1004 1046 Lumens† 4000 K 1478 1280 1259 1240 1317 2700 K 39.9 34.9 34.3 33.8 35.9 Efficacy (lm / W) 4000 K 49.3 42.7 41.9 41.3 44.0 Item Specification Details 8° primary optic...
- Page 14 5/16 in hex Standard C78.377A. (8 mm hex) † Lumen measurement complies with IES LM-79-08 testing procedures ‡ L 70 = 70% maintenance of lumen output (when light output drops below 70% of initial output). L 50 = 50% maintenance of lumen output (when light output drops below 50% of initial output). Ambient temperatures specified. Based on measurements that comply with IES LM-80-08 testing procedures. Refer to www.colorkinetics.com/support/appnotes/lm-80-08.pdf for more information. § Refer to www.colorkinetics.com/support/appnotes/ for specific details eW Burst Compact 4.5 in (114 mm) Powercore Architectural 7 in (178 mm) 8.06 in (205 mm) eW Burst Powercore Product Guide...
- Page 15 Burst Powercore Landscape Item Type Size Housing Color Item Number Philips 12NC Gray 523-000036-00 910503700694 Standard Black 523-000036-08 910503701793 White 523-000036-16 910503701802 2700 K Gray 523-000059-00 910503701661 Compact Black 523-000059-08 910503701924 eW Burst Powercore White 523-000059-16 910503701932 Landscape Gray 523-000036-01 910503700695 UL / cUL / CE Standard Black...
- Page 16 Burst Powercore Architectural Item Type Size Housing Color Item Number Philips 12NC Gray 523-000036-02 910503700744 Standard Black 523-000036-10 910503701795 White 523-000036-18 910503701804 2700 K Gray 523-000059-02 910503701663 Compact Black 523-000059-10 910503701926 eW Burst Powercore White 523-000059-18 910503701934 Architrectural Gray 523-000036-03 910503700743 UL / cUL Standard Black...
- Page 17 Spread Lens at a time. Standard 120-000080-00 910503700609 14º Compact 120-000080-04 910503701415 Standard 120-000080-01 910503700610 23º Compact 120-000080-05 910503701416 Spread Lenses Standard 120-000080-02 910503700611 41º Compact 120-000080-06 910503701417 Standard 120-000080-03 910503700612 10º x 41° asymmetric Compact 120-000080-07 910503701418 Use Item Number when ordering in North America. eW Burst Powercore Product Guide...
-
Page 18: Prepare For The Installation
Installation eW Burst Powercore LED fixtures offer a wash of high-intensity warm or neutral white light for spotlighting, site, and accent lighting. Powercore delivers line voltage directly to the fixture and eases installation by eliminating the need for external power supplies or special wiring. Owner / User Responsibilities It is the responsibility of the contractor, installer, purchaser, owner, and user to Refer to the eW Burst Powercore install, maintain, and operate eW Burst Powercore fixtures in such a manner as to Installation Instructions for specific warning and caution statements. comply with all applicable codes, state and local laws, ordinances, and regulations. Consult with the appropriate electrical inspector to ensure compliance. Installing in Damp or Wet Locations When installing in damp or wet locations, it is good practice to seal all fixtures and junction boxes with electronics-grade RTV silicone sealant to ensure that moisture cannot enter or accumulate in any wiring compartments, cables, or other electrical parts. You must use suitable outdoor-rated junction boxes when installing in wet or damp locations. Additionally, you must use gaskets, clamps, and other parts required for installation to comply with all applicable local and national codes Prepare for the Installation Included in the box 1. Carefully inspect the box containing eW Burst Powercore and the contents for... - Page 19 UL / cUL switch for installing and wiring information. UL / cUL CE / PSE Make sure the power is OFF before mounting and connecting eW Burst Powercore fixtures. Connecting eW Burst Powercore Architectural Fixtures to Junction Boxes 1. Mount junction boxes in accordance with the lighting design plan. Each fixture is designed for mounting in a 4 in (102 mm) round US electrical junction box, Ensure that all junction boxes are rated for your application, with 3.5 in (89 mm) center-to-center screw holes for suitable for the environment and that all wiring between junction boxes complies with attaching the fixture’s base.
- Page 20 5. Use wire nuts to connect line, neutral, and ground. 6. Tuck wire connections into the junction box. 7. Screw the fixture’s canopy base into the junction box using the four included 10-24 stainless steel screws. If installing in a damp or wet location, seal all junction boxes with contractor-grade RTV silicone sealant. Use gaskets, clamps, and other parts and fittings required to comply with local outdoor wiring codes. 8. If installing in parallel, connect the wires from each fixture to the lead wire from the line power source in the common junction box. 9. Connect the wire from the first fixture in the series to the line power source if installing in series, or from the common junction box to the line power source if installing in parallel. Surface-Mounting eW Burst Powercore Architectural Fixtures 1. Prepare eW Burst Powercore Architectural fixtures for surface-mounting: • Remove the nylon cable clamp from the fixture’s leader cable where it exits the underside of the canopy base. eW Burst Powercore Product Guide...
- Page 21 7. Secure all junction box covers. If installing in a damp or wet location, seal all (9.6 mm) .04 in (1 mm) junction boxes with contractor-grade RTV silicone sealant. Use gaskets, clamps, and other parts and fittings required to comply with local outdoor wiring codes. UL / cUL CE / PSE UL / cUL CE / PSE UL / cUL CE / PSE 8. If installing in parallel, connect the wires from each fixture to the lead wire from the line power source in the common junction box. 9. Connect the wire from the first fixture in the series to the line power source if installing in series, or from the common junction box to the line power source if installing in parallel. eW Burst Powercore Product Guide...
- Page 22 Connecting and Mounting eW Burst Powercore Landscape Fixtures eW Burst Powercore Landscape fixtures feature a 1/2 in NPT threaded post for installing to standard junction boxes, stanchion mounts, posts, stakes, and other landscape mounting accessories. Make sure the power is OFF before mounting and connecting eW Burst Powercore fixtures. 1. Mount junction boxes and any landscape mounting accessories in accordance with the lighting design plan. 2. If installing fixtures in a series, pull 3-conductor copper wire between the junction boxes. If installing fixtures in parallel, pull 3-conductor copper wire from line power to a common junction box, and from the common junction box to each fixture’s junction box. We recommend the use of 12 AWG (2.05 mm), stranded 3-conductor copper Ensure that all junction boxes are wire. suitable for the environment and that all wiring between junction boxes complies with 3. Thread the locking nut onto the eW Burst Powercore Landscape threaded post.
-
Page 23: Attach Safety Cable
8. If installing in a damp or wet location, seal all junction boxes and mounting accessories with contractor-grade RTV silicone sealant. Use gaskets, clamps, and other parts and fittings required to comply with local outdoor wiring codes. 9. If installing in parallel, connect the wires from each fixture to the lead wire from the line power source in the common junction box. 10. Connect the wire from the first fixture in the series to the line power source if installing in series, or from the common junction box to the line power source if installing in parallel. Attach Safety Cable (optional) When installing eW Burst Powercore fixtures to a wall or overhead, use a safety cable to tether it to a secure anchor point. When dictated by local or state code or Safety cable minimum requirements advised by a structural engineer, attach a safety cable to the eW Burst Powercore Material 304 or 316 Stainless Steel fixture housing and tether it to a secure anchor point. 5/32 in (4 mm) nominal diameter Size Minimum break load must be greater 1. Thread a safety cable through the fixture housing as shown. than 2,400 lb (1089 kg) Architectural Landscape 2. Attach the safety cable to the mounting surface using a method that follows the code or engineer’s requirements. eW Burst Powercore Product Guide... -
Page 24: Attach Accessories
You may want to rough- in the spread lens position, fine-tune it when aiming and locking the fixture, then lock down the trim ring or glare shield once the lens is positioned to give the desired results. eW Burst Powercore Product Guide... - Page 25 4. If necessary, us a 5/32 in hex wrench to remove the locking screw from the trim ring or glare shield. 5. Grab the trim ring or glare shield with both hands, flex it gently open, and clip it to the front rim of the fixture housing. 6. Insert the locking screw into the opening on the trim ring or glare shield. Use a 5/32 in hex wrench and torque to 6 in-lbs (.6 Nm). For eW Burst Compact Powercore, use a 1/8 in hex wrench. Standard 5/32 in 6 in-lbs (max) .6 Nm (max) Compact 1/8 in 6 in-lbs (max) .6 Nm (max) eW Burst Powercore Product Guide...
- Page 26 Aim and Lock Fixtures eW Burst Powercore fixtures can tilt through a full 180°. eW Burst Powercore Architectural fixtures can also rotate through a full 360° for precise aiming. Locking nuts use standard hex wrenches to secure fixtures firmly in position. Aiming and Locking eW Burst Powercore Landscape Fixtures 1. Using a 6 mm hex wrench, loosen the locking nut on the side of the fixture base. 180º 2. Aim the fixture by tilting the beam as desired. 3. When the fixture is aimed as desired, re-tighten the locking nut to secure the fixture in place. Torque to 25 ft-lbs (33.9 Nm). Do not over-tighten. 1°– 45º 46°– 90 6 mm 25 ft-lb (max) 33.9 Nm (max) eW Burst Powercore Product Guide...
- Page 27 Aiming and Locking eW Burst Powercore Architectural Fixtures 1. To tilt the beam: • Loosen the locking nuts on either side of the fixture yoke using a 5/16 in or 8 mm hex wrench. • Tilt the beam as desired. 360° • Re-tighten the locking nuts to secure the fixture in place. Torque to 25 ft-lbs (33.9 Nm). Do not over-tighten. 180° 5/16 in hex 8 mm hex 25 ft-lb (max) 33.9 nm (max) 2. To rotate the fixture: • Loosen the locking nuts on either side of the fixture yoke’s base using a 1/8 in or 3 mm hex wrench. • Rotate the fixture as desired. 360° • Re-tighten the locking nuts to secure the fixture in place. 1/8 in hex 3 mm hex eW Burst Powercore Product Guide...
- Page 28 DIMand, EssentialWhite, eW, iColor, iColor Cove, IntelliWhite, iW, iPlayer, Optibin, and Powercore Tel 888.385.5742 are either registered trademarks or trademarks of Philips Solid-State Lighting Solutions, Inc. in the United States and / or other countries. All other brand or product names are trademarks Tel 617.423.9999...
