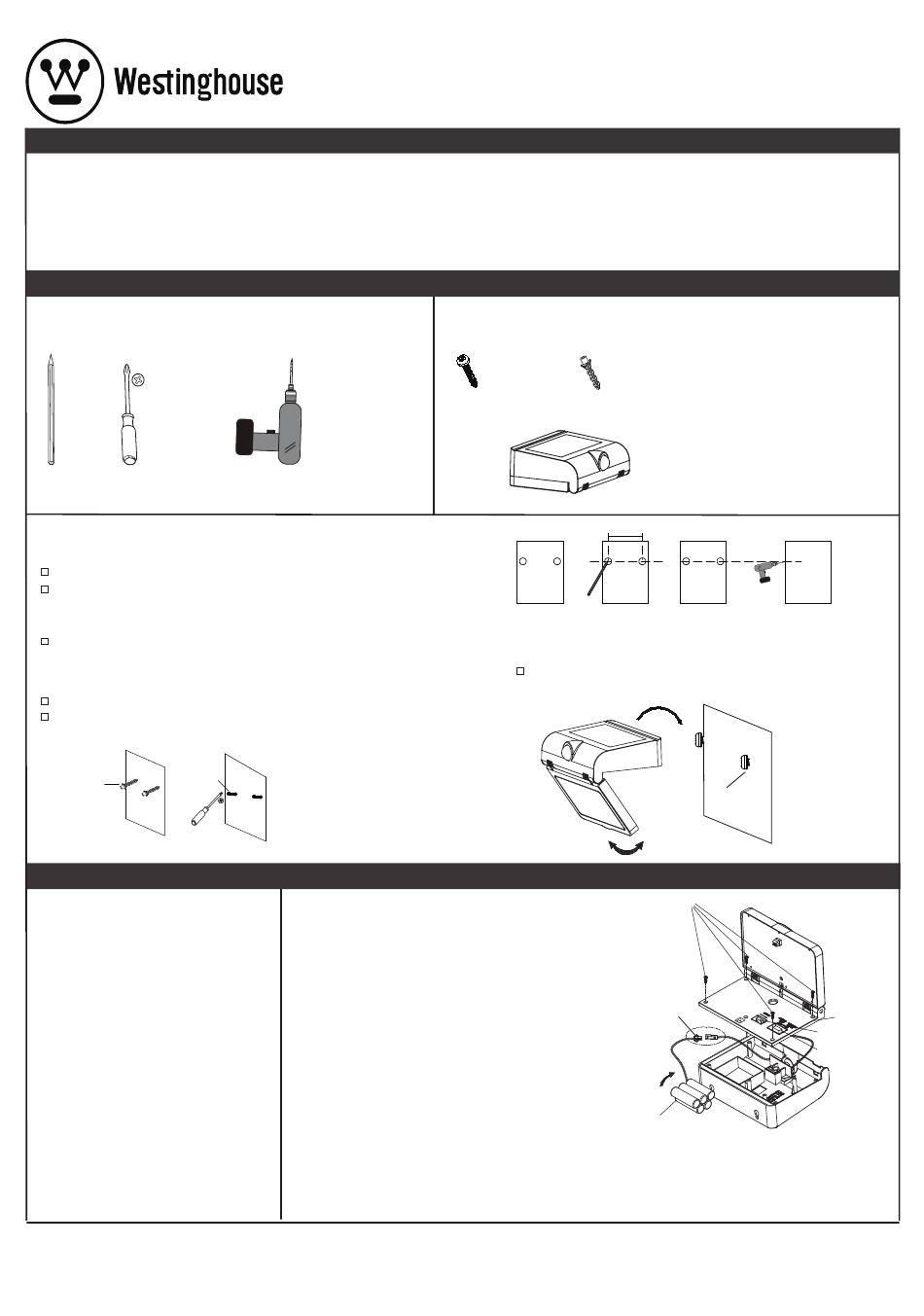

Westinghouse Q08BN0301-08 Instructions

FOR FIRST TIME USE: SOLAR LIGHT NEEDS TO CHARGE IN FULL SUNLIGHT FOR 8 -12 HOURS WITH THE SWITCH IN
THE "ON" POSITION TO ALLOW THE RECHARGEABLE BATTERIES TO REACH MAXIMUM CAPACITY.
IF INSTALLING MORE THAN 1 LIGHT, YOU MUST LINK YOUR LIGHTS FIRST, BEFORE INSTALLATION BEGINS. YOU MAY
LINK UP TO 6 LIGHTS. AFTER THE LIGHTS ARE LINKED YOU MAY BEGIN THE INSTALLATION PROCESS.
Tools Required
Screwdriver
Pencil
1
Marking the location
Mark the location where you want to mount the light.
Measure the width of two holes on the back of the solar fence
light to align holes for 2 the screws (A) on the surface. The
distance between the two holes is 96mm.
Drill two holes.
2
Fixing the screws
Insert the plastic plugs (B) so they are flush with the surface.
Insert the screws (A) and leave at least 1/4 in., or 5 mm of the
screws (A) outside of the surface for holding the solar fence light.
A
B
TROUBLE SHOOTING
If light doesn't turn on, check the
battery to ensure that it is making
secure contact with the terminals.
If this doesn't work, replace with a
new battery.
INSTRUCTIONS
INSTALLATION
Hardware Included
Part
Electric drill
drill bit size:
ø7.5mm (3/10 in.)
Slide the power switch to the "OFF" position. Use a
Phillips head screwdriver to remove the 4 screws
holding the battery cover in place. Gently pull battery
pack away from the light fixture and disconnect the
battery connector. Replace old battery pack with a
new 6V AA Ni-Mh 900mAh rechargeable battery pack.
Connect the battery connector and insert battery pack
into the light fixture. Replace the battery cover by
aligning it properly and replacing the 4 screws
removed earlier. Slide the power switch to the "ON"
position.
For optimum performance, allow solar light to charge
in full sunlight.
A
B
Screw X 2
Plastic plug X 2
C
Light Fixture X 1
96mm
3
Mounting the light
Mount the light on the screws (A) by placing the keyholes
on the back of the light over the screw heads.
REPLACING THE BATTERY
Battery
connector
Battery pack
ITEM: Q08BN0301-08
x x
A
Screws
Battery cover
Link ON Switch
ON/OFF Switch
05/29/2018
1/2E
