SETUP INSTRUCTIONS
2018

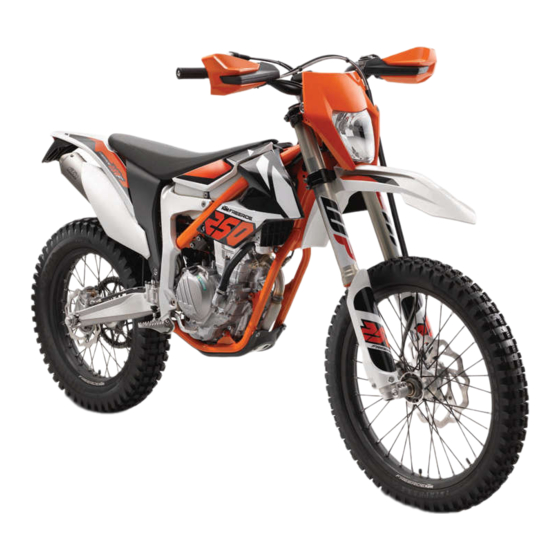

Freeride 250 F
Art. no. 3213743en

Advertisement

loading

Related Manuals for KTM Freeride 250 F

Summary of Contents for KTM Freeride 250 F

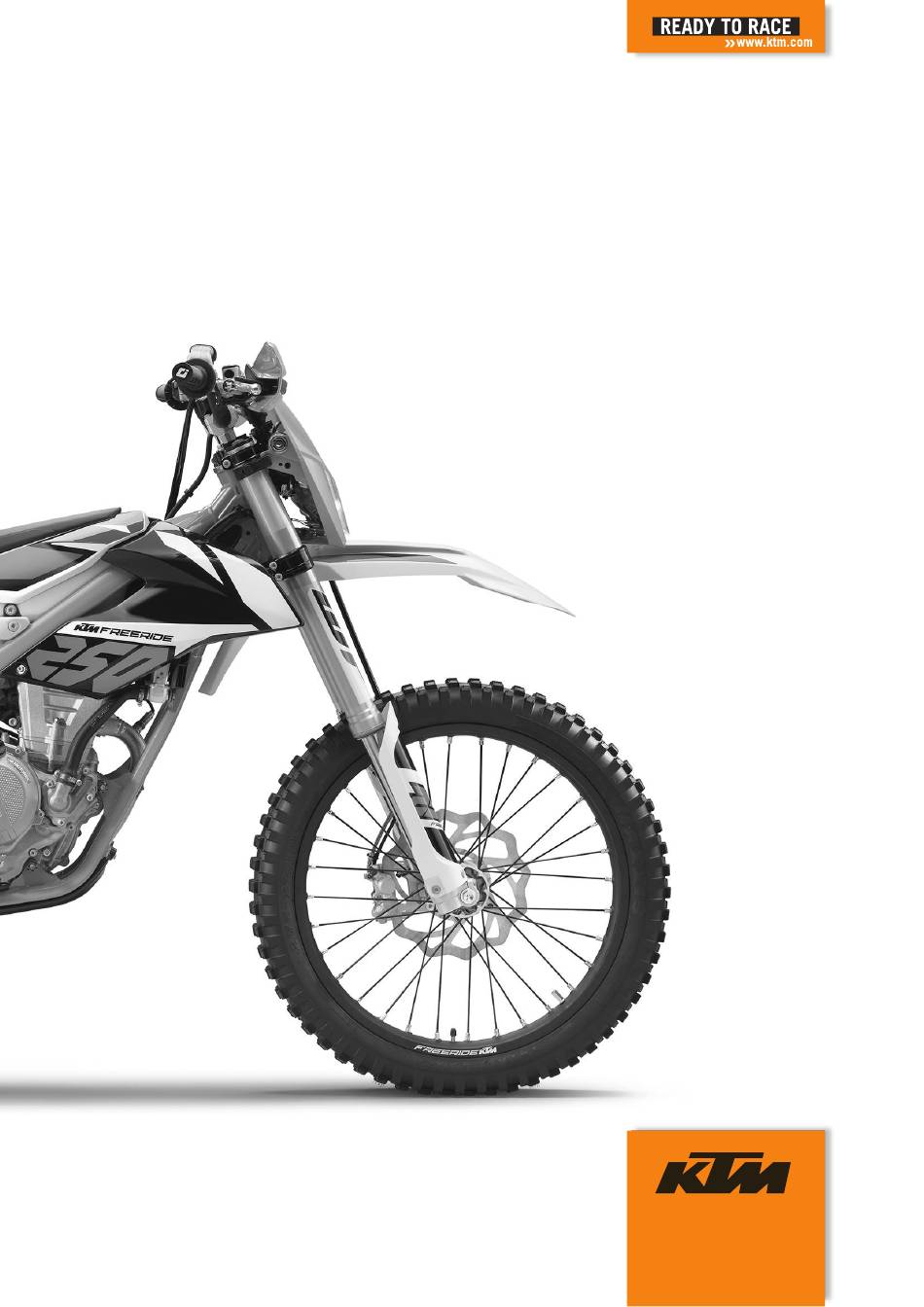

  • Page 1 SETUP INSTRUCTIONS 2018 Freeride 250 F Art. no. 3213743en...
  • Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descrip- tions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

  • Page 4: Means Of Representation

    1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 Remove remaining protective film. – Attach the sticker included in the delivery (optional). – Prepare the vehicle according to the specifications in the KTM Dealer.net for handover to the customer. Info Transport mode must be deactivated to be able to start the motorcycle.

  • Page 6: Service Work On The Chassis

    3 SERVICE WORK ON THE CHASSIS Unpacking and setting up the V2 vehicle – Remove the box and the plastic packaging. Info An assistant prevents the motorcycle from falling over. To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished.
  • Page 7 SERVICE WORK ON THE CHASSIS 3 Unpacking and setting up the V12 vehicle – Remove the box and the plastic packaging. Info An assistant prevents the motorcycle from falling over. To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished.
  • Page 8 3 SERVICE WORK ON THE CHASSIS – Position the brake caliper. Mount and tighten screws with the spacers. Guideline Screw, front 25 Nm (18.4 lbf ft) Loctite ® 243™ brake caliper – Connect plug-in connector and mount the cable tie(s). –...
  • Page 9 SERVICE WORK ON THE CHASSIS 3 Sticking on the reflector – Make sure that the reflectors are glued on to the left and right fork leg. » If there are no reflectors stuck on: – Stick on the reflector. Info The reflectors must not be covered by trim parts.
  • Page 10 3 SERVICE WORK ON THE CHASSIS Info The handlebar clamps and screws are in the accessory pack. The markings on the handlebar should be at the center of the handlebar clamps. Keep the gap widths equal when tightening. Installing the handlebar cushion –...
  • Page 11 With the combination switch mounted the second mapping and traction control can be used. The figure shows a possible installation position of the left side combination switch. Observe the accompanying KTM PowerParts fitting instructions. The launch control is not available for this model. –...
  • Page 12 3 SERVICE WORK ON THE CHASSIS – Route the cables without tension and secure with cable ties and cable holders. F01221-10 3.11 Installing right side controls – Position the controls on the right half of the handlebar. – Route the cables without tension and secure with cable ties and cable holders.
  • Page 13 SERVICE WORK ON THE CHASSIS 3 3.12 Installing left and right rear mirrors – Mount the mirror clamps on both sides. H01060-01 – Mount and tighten the rear mirror on both sides. E00961-01 3.13 Installing hand guards left and right –...
  • Page 14 3 SERVICE WORK ON THE CHASSIS – Mount the left hand guard. – Mount the right hand guard. E00963-01 3.14 Installing front fender – Position front fender. Mount and tighten screws Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis –...
  • Page 15 SERVICE WORK ON THE CHASSIS 3 – Check the wheel bearing for damage and wear. » If the wheel bearing is damaged or worn: – Change front wheel bearing. – Clean and grease shaft seal rings and contact surface of the spacers. Long-life grease ( p.
  • Page 16 3 SERVICE WORK ON THE CHASSIS – Position the turn signal on both sides on the license plate holder, mount nuts with washers and tighten. E00967-01 3.17 Installing the license plate lamp – Position the license plate lamp on the license plate holder extension, and mount and tighten screw F01175-10 3.18...
  • Page 17 SERVICE WORK ON THE CHASSIS 3 – Join plug-in connector of the turn signal cable. – Make sure that the bulb is located in socket » If there is no bulb in the socket: – Insert the bulb, included in the accessory pack, in socket Indicator lamps (W2.3 W / socket W2.1x4.6 d) –...
  • Page 18 3 SERVICE WORK ON THE CHASSIS – Drill a hole at marking to the size of the marking. F01179-10 – Route the turn signal cable harness through the frame from the front to the rear paying attention to the plugs as you do so. F01180-10 –...
  • Page 19 SERVICE WORK ON THE CHASSIS 3 – Position the license plate holder on the rear. Info Ensure that the cable is routed correctly. – Mount and tighten screws Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis – Position the tail light on the license plate holder. –...
  • Page 20 3 SERVICE WORK ON THE CHASSIS 3.22 Locking the seat – Fold down the seat and push it down. The seat engages with an audible click. – Check that the seat is correctly locked. E00977-10 3.23 Installing the license plate holder extension –...
  • Page 21 SERVICE WORK ON THE CHASSIS 3 3.24 Removing the motorcycle from the lift stand Note Danger of damage The parked vehicle can roll away or fall over. – Park the vehicle on a firm and level surface. – Remove the motorcycle from the lift stand. –...
  • Page 22 3 SERVICE WORK ON THE CHASSIS 3.27 Recharging the battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep batteries out of the reach of children. – Wear suitable protective clothing and safety glasses. – Avoid contact with battery acid and battery gases.
  • Page 23 SERVICE WORK ON THE CHASSIS 3 – Remove the battery from the battery compartment. – Disconnect negative cable from the battery. – Pull back positive terminal cover E00981-10 – Connect the battery charger to the battery. Adjust the battery charger. EU battery charger XCharge-professional (00029095050) Alternative 1 US battery charger XCharge-professional...
  • Page 24 3 SERVICE WORK ON THE CHASSIS – Position the battery in the battery compartment. – Attach fastening plate – Mount and tighten screw E00980-10 3.28 Installing the headlight mask with the headlight Main work – Join plug-in connector of the turn signal relay, plug-in con- nectors of the turn signals, plug-in connector of the...
  • Page 25 SERVICE WORK ON THE CHASSIS 3 3.29 Checking the headlight setting – Position the vehicle upright on a horizontal surface in front of 0 0 A a light wall and make a mark at the height of the center of the low beam headlight.
  • Page 26 3 SERVICE WORK ON THE CHASSIS – Repeatedly press the button briefly until H appears at the bottom right of the display. – Press the button for 2–3 seconds. The Setup menu is displayed and the active functions are shown. Info If no button is pressed for 10 - 12 seconds, the settings are automatically saved.
  • Page 27 SERVICE WORK ON THE CHASSIS 3 3.33 Adjusting the clock Condition The motorcycle is stationary. – Repeatedly press the button briefly until CLK appears at the bottom right of the display. – Press the button for 2–3 seconds. The hour display flashes. –...
  • Page 28 3 SERVICE WORK ON THE CHASSIS Warning Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to enter the groundwater, the soil, or the sewage system. Preparatory work – Switch off the engine. –...
  • Page 29 SERVICE WORK ON THE CHASSIS 3 Main work – Press release button , turn the filler cap counterclockwise, and lift it free. E00979-10 3.36 Closing the filler cap Main work – Replace the filler cap and turn clockwise until the release but- locks in place.

  • Page 30: Technical Data

    4 TECHNICAL DATA Chassis tightening torques EJOT PT Screw for spoiler, top ® K60x20AL 3 Nm (2.2 lbf ft) EJOT PT Screw, front spoiler ® K60x30‑Z 3 Nm (2.2 lbf ft) EJOT PT ® Screw, pressure regulator K60x25-Z 2 Nm (1.5 lbf ft) Screw, fixed grip 5 Nm (3.7 lbf ft) Loctite...
  • Page 31 TECHNICAL DATA 4 Screw, fuel tank 15 Nm (11.1 lbf ft) Loctite ® 243™ Screw, handlebar clamp 20 Nm (14.8 lbf ft) Screw, main silencer M8x20 25 Nm (18.4 lbf ft) Screw, main silencer M8x25 25 Nm (18.4 lbf ft) Screw, side stand attachment 25 Nm (18.4 lbf ft) Loctite...
  • Page 32 5 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.

  • Page 33: Auxiliary Substances

    AUXILIARY SUBSTANCES 6 Long-life grease Recommended supplier Motorex ® – Bike Grease 2000...
