RCA PJ28BT Instruction Manual

Home theater projector with bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

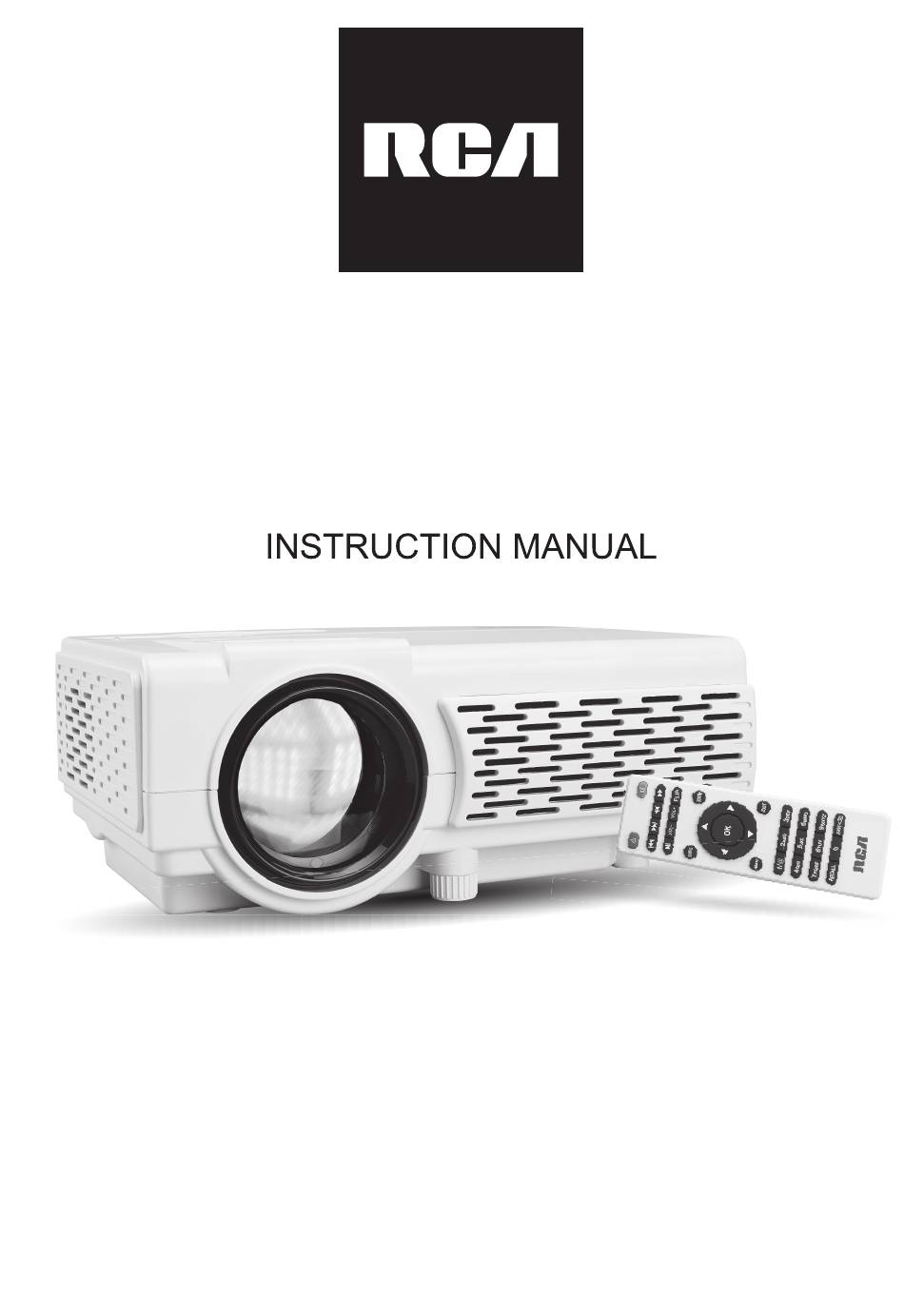

PJ28BT
MODEL NO.
Home Theater Projector with Bluetooth
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
This product is manufactured and sold by Curtis International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered
trademarks or trademarks of RCA TrademarkManagement and are used
under license by Curtis International Ltd. Any other product, service,
company, trade or product name and logo referenced herein are neither
endorsed nor sponsored by RCA Trademark Management or its affiliates.

Advertisement

Table of Contents
loading

Related Manuals for RCA PJ28BT

Summary of Contents for RCA PJ28BT

  • Page 1 PLEASE READ BEFORE OPERATING THIS EQUIPMENT This product is manufactured and sold by Curtis International Ltd. RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks or trademarks of RCA TrademarkManagement and are used under license by Curtis International Ltd. Any other product, service, company, trade or product name and logo referenced herein are neither endorsed nor sponsored by RCA Trademark Management or its affiliates.
  • Page 2 Important Safety Instruc ons 1. Read these Instruc ons. 2. Keep these Instruc ons. 3. Heed all Warnings. 4. Follow all instruc ons. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ven la on openings. Install in accordance with the manufacturer’s instruc ons.
  • Page 3 Addi onal Warnings and Precau ons 1. Do not look directly into the projector light. 2. Don’t touch the project lens. 3. Mains adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

  • Page 4: Fcc Warning

    PLEASE READ BEFORE OPERATING THIS EQUIPMENT PQRS WXYZ This product is manufactured and sold by Curtis International Ltd. RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered RECALL FAV/ trademarks or trademarks of RCA TrademarkManagement and are used under license by Curtis International Ltd.

  • Page 5: Table Of Contents

    Table of Contents Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - P1 Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - - P2 FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 In The Box - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 Table of Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P4...

  • Page 6: Remove & Close The Lens Cover

    Remove & Close The Lens Cover Remove the lens cover before using Close the lens cover when unit not using REMOVE CLOSE LENS COVER LENS COVER Placing Your Projector Your projector can be installed in four different configurations (see picture below): Front Table Front Table: Select this location with the projector placed near...

  • Page 7: To Reduce Image Distortion

    To Reduce Image Distor on • Move the projector as close to the center of the screen as possible. • The light beam from the projector should be perpendicular to the screen for a rectangular or square image. Distance Between The Projector And Screen Measure the distance between the projector and where you want to position the screen.

  • Page 8: Adjust The Vertical Location

    Adjust The Ver cal Loca on Follow below picture to adjust the vertical location. SCREEN SCREEN PROJECTOR VERTICAL VERTICAL DIMENSION DIMENSION PROJECTOR HDMI SCREEN VERTICAL DIMENSION PROJECTOR Adjust this knob ( ANGLE ADJ. knob) to fine- tune the display angle to higher. Adjust The Focus And Keystone Follow below picture to adjust the focus and trapezoidal screen.

  • Page 9: Controls Of Remote

    Controls Of Remote FLIP EXIT MENU EXIT PQRS WXYZ RECALL FAV/ Install / Remove Ba ery Of Remote Remove the battery compartment cover on the back of your remote by carefully sliding to open. The battery cover can then be lifted away. Fit the correct batteries (not included), referring to the polarity markings.

  • Page 10: Controls Of Projector

    Controls Of Projector 15 16 17 18 19 20 HDMI 2 HDMI 1 LENS 11. RETURN Bu on ANGEL ADJ. Knob Bu ons VGA IN Port 13. MENU Bu on IR Sensor 14. SOURCE Bu on FOCUS ADJ. Knob 15. EAR PHONE Jack TRAPEZOIDAL ADJ.

  • Page 11: Install Power Adapter

    Install Power Adapter Follow below picture to connect power adapter Connect small end of adapter FIRST. Plug the adapter body to power outlet. WARNING: Before connecting to the power supply, ensure that the supply corresponds to the information on the rating label at the back of the apparatus.

  • Page 12: Connect Av Show The Image On Projector Screen

    Connect HDMI Show The Image On Projector Screen Refer to the following picture to connect a set top box, a BD/DVD player or a streaming player to the HDMI input. 1. Turn off the unit before connect HDMI cable. 2. After connection, press the button to turn on unit and power indicator will light GREEN 3.

  • Page 13: Connect Vga Show The Image On Projector Screen

    Connect VGA Show The Image On Projector Screen Follow below picture to connect VGA cable and device. Turn off the unit before connect VGA cable. Press the button to turn off power of your projector before connection. After connect, press the button to turn on unit and power indicator will light GREEN Press the...

  • Page 14: Connect Audio Output (Aux Out / Line Out / Earphones)

    Connect Audio Output ( Aux Out / Line Out / Earphones) Follow below picture to connect audio cable and device. Press the button to turn off power of your projector before connection. Use audio cable to connect follow below figure. After connect and turn on both units.

  • Page 15: Using Tf Card And Usb Playback (Media Player)

    Using TF Card And USB Playback (Media Player) Install USB / TF device: Turn off the unit before install USB / TF card. Install the USB device into USB port / Install the TF device into TF slot. A er connect, press the bu on to turn on unit and the power indicator light GREEN.

  • Page 16: Using Bluetooth Playback

    Using Bluetooth Playback Pairing is the term used when two Bluetooth devices are connected wirelessly for the first time. This allows the devices to see each other and sets up a one to one communication channel between both devices. Bluetooth Connection 1.

  • Page 17: Using Projector Menu 1.0

    Using Projector Menu 1.0 Press button to enter projector menu. Picture Mode Standard This Picture menu showed on right upper of Color Temperature view screen. Aspect Ratio Auto Noise Reduction PC Setting Reduce Display 100% TO SELECT to select different picture effect to Standard / Soft / User / Vidid.

  • Page 18: Using Projector Menu 2.0

    Using Projector Menu 2.0 Press button to enter projector menu, press buttons to select SOUND menu. Sound Mode Standard Balance 0 This SOUND menu showed on right upper of view screen. Auto Volume Off TO SELECT to select different sound effect Standard / Music / Movie / Sports / User.

  • Page 19: Using Projector Menu 3.0

    Using Projector Menu 3.0 Press button to enter projector menu, press buttons to select OPTION menu. OSD Languag a i l Restore Factory Default This OPTION menu showed on right upper of Rotate 0 view screen. OSD Duration 30 S Software Update(USB) TO SELECT button to select different language.

  • Page 20: Specifications

    Specifications Bluetooth Version Light Source Type Brightness Output (LED) 2000 lumens Display Native Resolution 800 x 480 RGB HDMI Input Supported 1080p , 1080i , 720p, 576i , 480p, and 480i Video Resolution. Power Consumption Operating 30W; Standby 1.1W Power Input DC 12V , 2.5A Connect Included Adapter Included Adapter...
