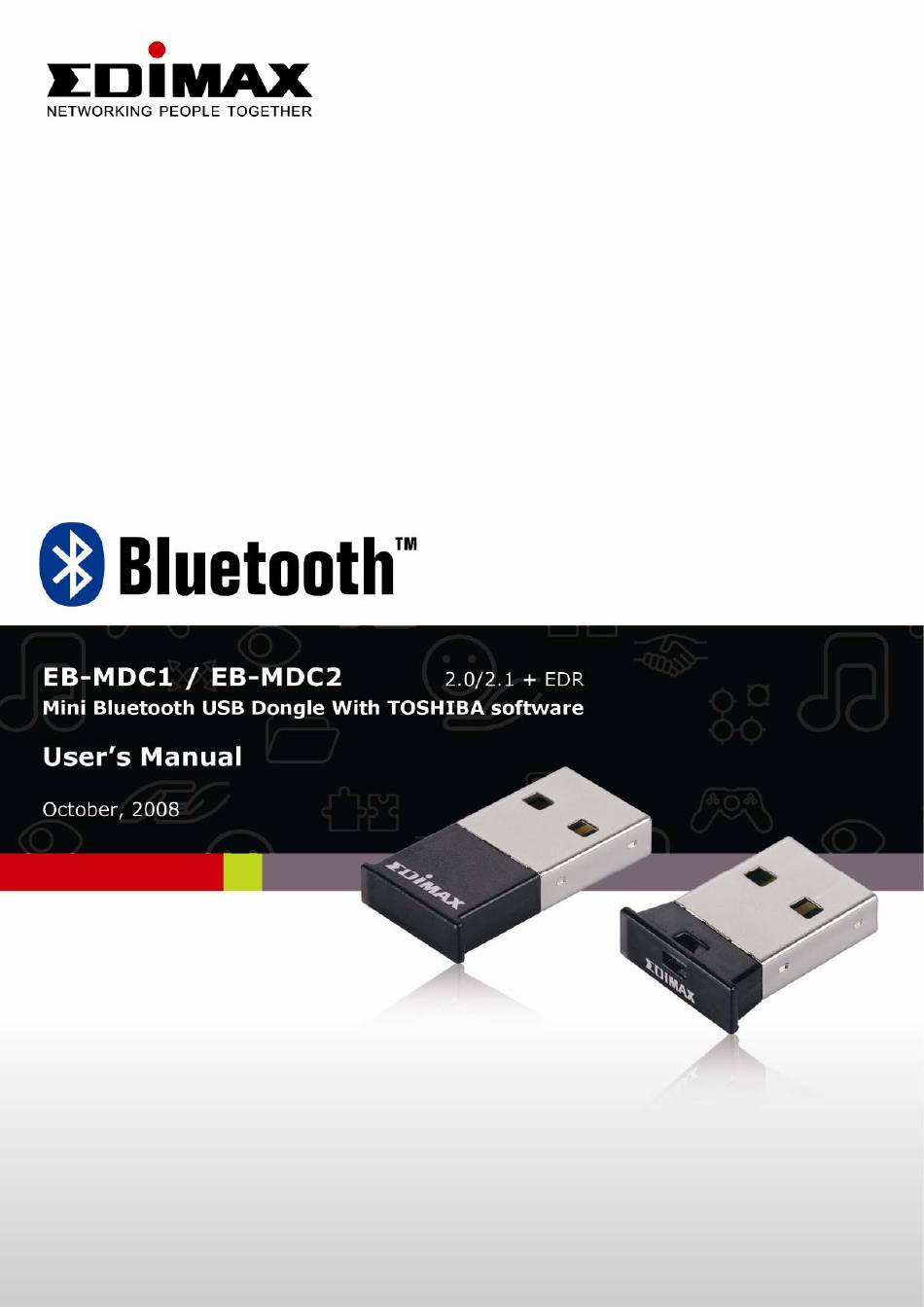

Summary of Contents for Edimax EB-MDC2
-
Page 2: Table Of Contents
Index CHAPTER 1 Supported profiles Supported languages Supported operating systems Limitations CHAPTER 2 Setup for Windows 2000/XP/Vista CHAPTER 3 Basic setting Express Mode Set-up Custom Mode Set-up CHAPTER 4 Advanced features Encrypting the content of your transmissions Manually creating a virtual Bluetooth COM port Federal Communication Commission Interference Statement... -
Page 3: Supported Profiles
Chapter1 Supported profiles (a) Dial-Up Network (DUN) (b) Fax profile (FAX) (c) Local Access Profile (LAP) (d) Serial Port Profile (SPP) (e) Human Interface Devices (HID) (f) Hard Copy Replacement Profile (HCRP) (g) File Transfer Profile (FTP) (h) Object Push Profile (OPP) (i) Headset Profile (HSP) (j) Personal Area Network (PAN) (k) Basic Imaging Profile (BIP) -
Page 4: Supported Languages
Supported languages The Bluetooth Stack for Windows supports the following languages. Chinese (Traditional) Chinese (Simplified) Danish Dutch English French German Greek Italian Japanese Korean Norwegian Polish Portuguese (Brazil) Russian Spanish Swedish Russian Supported operating systems The Bluetooth Stack for Windows supports the following operating systems. Windows 2000 Professional (Service Pack 3 or above) Windows XP Professional (Service Pack 1 or above) Windows XP Home (Service Pack 1 or above) -
Page 5: Setup For Windows 2000/Xp/Vista
Chapter2 Setup for Windows 2000/XP/Vista Installing Bluetooth software for Windows Insert the software CD and the setup menu will launch automatically, please tab the option to install the software Please click “NEXT” button to start the installation... - Page 6 When the License Agreement screen is displayed, read the License Agreement, then clicks the radio button to the left of "I accept the terms in the license agreement" and then clicks the “Next“button. Please click “install” to begin the installation. During the installation, the system will try to detect your Bluetooth device, please plug in your Bluetooth device and then click on the “OK”...
- Page 7 Please click “Finish” to complete the installation. You may need to restart for made the software effective.
-
Page 8: Basic Setting
Chapter 3 Basic setting Methods for registering new devices using the Bluetooth Utility shall now be described. A Bluetooth mouse shall be connected and set up using [Bluetooth Settings] as an example. [Bluetooth Settings] provides two set-up methods: "Express Mode" and "Custom Mode." Express Mode •... - Page 9 Note The same result can be achieved by right-clicking on the Bluetooth icon in the task tray and selecting [Bluetooth Settings] from the menu that appears. The [Add new Connection Wizard ] window below will appear when other devices have already been registered. Please click the mode and click “Next”...
- Page 10 The [Add New Connection Wizard (Welcome to the Add New Connection Wizard)] window will appear. 1. Switch the device power ON to make it connectable via Bluetooth. 2. Confirm that [Express Mode] has been selected in the [Add New Connection Wizard (Welcome to the Add New Connection Wizard)] window, and click on the [Next] button.
- Page 11 When the device has been detected, the name and address of the device will appear in the [Add New Connection Wizard (Select Device)] window. Note If no device is found, please confirm that the device has been made connectable via Bluetooth, and click on the [Refresh] button.
- Page 12 Bluetooth device detection will commence(See it on next page). Note ●If several services (profiles) are supported by the device, the service that has been set to the highest priority shall be automatically selected and set up in Express Mode. Please use Custom Mode if you wish to select desired services manually.
- Page 13 3.1.4 Registering settings information The [Add New Connection Wizard (Completing the Add New Connection Wizard)] window will appear. 1. Click on the [Finish] button The [Bluetooth Settings] window will appear. The icons of the registered devices will appear, and the devices will be ready to use.
-
Page 14: Custom Mode Set-Up
3.2 Custom Mode Set-up 3.2.1 Starting Bluetooth Settings 1. Click [Start] [All Programs] [Bluetooth] [Bluetooth Settings]. (Under Windows 2000, click [Start]→[Programs]→[Bluetooth]→[Bluetooth Settings].) Note The same result can be achieved by right-clicking on the Bluetooth icon in the ● task tray and selecting [Bluetooth Settings] from the menu that appears. The [Bluetooth Settings] window below will appear when other devices have already been registered. - Page 15 3.2.2 Detecting Bluetooth devices The [Add New Connection Wizard window will appear. 1. Switch the device power ON to make it connectable via Bluetooth. 2. Confirm that [Custom Mode] has been selected in the [Add New Connection Wizard window, and click on the [Next] button. Searching for Bluetooth devices will start.
- Page 16 When the device has been detected, the name and address of the device will appear in the [Add New Connection Wizard (Select Device)] window. Note If no device is found, please confirm that the device has been made ● connectable via Bluetooth, and click on the [Update] button. A further device search will be performed.
- Page 17 3.2.3 Detecting services 1. Select the device name from [Device List] and click on the [Next] button. Note ● When a service has been detected, a window prompting you to enter the Bluetooth passkey (PIN code) may appear. Please enter the passkey and click on the [OK] button. ●...
- Page 18 Note ●When a device supports several services If the device supports several services, you can use Custom Mode to manually select the services (profiles) you wish to use from the list that appears under [Select Services]. Example: List of wireless modem station services If Express Mode is used to perform the set-up, the highest-priority service in the device will be automatically selected and configured.
- Page 19 Note ● If you wish to change the icon, please click on the [Change Icon] button and select your preferred icon from the list that appears.
- Page 20 3.2.4 Registering settings information The [Add New Connection Wizard (Completing the Add New Connection Wizard)] window will appear. Click on the [Finish] button The [Bluetooth Settings] window will appear. The icons of the registered devices will appear, and the devices will be ready to use.
-
Page 21: Advanced Features
Chapter 4 Advanced features 4.1 Making a device undiscoverable to other users 1. Right-click on the Bluetooth icon in the task tray, and then click on [Options…]. The [Options] window will appear. 2. Tab [Security], then select [Custom Level], enable [Non-discoverable mode], and then click on the [OK] button. -
Page 22: Encrypting The Content Of Your Transmissions
4.2 Encrypting the content of your transmissions Since Bluetooth communication is conducted wirelessly, there is always the possibility that a third party may be able to intercept your transmissions. You can use encryption to render the content indecipherable to anyone who manages to intercept it. -
Page 23: Manually Creating A Virtual Bluetooth Com Port
● The window in which you enter the passkey will not appear once you have connected more than two times to the device. ●if the device with that software was the Bluetooth 2.1+EDR device, sometimes you can pair the devices without PIN codes (such as HID devices). 4.3 Manually creating a virtual Bluetooth COM port In order for a PC to connect to and communicate with a Bluetooth device, the Bluetooth Utility will create a gateway for data to be exchanged between the... - Page 24 Bluetooth virtual COM port for a server • Virtual COM port used when your device is the server, and requests are received from another device. 4.3.2 Creating a virtual COM port Bluetooth virtual COM ports are created according to the procedure below: 1.
- Page 25 Note ●If the Control Panel is displayed in "Classic View" and you are running Windows 2000, skip to Step 2. ● If you are running Windows XP, double-click on the [Printers and Other Hardware] icon. 3. Click on the [Add...] button. Note ●Even when the Control Panel appears in Classic view, please simply click on the [Bluetooth Local COM] icon.
- Page 26 A message will appear asking you to confirm that you wish to delete the port. 2. Click on the [Yes] button. The port will be deleted. 3. Click on the [OK] button.
-
Page 27: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
