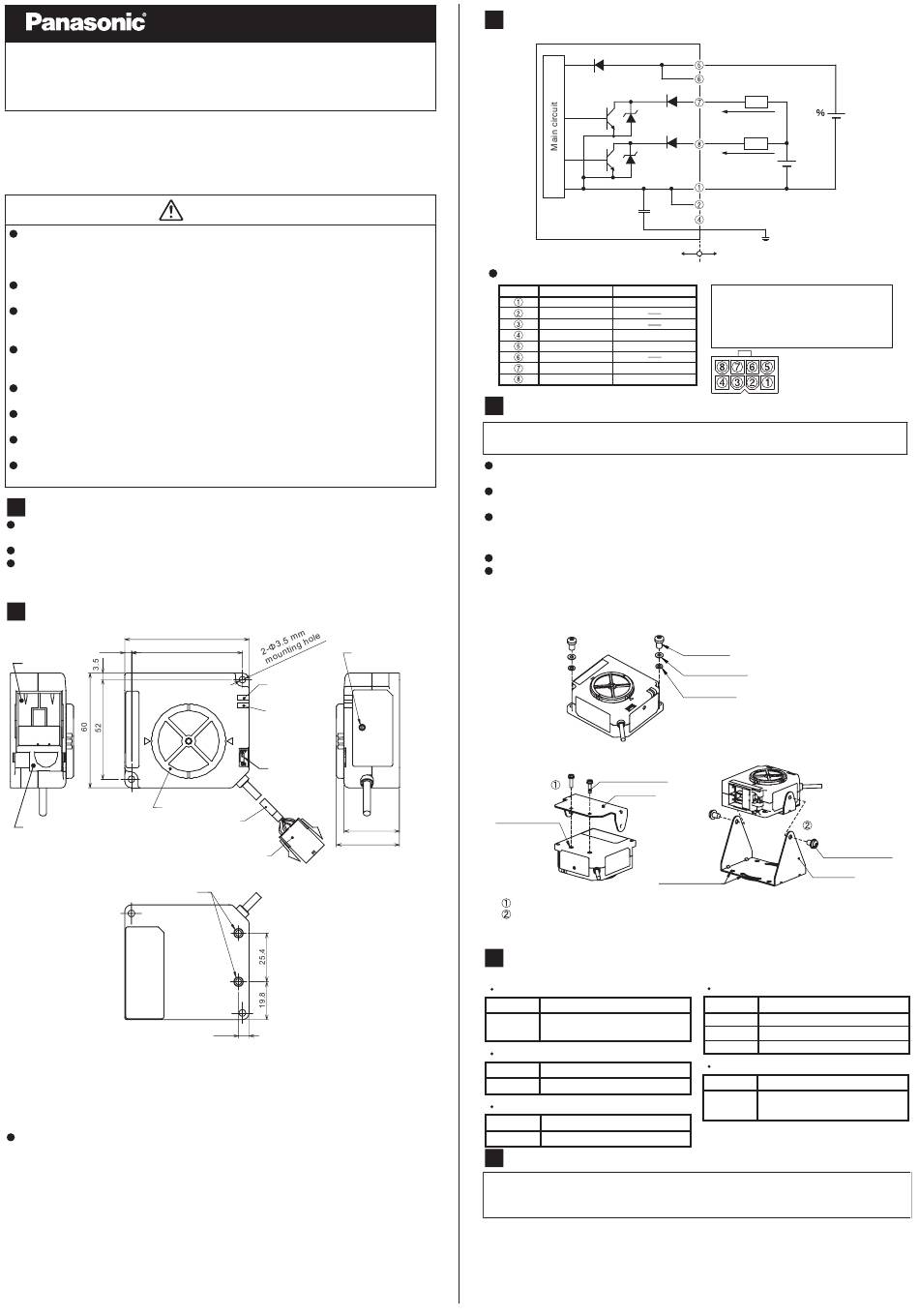

Panasonic ER-Q Instruction Manual

Static Remover Ultra-compact Fan Ionizer
Thank you very much for using Panasonic products. Please read this
Instruction Manual carefully and thoroughly for the correct and optimum use
of this product. Kindly keep this manual in a convenient place for quick
reference.
Never use this product with a device for personnel protection.
In case of using devices for personnel protection, use products which meet laws
or standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable
in each region or country.
Do not use this product in places where there may be a danger of fl ammable or
combustible items being present.
Clean the equipment regularly (discharge needles: about once every week, fi lter:
about once a month), otherwise optimum charge removal performance may not be
obtained and fi re or operating problems may occur.
If this product is used in an airtight room, ozone emitted from this product may be
detrimental. Therefore, in order for this product to be used in an airtight room, be
sure to keep the room ventilated.
Do not direct ionized air toward the face. Ozone may cause irritation to places
such as the nose and throat.
Since the tip of the discharge needle is sharp, take suffi cient care in handling the
discharge needle, or injuries may result.
Be sure to ground the frame ground (F.G.) terminal, otherwise electric charge
removal may not be reliable.
Take care not to let any foreign objects get into the fan air inlet, otherwise
accidents or operating problems may occur.
1 OUTLINE
This is a static charge remover which utilizes ion generation by means of corona
discharge.
It has a compact shape, so that it can be positioned either vertically or horizontally.
It is equipped with an automatic stop function which operates when the discharge
needle unit has been removed.
2 PART DESCRIPTION
3.5
Ion air outlet
Filter cover
Φ3.7 mm cable
Discharge needle unit
Connector 5559-08P
manufactured by MOLEX
2-M3 screws (depth 10 mm) (Note 2)
Notes: 1) Fan speed control
This is set to MAX fan speed at the time of shipment from the factory.
Use a precision screwdriver (-) to adjust the fan speed.
2) Screw threads exclusive for SUNX mounting brackets. Do not use them in mounting with
other products.
When mounting this product directly to a case or such, fi x it with M3 screws using 2-Φ3.5
mounting holes.
Description of indicators
Discharge indicator (DSC) ... Lights during discharge
(when ions are being generated)
Alarm indicator (ALARM) ... Lights when discharge error or discharge checking
occurs, blinks when fan error occurs.
INSTRUCTION MANUAL
ER-Q
CMJE-ERQ No.0053-70V
WARNING
65
58
Fan speed control
Alarm indicator
(red)
Discharge indicator
(green)
Power switch
5.5
3 INPUT AND OUTPUT CIRCUIT DIAGRAM
Connector pin layout diagram
Terminal no. Terminal name
4 MOUNTING
● Be sure to turn off the power before carrying out angle adjustment for this
product, otherwise accidents or problems with operation may occur.
If installing this product directly to the enclosure, use M3 screws. (M3 screws
should be arranged separately.)
If using the ER-QMS1 (optional mounting bracket), use the screws provided with
the mounting bracket.
If using SUNX mounting bracket or screws other than the ER-QMS1, do not use
screws which are longer than 10 mm, otherwise they may cause damage to
internal parts when fastened.
Tightening torques are 0.5 N ・ m for M3 screws and 1.2 N ・ m or less for M4 screws.
If using several of these products alongside each other, leave a space of 50 mm
or more between each product, otherwise product performance may be adversely
affected.
[If installing this product directly to the enclosure]
(Note 1)
[If using the ER-QMS1 (optional mounting bracket)]
2-M3 screw
29
(depth 10 mm)
33
Install bracket 1 to the main unit with the M3 screws.
Install bracket 2 to the main unit with the M4 sems screws, and then use the M4 screw
mounting holes to install to the enclosure.
* The M3 and M4 screws are included with the ER-QMS1.
5
OPTIONS
AC adapter
Model No.
ER-VAPS1
Replacement discharge needle unit
Model No.
ER-QANT
Replacement air filter
Model No.
ER-QFX5
6 CARE AND MAINTENANCE
● Be sure to turn off the power before carrying out cleaning and maintenance.
● The discharge needle has a sharp point, so be very careful when cleaning the
needle.
● After long periods of use, dirt may adhere to the discharge needles, the area
around them and the filter. If these areas are not cleaned, charge removal
performance will drop and accidents or problems with operation may occur.
Therefore they should be periodically cleaned (discharge needles: about once
every week, fi lter: about once a month).
D
(Brown) +24 V
1
COM (+)
D
(Orange) Check output
2
Tr
1
D
ZD
(Black) Error output
3
1
Tr
2
ZD
2
(Blue) 0 V
COM(-)
Internal circuits
Lead wire color
0 V Blue
COM (-)
N.C. (Not used)
F.G. Green
24 V Brown
COM(+)
Check output Orange
Error output Black
M3 screw
Spring washer
Flat washer
M3 sems screw
Bracket 1
M4 screw
mounting hole
Cable with connectors
Model No.
Details
ER-QCC2
IN: 100 to 240 V AC, 50/60 Hz, 40 VA
OUT: 24 V DC, 750 mA ER-QCC5
Mounting bracket
Details
Model No.
Unit with tungsten needles
ER-QMS1
Details
5-piece air filter set
Load 24 V DC
±10
50 mA MAX
Load
50 mA MAX
30 V
DC MAX
(Green) F.G.
User's circuits
D : Power supply reverse connection
1
protection diode
D , D : Output protection diodes
2 3
ZD , ZD : Surge voltage absorption Zener diodes
1 2
Tr , Tr : NPN output transistors
1 2
Front view
M4 sems screw
Bracket 2
Details
Cable length 2 m
Cable length 5 m
Details
Mounting bracket for air
direction adjustment
