Introduction
The self-check UV Scanner is used for continuous gas or
oil flames. A mechanical shutter in the scanner closes
briefly every ten seconds, at which time the scanner's
internal circuit checks for a flame signal. If a signal is
present, indicating a failed sensor, the output signal to the
flame safeguard is stopped and the system shuts down.

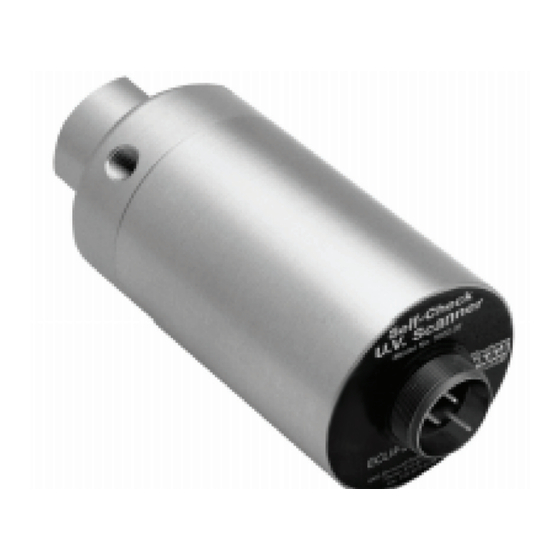

The scanner features a high quality fused silica quartz
lens, machined alloy housing with seals and a long life
push-pull electromagnetically driven photo shutter. This
scanner operates with the series 5600 and VF56 series
Veri-Flames, the series 6000 Multi-Flame, Series 6500 Bi-
Flame controllers, and series 7000 Peek-A-Flame.

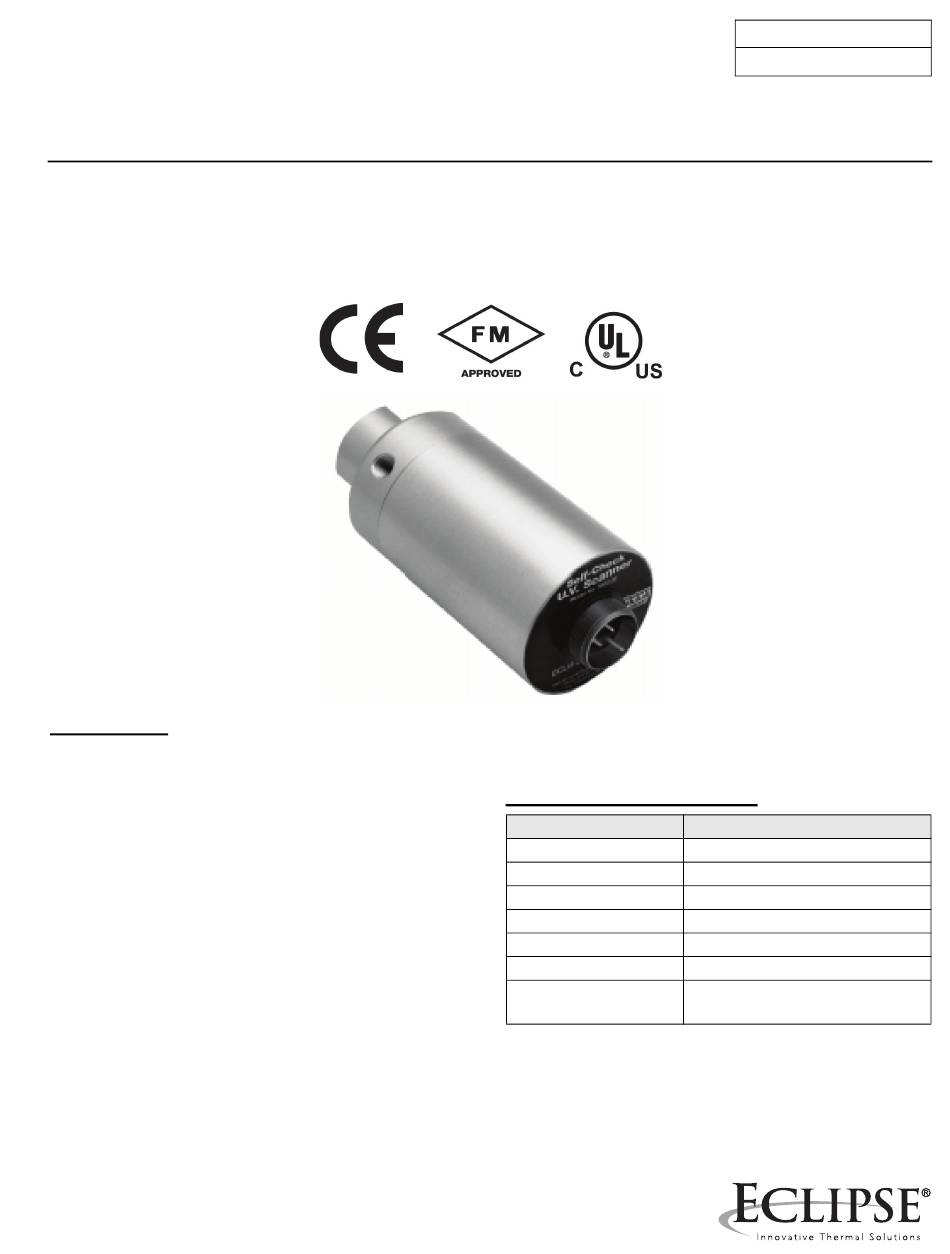

Eclipse Self-Check
Factory Mutual (FM) recommends these scanners be
used when any fired equipment is operated continuously
(more than 24 hours without shutdown).
Mechanical Specifications
Parameter
Overall Length
Diameter
Housing Material
Finish
Sight Tube Entrance 1" NPT
Purge Air Entrance
Purge Air Flow
856 Instruction Manual
UV Scanner
Model 5602-91
Specification
7-3/4" (197mm)
3-1/4" (83mm)
Aluminum
Clear anodized
1/4" NPT
5 cfm, 10 psi maximum (140
lpm, 0.7mbar)
10/18/2010
Version 1
Advertisement
Related Manuals for Eclipse 5602-91
Summary of Contents for Eclipse 5602-91
- Page 1 856 Instruction Manual 10/18/2010 Eclipse Self-Check UV Scanner Model 5602-91 Version 1 Introduction Factory Mutual (FM) recommends these scanners be used when any fired equipment is operated continuously The self-check UV Scanner is used for continuous gas or (more than 24 hours without shutdown).
-
Page 2: Electrical Specifications
16, 19 20) Neutral Neutral Neutral Neutral Neutral Neutral Neutral white 120 VAC 120 VAC 120 VAC 120 VAC 120 VAC 120 VAC 120 VAC black green Gnd Return shields Ground Eclipse Self-Check UV Scanner, V1, Instruction Manual 856, 10/18/2010... - Page 3 UV light. If necessary, mask the offending nozzle, see Figure 2. Certain unburned hydrocarbons, oil background source by use of an orifice. mist, recirculated flue gas or other contaminants may mask and absorb the ultraviolet radiation. Eclipse Self-Check UV Scanner, V1, Instruction Manual 856, 10/18/2010...
-
Page 4: Test Procedures
The Eclipse flame control sequence does not control cover. Connect the negative probe to the GND or interrupt the spark upon flame detection until after the trial terminal for the "D"... -
Page 5: Maintenance
(at temperature) conditions. 3. Perform the Main Flame Failure Test under these conditions and verify that the control shuts down in less than 4 seconds after visually observing that the flame extinguished. Eclipse Self-Check UV Scanner, V1, Instruction Manual 856, 10/18/2010... - Page 6 Dimensions in inches (mm) Ø3.2 (81.3) 7.5 (190.5) Ø2.0 (50.8) 6.8 (172.7) 1.8 (45.7) 1.7 (43.2) 1-3/8" - 18 EXT 1/4" - 18 NPT 1" NPT INTERNAL 856 Instruction Manual, 10/18/2010...
