Bag, Chute And Tube Installation - Simplicity 1695163 Operator's Manual

Cover Installation
A
B

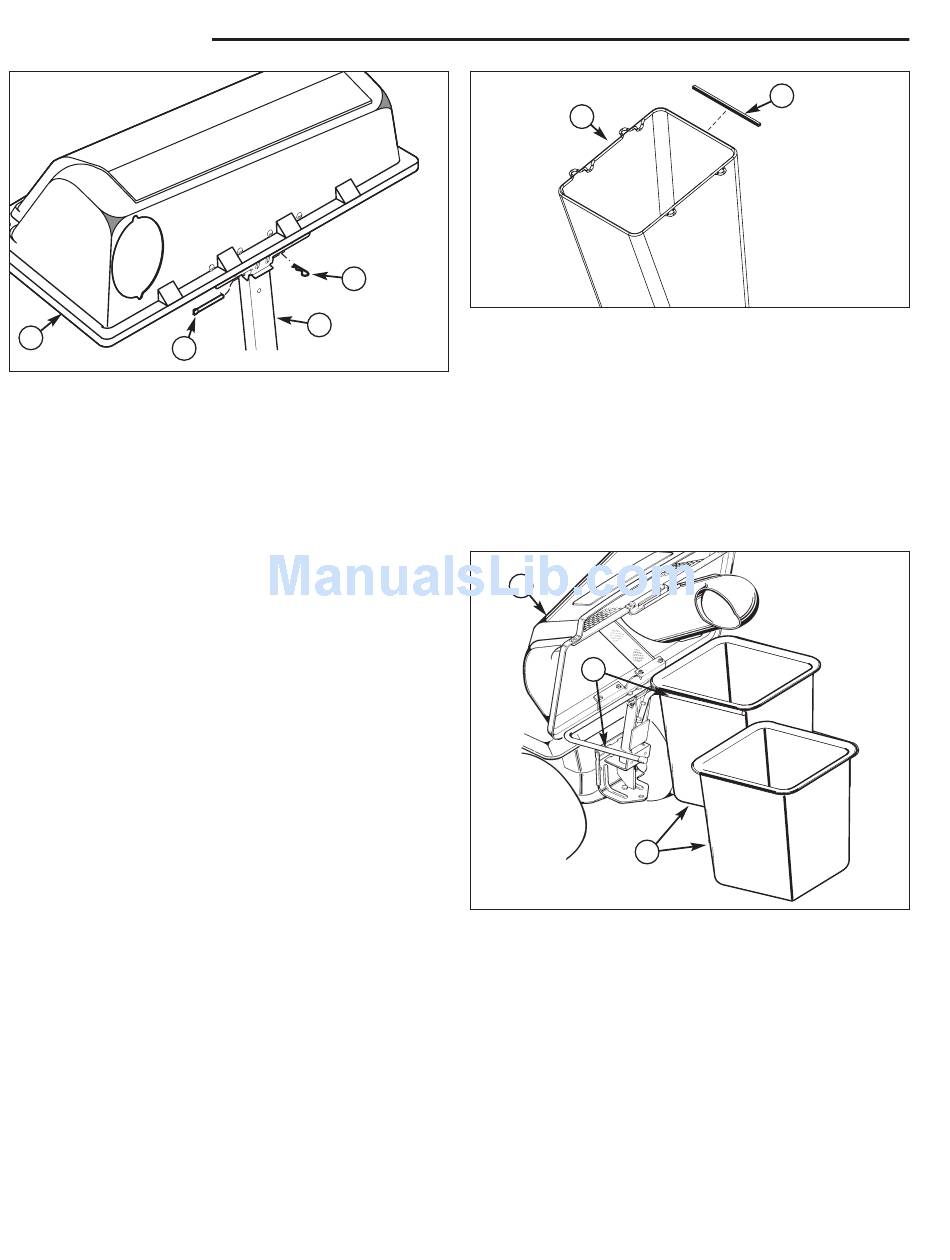

Figure 11. Install Cover to Channel Assembly
A. Cover
B. Pin
C. Hair Pin
D. Channel Assembly
INSTALL COVER TO CHANNEL ASSEMBLY
1. Set the cover (A, Figure 11) on channel assembly.
Slide pin (B) through hinge on cover and channel
assembly (D) securing with hair pin (C).
INSTALL CLIP TO BAG ASSEMBLY
1. Slide the white bar (A, Figure 12) onto smooth edge
of bag frame and assembly (B) as shown.

Bag, Chute and Tube Installation

INSTALL COLLECTOR BAGS
1. Raise the cover (A, Figure 13).
2. Slide collector bags (B) onto tubes (C) with the white
bar towards the rear.
Note: It may be necessary to fold seat forward to allow
cover to stay in the raised position.
C
Figure 12. Install White Bar to Bag
D
A. White Bar
B. Bag Assembly
Figure 13. Install Collector Bags
A. Cover
B. Collector Bags
C. Tubes
8
B
A
C
B
A
