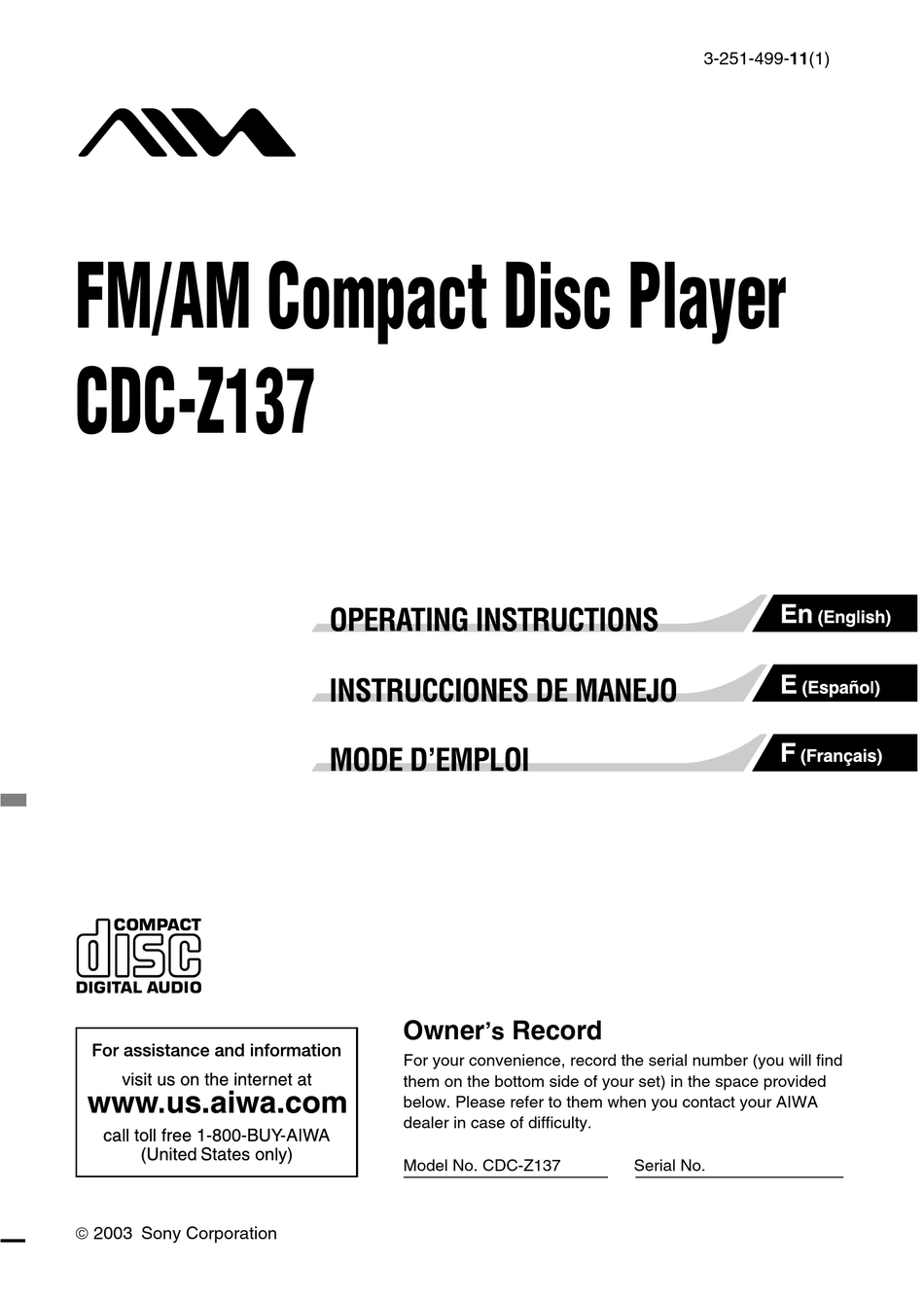

For your convenience, record the serial number (you will find them on the bottom side of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty. Model No. CDC-Z137 Serial No.
PRECAUTIONS TABLE OF CONTENTS • Use only in a 12-volt DC negative-ground electrical BASIC OPERATION, AUDIO AND CLOCK system. ADJUSTMENT ............. 2 • Disconnect the vehicle’s negative battery terminal RADIO OPERATION ..........3 while mounting and connecting the unit. CD PLAYER OPERATION ........4 •...
BASIC OPERATION, Press SEL repeatedly to select the mode to be adjusted. AUDIO AND CLOCK Pressing SEL cycles through the modes. The selected mode’s indicator appears. ADJUSTMENT Turn Jog dial to increase/decrease the level or to select on/off for the selected mode. PWR/ATT Note Jog dial (PUSH-SOURCE)
Monaural mode Setting the clock When signals become weak, or FM reception becomes poor, the unit automatically switches to Monaural mode Press and hold DSPL until the clock indicator to reduce noise. flashes in the display. Press + (to set hour) or – (to set minute), and then Local mode turn Jog dial.
Presetting stations manually Labeled-side up (Manual Memory) Press TU (TUNER) repeatedly to select the desired band (FM1, FM2, FM3, AM1, or AM2). Press + or – to tune in to a desired station (see “Tuning in to a station” as well for another tuning method).
Displaying the VU level indicator Shuffle Play You can play all the tracks in random order. Turn off the unit. Press SHUF during CD play. Press and hold PS until “VU” appears in the display. “SHUF” appears on the display. Turn Jog dial to select on (level indicators appear) To cancel Shuffle Play, press SHUF again.
SPECIFICATIONS RADIO SECTION (FM) Frequency Range: 87.5 MHz – 108 MHz Usable Sensitivity: 12.7 dBf 50 dB Quieting Sensitivity: 17.2 dBf IF Rejection: 100 dB Frequency Response: 30 Hz – 15,000 Hz S/N Ratio: 70 dB Stereo Separation: 35 dB at 1 kHz Alternate Channel Selectivity: 90 dB Capture Ratio: 3 dB (AM)
Page 8
WARRANTY PERIODS During the applicable LABOR warranty period, Aiwa will pay labor and service charges for the repair of defects or, at its option, will replace a defective product with a new or remanufactured equivalent product.
