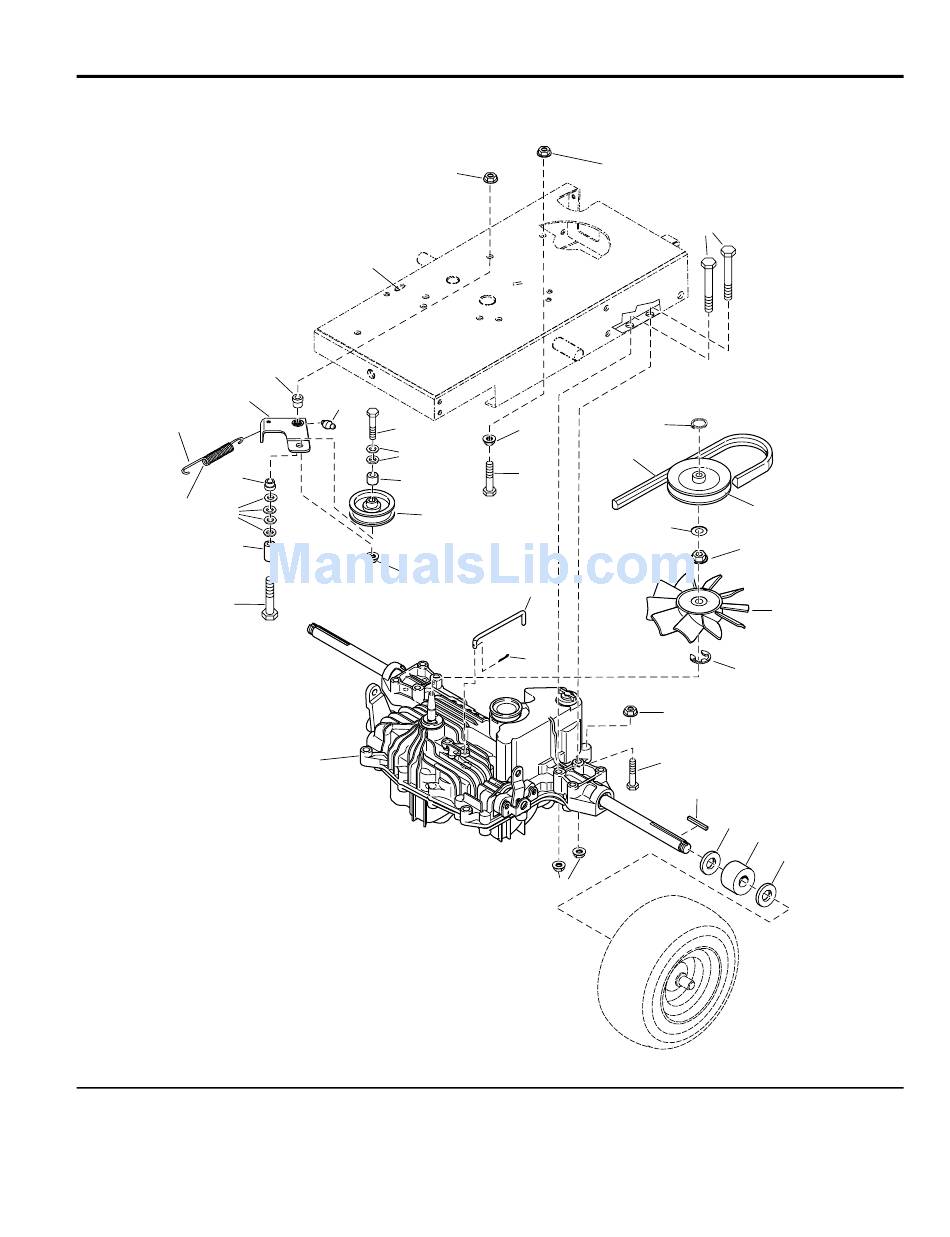

Transmission Group - Simplicity Lancer / 4400 Parts Manual

Transmission Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
6
Attach to
slot "A"
4
5
6 3
2
1
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
