EUROPEAN MODEL
MIDDLE MARKET
CUTTING WIDTH
ENGINE HP
E - European Model
25 - 25" Cutting Deck
M - Middle Market
28 - 28" Cutting Deck
Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and pay
particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in
accordance with the operating instructions and common sense!
COPYRIGHT © 2000
SNAPPER INC.
ALL RIGHTS RESERVED

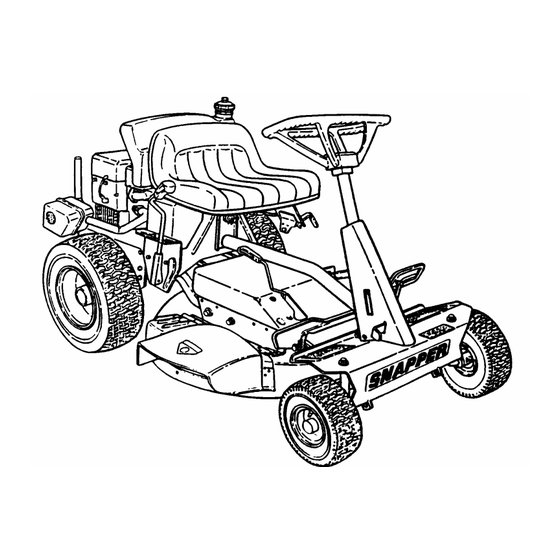

Safety Instructions & Operator's Manual for
REAR ENGINE RIDING MOWER
MODEL NUMBER EXPLANATION
E
M
08 - 8.0 HP Engine
10 - 10.0 HP Engine
28
10
21
21 - Series
Designation
EUROPEAN
SERIES 21
MODEL
EM250821BE
EM281021BE
B
E
ENGINE OPTIONS
SERIES DESIGNATION
B - Briggs Engine
MANUAL No. 7-3545 (I.R. 3/29/00)
ENGINE TYPE
E - Electric Start
Advertisement
Table of Contents
Related Manuals for Snapper EM250821BE, EM281021BE
Summary of Contents for Snapper EM250821BE, EM281021BE
- Page 1 M - Middle Market 28 - 28” Cutting Deck Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all power equipment can be dangerous if used improperly.
-
Page 2: Important Safety Instructions
If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: (1-800-935-2967). -
Page 3: Important Safety Instructions
14. Have machine serviced by an authorized repair SNAPPER dealer at least once a year and have the dealer install any new safety devices. 15. Use only genuine SNAPPER replacement parts assure SLOWLY maintained. -
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ...2-3 TABLE OF CONTENTS... 4 SECTION 1 - FAMILIARIZATION...5-7 Decals / Symbols...6-7 SECTION 2 - OPERATING INSTRUCTIONS ...8-14 Pre-start Checklist ...8 Operator’s Seat Adjustment...8 Starting & Stopping Engine, Blade & Wheel Drive ...9-13 Starting & Stopping Mower Blades ...11-12 Starting &... -
Page 5: Section 1 - Familiarization
DECK FIGURE 1.1 1.2 NOMENCLATURE The nomenclature drawing above, Figure 1.1, shows the essential parts of the SNAPPER Rear Engine Rider. It is recommended that all operator’s of this equipment become components, and operation of this machine before operating. Specific details involving the engine are found in the separate engine owner’s manual. -
Page 6: Decals / Symbols
Section 1 – FAMILIARIZATION – DECALS / SYMBOLS BLADE ENGAGED POSITION “ON” BLADE LEVER POSITION SYMBOLS BLADE DISENGAGED POSITION “OFF” ENGINE SPEED CONTROL SYMBOLS CHOKE POSITION RABBIT “FAST” ENGINE SPEED CONTROL TURTLE “SLOW” KEY SWITCH POSITION SYMBOLS GUARD WARNING 29784 DO NOT operate without entire Grass Catcher or Guard in place SERIAL NUMBER... - Page 7 Section 1 – FAMILIARIZATION – DECALS / SYMBOLS TRANSMISSION SHIFT FAST LEVER SYMBOLS MACHINE FRONT SLOW NEUTRAL REVERSE MACHINE REAR LOWEST HEIGHT OF BATTERY CAUTION DECAL - 15691 HIGHEST HEIGHT OF HEIGHT OF CUT DECAL - 46218 AUTOMATIC BLADE STOP DECAL - 24072 BATTERY STORAGE DECAL - 29948 SAFETY INSTRUCTION...
-
Page 8: Section 2 - Operating Instructions
Section 2 - OPERATING INSTRUCTIONS 2.1 PRE-START CHECK LIST Make the following checks and perform the service required before each start-up. 2.1.1. Check tires and add or release air as needed to bring pressure to 12 psi in front and 12 psi in rear tires. -
Page 9: Starting & Stopping Engine, Blade & Wheel Drive
Section 2 - OPERATING INSTRUCTIONS 2.3 STARTING & OPERATION 2.3.1. ENGINE (ELECTRIC START) IMPORTANT: When the ignition key is turned to “START”, the engine will turn over, but will not start unless the Clutch/Brake pedal is pressed all the way down, the Blade Lever is in the “Off”... -
Page 10: Starting & Operation
Section 2 - OPERATING INSTRUCTIONS 2.3 STARTING & OPERATION 2.3.1. ENGINE (ELECTRIC START) (Continued) 8. Should the battery be too weak to start the engine, Refer to Section “ENGINE (MANUAL START)” to manually start the electric start engines. 2.3.2. ENGINE (MANUAL START) IMPORTANT: When the ignition key is turned to “RUN”, and the recoil handle is pulled, the engine will turn over, but will not start unless the... -
Page 11: Starting & Stopping Mower Blades
3 seconds, the blade brake must be adjusted. Refer to Section “BLADE BRAKE ADJUSTMENT” for adjustment procedures or return machine to an authorized SNAPPER dealer for adjustment. DO NOT CONTINUE to operate machine until blade brake is adjusted and functioning properly. - Page 12 3 seconds, the blade brake must be adjusted. Refer to Section “BLADE BRAKE ADJUSTMENT” for adjustment procedures or return machine to an authorized SNAPPER dealer for adjustment. DO NOT CONTINUE to operate machine until blade brake is adjusted and functioning properly.
-
Page 13: Parking Brake
Section 2 - OPERATING INSTRUCTIONS 2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE 2.4.4. PARK BRAKE 1. Engage park brake by pushing clutch/brake pedal “DOWN” and moving the park brake latch to the “ENGAGED” position. While holding the park brake latch “ENGAGED”, release clutch/brake pedal to set park brake. -
Page 14: Reverse Lockout Mechanism
DO NOT operate machine if Reverse Lockout Mechanism is not functioning properly. Contact your local Snapper dealer for assistance. Reverse Lockout Mechanism Override Stop machine. Stop blade. Depress and hold Override Lever. -
Page 15: Section 3 - Maintenance Instructions
SNAPPER dealer annually for inspection and addition of any new devices which might upgrade the safety of the Rear Engine Rider. For the nearest SNAPPER dealer in your area, check the yellow pages under the heading LAWN MOWERS. For engine parts and service, look for the engine manufacturer’s dealers... -
Page 16: Check Blade Drive Belt
2. If the blade continues to rotate longer than 3 seconds do not operate machine. Refer to Section “BLADE BRAKE ADJUSTMENT” or contact your SNAPPER dealer for assistance. 3.2.6. SERVICE BRAKE / PARK BRAKE 1. Check machine brake for proper function. -
Page 17: Check Interlock System
Blade Control “ON” and/or clutch/brake pedal is released. WARNING DO NOT operate machine if interlock system is not functioning properly. Contact your SNAPPER dealer immediately for assistance. 3.2.8. REVERSE LOCKOUT MECHANISM Check function of Reverse Lockout Mechanism with engine off. -
Page 18: Front Wheel Bearing - Lubrication
2. To check lubricant, remove fill/level plug and visually inspect for lubricant on the internal parts of the differential. If no lubricant is visible on the internal parts of the differential, add “SNAPPER Transmission” grease as needed. See Figure 3.8. IMPORTANT: Overfilling of the differential with lubricant will cause lubricant to leak onto drive components of the Rear Engine Rider. -
Page 19: Service – Every 25 Operating Hours
Figure 3.9. 4. To check lubricant in chain case, remove fill/level plug and look for lubricant on the internal components of the chain case. If no lubricant is visible, add "SNAPPER Transmission” grease as needed. See Figure 3.9. CHAIN CASE FILL/LEVEL PLUG P.N. -
Page 20: Storage - Out Of Season
Section 3 - MAINTENANCE WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. -
Page 21: Section 4- Adjustments And Repair
However, if there is difficulty in achieving these adjustments and repairs, it is recommended that these repairs be made by an authorized SNAPPER dealer. 4.2.1. MOWER DRIVE BELT ADJUSTMENT (FOR 25”, 28" & 30" "M" MODELS) 1. -
Page 22: Blade Brake Adjustment
3 seconds, the blade brake must be adjusted. Refer to Section “BLADE BRAKE ADJUSTMENT” for adjustment procedures or return machine to an authorized SNAPPER dealer for adjustment. DO NOT CONTINUE to operate machine until blade brake is adjusted and functioning properly. -
Page 23: Mower Deck Adjustment (Front To Rear Levelness)
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. -
Page 24: Wheel Brake Adjustment
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. -
Page 25: Mower Blade Replacement
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. -
Page 26: Blade Drive Belt Removal/Replacement
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. -
Page 27: Battery Removal, Replacement, Service
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. - Page 28 Section 4 - ADJUSTMENTS & REPAIR WARNING The electrolyte (acid) produces a highly explosive gas. Keep all sparks, flame and fire away from area when charging battery or when handling electrolyte or battery. Electrolyte (acid) is a highly corrosive liquid. Wear eye protection.
-
Page 29: Accessories
100% Charged 75% Charged 50% Charged 25% Charged 0% Charged SNAPPER REAR ENGINE RIDER ACCESSORIES PART NO. DESCRIPTION OF KIT 6-0517... Wheel Weight (8” Wheels) ... All Rear Engine Riders 6-0601... Smooth Start Clutch... All Rear Engine Riders 6-0697... Dump Cart... All Rear Engine Riders 6-1400... -
Page 30: Troubleshooting
1. Fill fuel tank with fresh fuel to proper level. 2. Move choke control to “CHOKE” position. 3. Place spark plug wire onto spark plug. 4. Contact authorized SNAPPER dealer. 5. Engage park brake. 6. Turn ignition switch to the ON position. - Page 31 PROBABLE CAUSE CORRECTIVE ACTION 1. Replace drive disc. 2. Adjust rubber drive disc. 3. Replace with SNAPPER tapered bolt & nut. 4. Contact authorized SNAPPER dealer. 5. Contact authorized SNAPPER dealer. 1. Move lever to the “ON” position. 2. Adjust or replace mower belt.
-
Page 32: Maintenance Schedule
SUBJECT SERVICE TO BE PERFORMED Engine Check Oil Level Engine Initial Oil Change Engine Periodic Oil Change Air Pre-Cleaner Service Sponge Pre- Cleaner Element Air Cleaner Replace Element Spark Plug Replace Plugs Fuel Filter Replace Filter Engine Cooling Clean Shrouds & Fins System Battery Check Electrolyte... -
Page 33: Maintenance/Replacement Parts
MAINTENANCE/REPLACEMENT PARTS MAINTENANCE PARTS Engine Speed Control (Briggs Engine) Clutch/Brake Cable Brake Cable 25” Cutter Blade (Standard - Not Air Lift Compatible) 25” Cutter Blade (Standard - Air Lift Compatible) 25” Cutter Blade (Mulching) 25” Cutter Blade (Ninja - Quad Edge) 28”... -
Page 34: Warranty
For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both. - Page 35 SERVICE NOTES ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 36 SERVICE NOTES ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 37 Read, Understand, and Follow all warnings and instructions in this manual, the engine manual, and on the machine, engine and attachments. If you have any questions about your Snapper product, contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough, GA.
