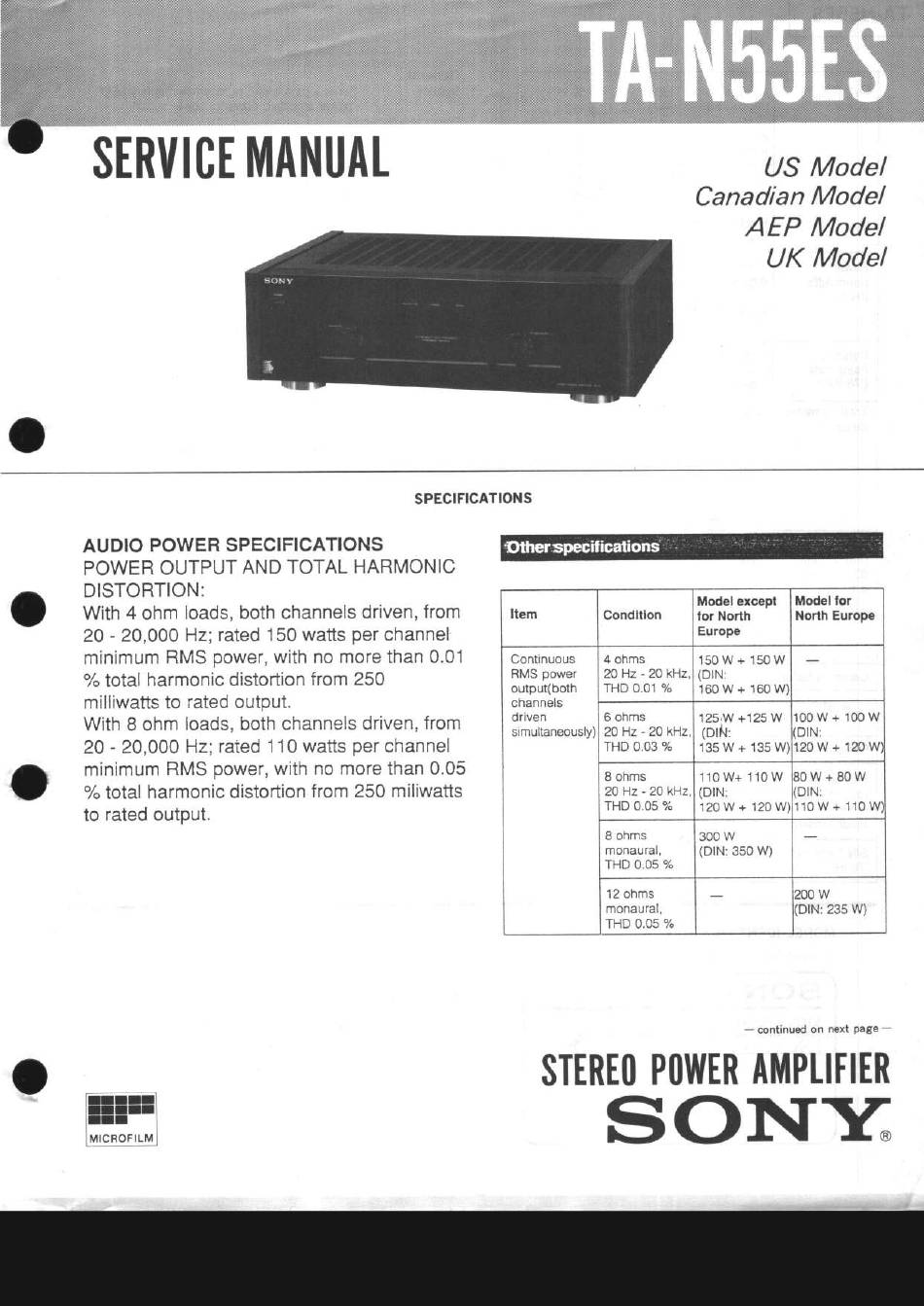

Sony TA-N55ES Service Manual

SERI|ICE
MANUAL
US Model
Canadian Model
AEP Model
UK Model
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 4 ohm loads, both channels driven, from
20 - 20,000 Hz; rated 150 watts per channel
minimum RMS power, with no more than 0.01
% total harmonic distotlion from 250
milliwatts to rated output.
With 8 ohm loads, both channels driven, from
20 - 2A,000 Hz: raied 110 watts per channel
minimum RMS power, with no more than 0.05
% total harmonic distortion from 250 miliwatts
to rated output.
- continued on next page -
?
STEREO
POIIJER AMPLITI
Item
Condltlon
Model excepl
lor North
Europe
Model for
North Europe
Continuous
RMS power
output(both
cnannets
driven
simultaneously)
4 ohms
20 Hz - 20 kH.z,
THD 0.01 %
1 5 0 W + 1 5 0 W
(DrN:
' 1 6 0 W + 1 6 0 W
6 ohms
20 Hz - 20 kHz,
THD 0.03 %
1 2 5 , W + 1 2 5 W
(otl.t,
1 3 5 W + 1 3 5 W ]
1 0 0 W + 1 0 0 W
(DrN:
1 2 0 W + 1 2 0 W
8 ohms
20 Hz - 20 kllz
THD 0.05 %
1 1 0 W + 1 1 0 W
( D r N :
1 2 0 W + 1 2 0 W '
l 0 W + 8 0 W
, D I N :
1 1 0 W + 1 1 0 W
8 ohms
monaural,
THD 0.05 o/.
300 w
(DlN: 350 W)
1 2 o h m s
monaurat,
THD 0.05 o/o
200 w
'DlN:
235 W)
