Snapper 2806 Installation Instructions

INSTALLATION
Nate: Electric Lift Kit (1692032)
1714G tractors for all rear-mounted attachments.
1. Install the upper hitch assembly (A, figure 1) to the rear
tractor frame using four spacers (B), washers (C) and
1/2-13x 2 l/2" capscrews (D). Secure on inside of frame
with l/213 nyloc nuts. The front capscrews are mounted
in the top frame holes and the rear capscraws are
mounted in the bottom frame holes as shown in figure 1.
2. Install the lower hitch assembly (E) to the tractor drawbar
Secure the lower hitch brace to the rear frame using two
3. After the electric lift is installed, the lift rod (A, figure 2) will
be installed to the upper hitch as shown in figure 1 and to
the lift arm assembly using a clevis pin (B) and safety clip
(C) as shown in figure 2.
Note: If tire chains are to be used for tiller operation, rear
wheels should be inverted for additional clearance between
RH wheel/chain and tiller lift rod.

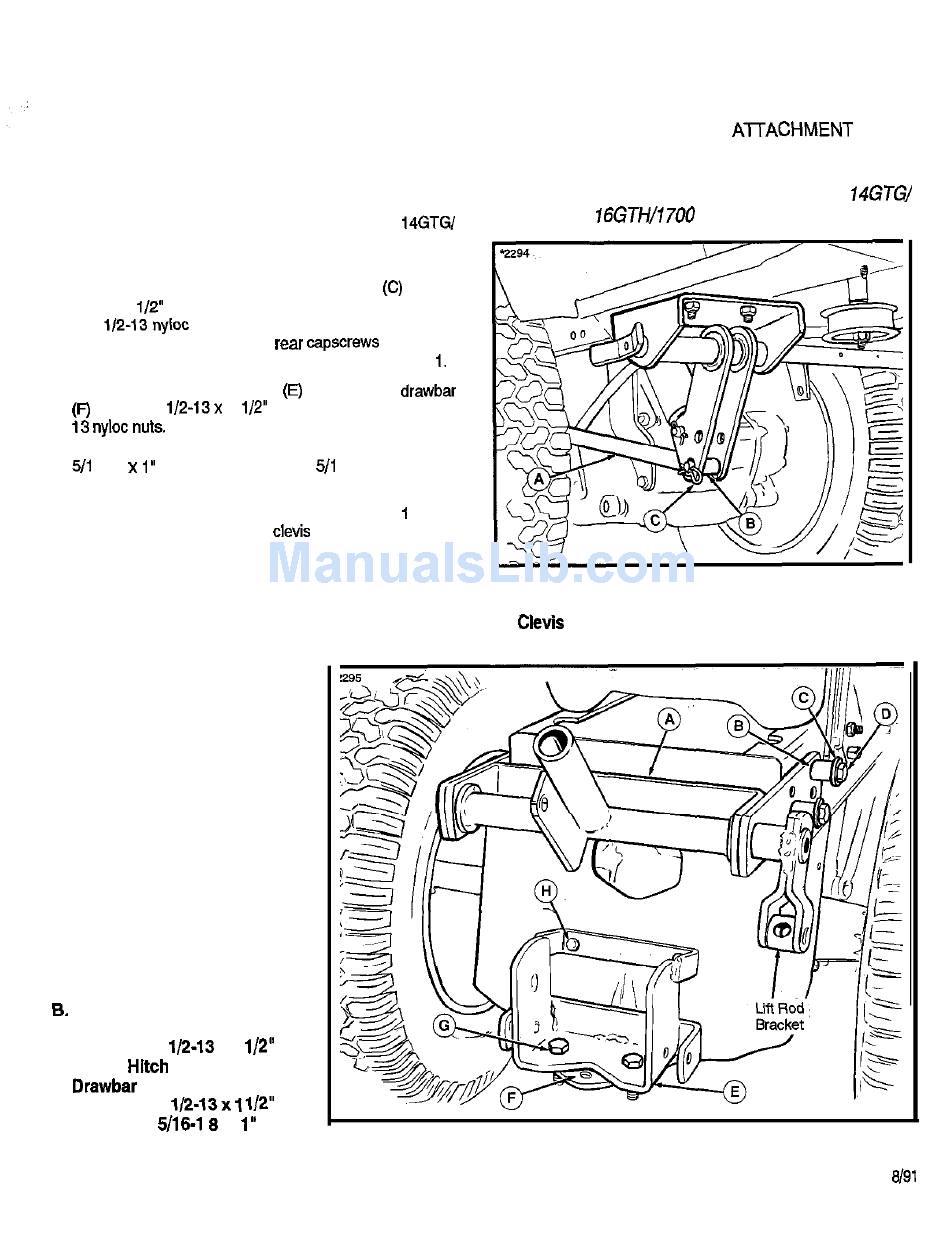

FIGURE 1. Rear Hitch
A. Upper Hitch Assembly
C. Washers
D. Capscrews, 112-13 x 2 l/2"
E. Lower Hitch Assembly
F. Drawbar
G. Capscrews, 1/2-13x 1 l/2"
H. Capscrews, 5116-l 8 x 1"
must be installed on 14GTG/
REAR A-ITACHMENT HITCH
Rear hitch required for mounting tiller to 14GTG/
FIGURE 2. Electric Lift
A. Lift Rod
B. Clevie Pin
C. Safety Clip
INSTALLATION
INSTRUCTIONS
MFG. NO. 1692010
Form 1707679
