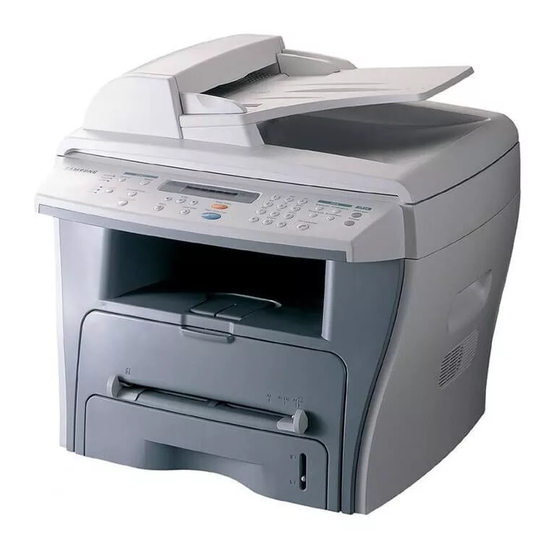

Samsung SCX-4216F Getting Started

Lazer facsimile
Hide thumbs Also See for SCX-4216F:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
A.6
P
F
RINTING
ROM A
Using Advanced Printing Features
The SAMSUNG SPL II Printer window contains five categories of
advanced properties. Listed below is the name of each property.
- Darkness/Quality
- Layout
- Color
- Background Printing
- Paper Source

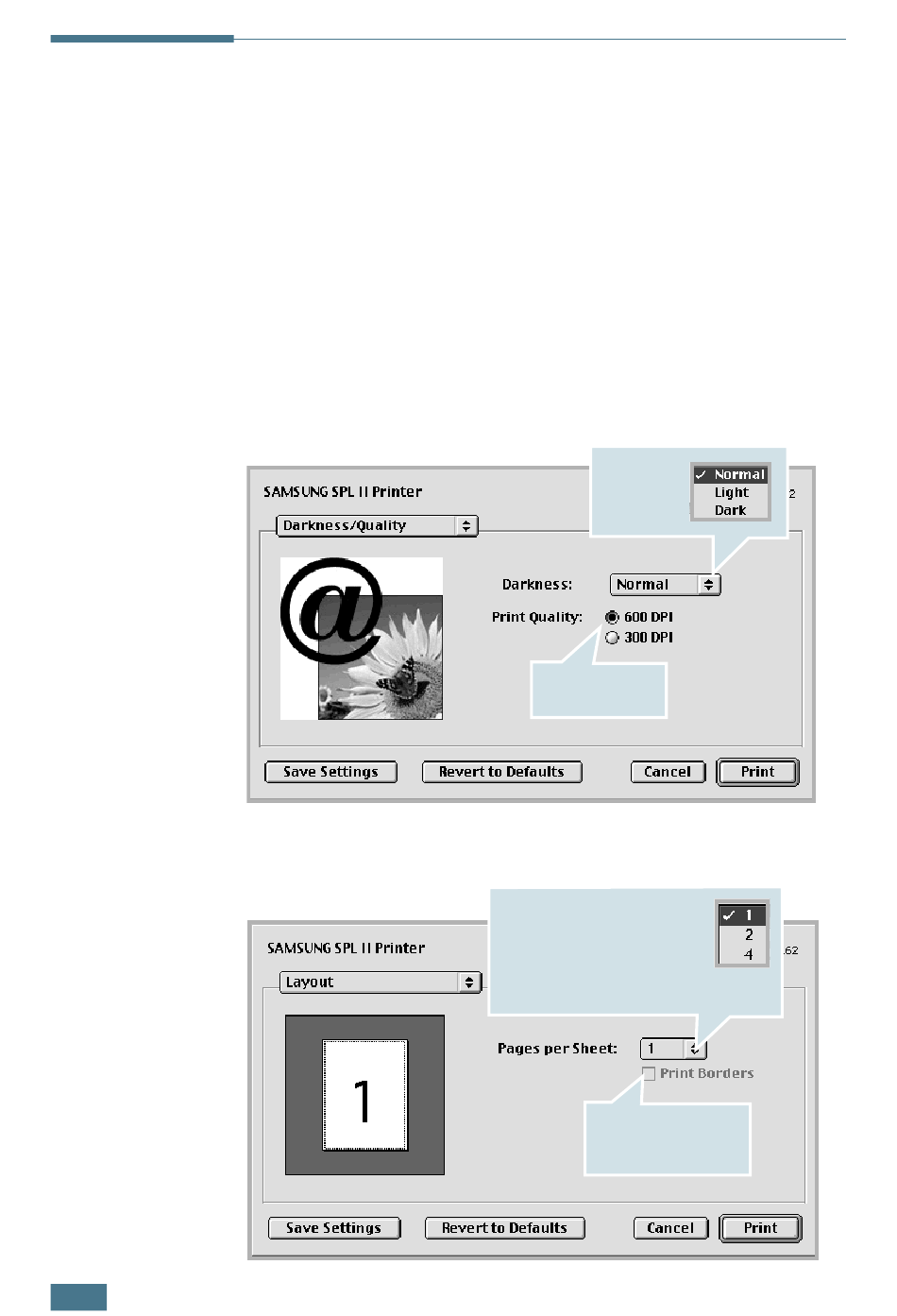

The following figures display each property in the SAMSUNG
SPL II Printer window.
Darkness/Quality
Layout
M
ACINTOSH
Select the
print
darkness.
Select the print
resolution.
Select the number of pages
you want to print on one
sheet of paper. The pages
will appear decreased in
size and arranged on the
sheet.
To print the border
of each page, check
this box.

Advertisement

Table of Contents
loading

Related Manuals for Samsung SCX-4216F

Summary of Contents for Samsung SCX-4216F

  • Page 1 Using Advanced Printing Features The SAMSUNG SPL II Printer window contains five categories of advanced properties. Listed below is the name of each property. - Darkness/Quality - Layout - Color - Background Printing - Paper Source The following figures display each property in the SAMSUNG SPL II Printer window.

  • Page 2: Print

    Color Select the grayscale mode. œ Black&White œ Grayscale Background Printing Turns background printing on or off. Select priority for your print job in the queue of jobs waiting to print, click one of the following: • Urgent: to print before any Normal priority job. •...

  • Page 3: Print

    Paper Source Select the corresponding paper source. If Auto Select is set, the machine automatically selects the print material from the paper tray, according to the following order: the Bypass tray and the paper tray. RINTING ROM A ACINTOSH...

  • Page 4: General

    PECIFICATIONS This chapter includes: • General Specifications • Scanner and Copy Specifications • Printer Specifications • Facsimile Specifications (For SCX-4216F) • Paper Specifications...

  • Page 5: Paper

    General Specifications Item Description Automatic document Up to 30 sheets (20 lb, 75 g/m feeder (for SCX-4116/4216F) Width: 142 to 216 mm (5.6 to 8.5 inches) ADF Document size (for SCX-4116/4216F) Length: 148 to 356 mm (5.8 to 14 inches) Paper tray: 250 sheets (weight: 75 g/m , 20 lb) Paper input capacity...
  • Page 6 Item Description Net: 13 (SCX-4116/4216F)/11.7 (SCX-4016) Kg (including consumables) Weight Gross: 17 (SCX-4116/4216F)/15.7 (SCX-4016) Kg (including consumables, accessories and package) Paper: 2.7 Kg Package Weight Plastic: 0.7 Kg Scanner and Copier Specifications Item Description Compatibility TWAIN standard Sheet-fed and Flat-bed CCD (Charge Coupled Device) Scanning method module Optical: 600 dpi (Mono and Color)

  • Page 7: Printer

    Item Description Multiple copies 99 pages Grayscale 256 levels Printer Specifications Item Description Printing method Laser Beam Printing Printing speed 17 pages per minute (Letter) Paper tray: Letter, A4, Legal, Folio, A5, A6 Bypass tray: Letter, Legal, A4, Folio, Executive, A5, A6, A6 card, Post Card 4x6, HagaKi, Envelope 7-3/4, Paper size Envelope 9, Envelope 10, Envelope DL, Envelope C5,...
  • Page 8 Facsimile Specifications (For SCX-4216F) Item Description Compatibility ITU-T Group 3, ECM Public Switched Telephone Network (PSTN) or behind Applicable line PABX MH/MR/MMR (ECM Mode) and JPEG for color fax Data coding transmission 33600/28800/21600/19200/14400/12000/9600/ Modem speed 7200/4800/2400 bps with fall back Approx.
  • Page 9 • Before purchasing large quantities of paper, insure the paper meets the requirements specified in this User’s Guide. : Using paper that does not meet these specifications may cause problems, AUTION requiring repairs. These repairs are not covered by the Samsung warranty or service agreements. Supported Sizes of Paper Paper...
  • Page 10 Paper Weight Dimensions Capacity 76 x 127 mm Minimum size (custom) 60 to 120 g/m (3 x 5 in) bond (16 to 216 x 356mm 32 lb) Maximum size (Legal) (8.5 x 14 in) • 1 sheet of paper Transparency 138 to 146 g/m for the Bypass tray...
  • Page 11 Symptom Problem with Paper Solution Jamming, damage to Do not use paper with Cutouts or perforations printer cutouts or perforations. Problems with feeding Ragged edges Use good quality paper. OTES • Do not use letterhead paper printed with low-temperature inks, such as those used in some types of thermography.
  • Page 12 Paper Output Capacity Output Location Capacity Face-down output tray 150 sheets of 75 g/m bond (20 lb) paper Face-up output slot 1 sheet of 75 g/m bond (20 lb) paper Printer and Paper Storage Environment Paper storage environmental conditions directly affect the feed operation. Ideally, the machine and paper storage environment should be at or near room temperature, and not too dry or humid.
  • Page 13 B.10 PECIFICATIONS...
  • Page 14 NDEX Numerics 2/4-up, special copy 4.11 display language, change 2-side, special copy 4.10 control panel 1.17 document jam, clear 8.2 load in ADF 4.4 ADF, load 4.4 load on document glass 4.2 auto fit, special copy 4.8 document glass clean 7.4 load 4.2 drum, clean 7.9 bypass tray, use 3.8...

  • Page 15: Table Of Contents
