The FT-50W is the wider version of
the FT-50. This version offers tool
storage and a handy carrying handle
for easy transportation and storage.
Read this instruction manual
carefully before use.
Keep this manual in hand
while you use this product.
Warranty Period : 1 year
Minoura offers 1-year limited warranty service to the original owner
of this product from the date of the purchase.
Any problems caused by the manufacturer's defect will be solved by
free repair or replacing the whole product or necessary parts.
However, any problems caused by user's misuse, unapproved
modification and disassembling, damage during use or shipping, or
expected natural wear will not be covered by this program.
Please read the enclosed warranty card for more details. And
Minoura strongly suggest to check out our web site regularly for the
latest update.
Important Notes
!
• FT-50W is a special tool for precisely maintaining the
bicycle wheel. Do not use this product for any other
purpose than instructed.
• Remove the quick release (Q/R) skewer from your
wheel before use.
• We recommend removing the tire from the wheel before
use.
• The max wheel hub width is 210mm that covers most
wide rims for fat bikes. Remove the spring from the right
side coupling axle when you mount a wide hub.
• Clamps on a standard 9mm Q/R using the side
couplings.
• 12mm or 15mm thru axle type hubs are also compatible.
Insert the supplied adapters in the hub hole for
mounting.
• Please note that a small amount of rim surface scratches
from the tips is normal. Especially on carbon or softer
metal wheels.
Contact
MINOURA JAPAN
(for ALL customers, including Canada)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Fax +81-584-27-7505
minoura@minoura.jp / www.minoura.jp
Bicycle Wheel Truing Stand
If you have question or problem on this product, please contact the shop where you originally purchase this product or
the distributor in your country first. The distributor information can be found on our web site. Only when you cannot
obtain enough service from them, you can contact Minoura directly.
FT-50
• Do not spin the wheel too fast. Rotate slowly.
• The verticality of the pillar is the most important matter
on FT-50W. Do not apply any shock or damage to the
pillars even while storing.
• Your wheels are critical to your riding safety. You assume
all responsibility for working on your wheels. Minoura
is not responsible for any issues that might arise from
truing your wheels. If you have doubts, please take your
wheels to a professional mechanic for service.
• Minoura is not responsible for any issues encountered
with your wheels after using the product. Make sure you
know what you're doing. If you have any doubts in your
abilities, consult a professional. Minoura is supplying
tool to do a job, but learning how to use this tool is your
responsibility.
MINOURA NORTH AMERICAN TECH CENTER
(for U.S. residents ONLY)
Mon - Fri, 9 am - 5 pm (PCT)
Phone 1-510-538-8599 / Fax 1-510-538-5899
support@minourausa.com
W
instruction manual
(ver.1.0 2018/10)

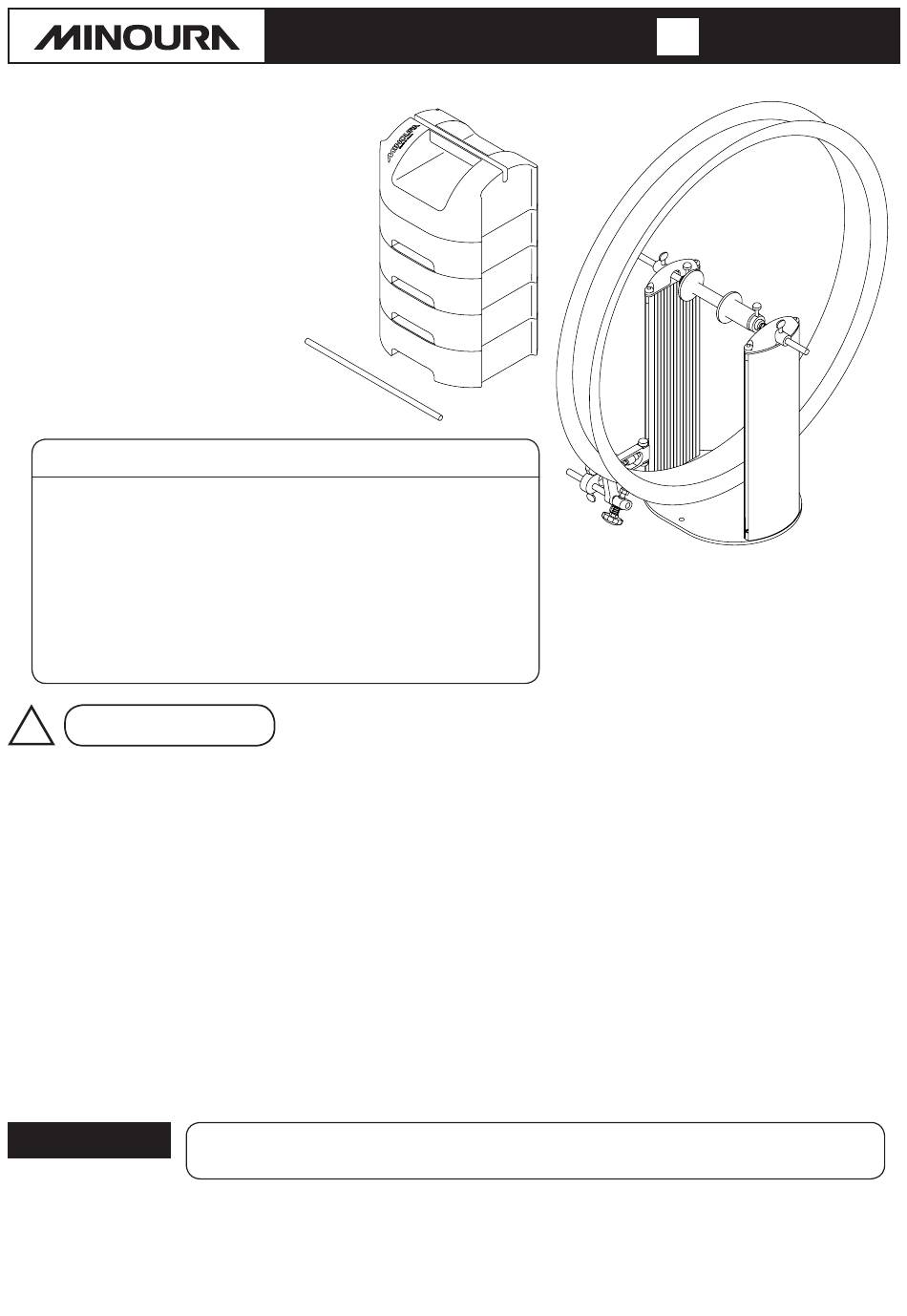

[In-Use Image with wide rim]
Made in Japan
