Page 3

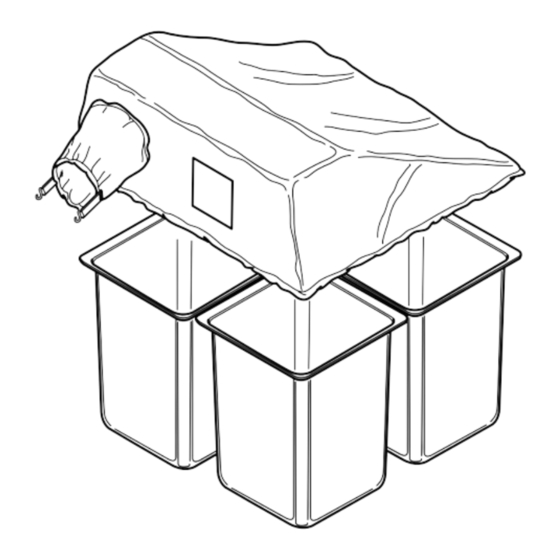

DECAL, Cleaning Instructions NUT, Hex & Washer Assembly, #10-32 WASHER, Plain, #10-32 SCREW,Truss Head Phillips, #10-32 X 1/2 HOSE, Vac Col, 6 X 12 Exhaust CLAMP, Hose 6", Band Type CORD, Shock 28" W/S-Hooks BASKET HOOD, Quadbag w/Window TP 400-3547-00-AT-SMA...
Page 4
Hardware Identification & Torque Specifications Common Hardware Types Hex Head Capscrew Carriage Bolt Standard Hardware Sizing When a washer or nut is identified as 1/2”, this is the Nominal size , meaning the inside diameter is 1/2 inch; if a second number is present it represent the threads per inch When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the Nominal size , or body diameter is 1/2 inch;...
