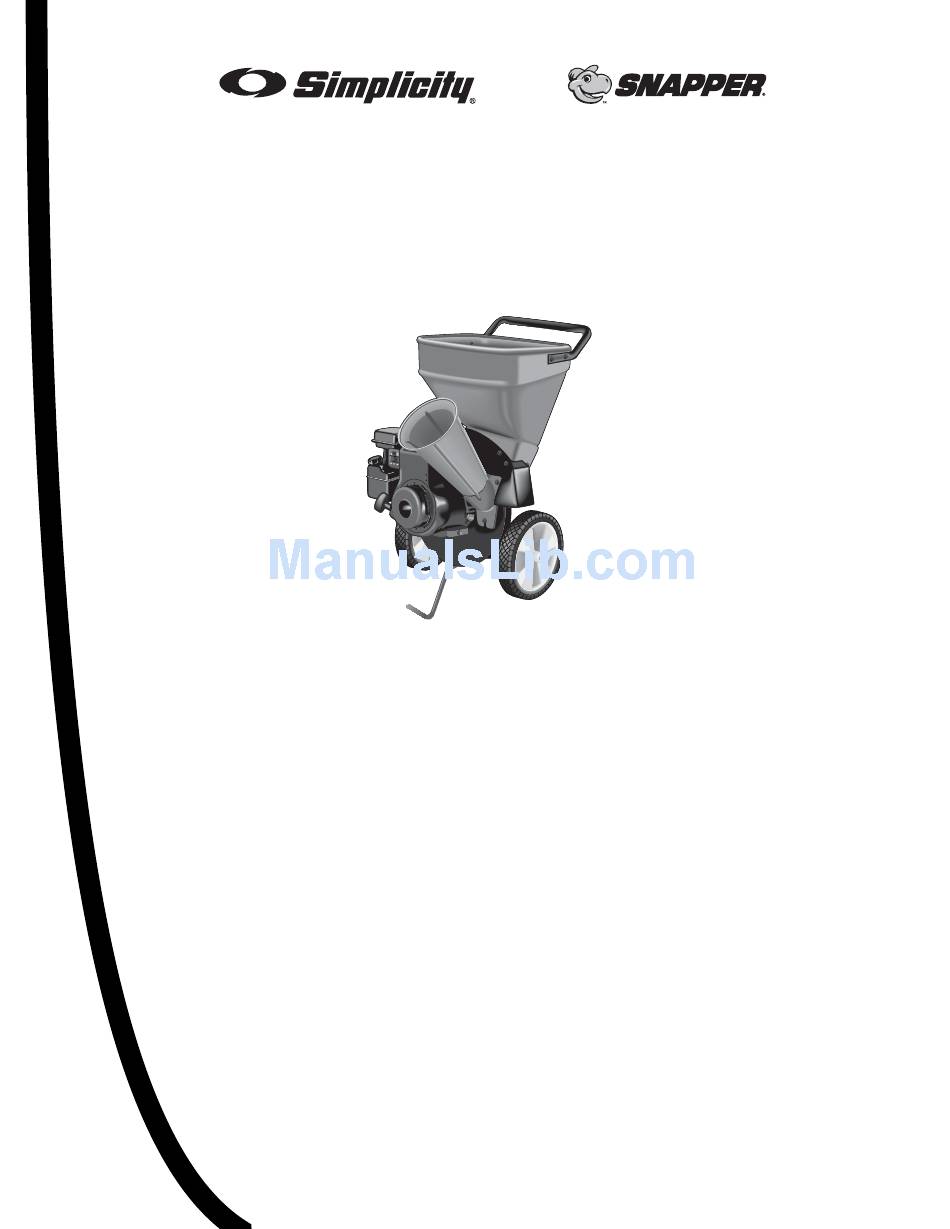

OPERATOR'S MANUAL

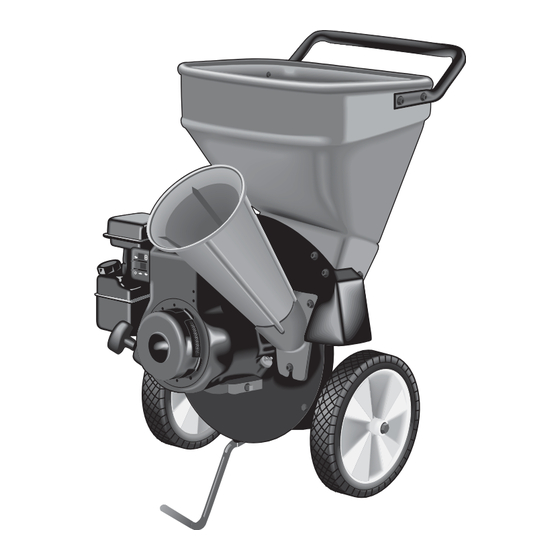

Chipper / Shredder
5/14 Series
Mfg. No. Description
1694910
Model 5/14, 5.5HP Simplicity Chipper / Shredder
1694898
Model 5/14, 5.5HP Simplicity Chipper / Shredder (CE)
7085637
Model SAC55140BV, 5.5HP Snapper Chipper / Shredder
7800070
Model E55140BV, 5.5HP Snapper Chipper / Shredder (CE)
8/14 Series
Mfg. No. Description
1694678
Model 8/14, 8HP Simplicity Chipper / Shredder
Manual No. 1732150
Revision 00
Rev. Date 10/2005
TP 100-4240-00-CS-SN
Advertisement
Table of Contents
Related Manuals for Snapper E55140BV
Summary of Contents for Snapper E55140BV
- Page 1 1694898 Model 5/14, 5.5HP Simplicity Chipper / Shredder (CE) 7085637 Model SAC55140BV, 5.5HP Snapper Chipper / Shredder 7800070 Model E55140BV, 5.5HP Snapper Chipper / Shredder (CE) 8/14 Series Mfg. No. Description 1694678 Model 8/14, 8HP Simplicity Chipper / Shredder Manual No. 1732150 Revision 00 Rev.
-
Page 2: Table Of Contents
Maintenance Schedule & Procedures...13 Check for Loose Hardware ...13 Check Safety Labels ...13 Inspect Cone, Hopper, & Guards ...13 Clean Debris from Engine & Chipper ...14 Inspect / Rotate Shredding Hammers ...14 Inspect Chipping Knives ...15 Check / Change Engine Air Cleaner ...15 Replace Spark Plug ...15... -
Page 3: Safety Rules & Information
Safety Rules & Information Read the Manual The operator’s manual contains important safety information you need to be aware of BEFORE you operate your unit as well as DURING operation. Safe operating techniques, an explanation of the product’s features and controls, and maintenance information is included to help you get the most out of your equipment investment. - Page 4 However, if you follow all the rules in this book, the unit is safe to operate. The chipper/shredder has spinning blades that can amputate hands and feet. Do not allow anyone near the equipment while it is running! Do not place hands or feet in the hopper or chipper cone, or discharge chute.
- Page 5 Never lean directly over the machine. 16. Always stand to the side of the chipper cone when feeding tree limbs and branches into the unit, as tree limbs, branches, and harder woods may kick back while being chipped.
- Page 6 3. Always use the hopper handle and built-in wheels to move the chipper/shredder. Never lift the unit using the fuel tank for support. If the unit must be lifted , always use at least two people, and always grip the unit securely using the front leg and hopper handle.
-
Page 7: Safety Decals
Safety Decals Safety Decals This unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effectively, we have placed several safety labels on the unit to remind you of this important information while you... -
Page 8: Safety Icons
Safety Icons Warning: Read Operator’s Manual. Read and understand the Operator’s Manual before using this machine. Danger: Amputation Hazard. To avoid serious personal injury from rotating cutting blades, keep hands out of inlet while machine is running. Danger: Wear Appropriate Safety Equipment. -
Page 9: Identification Numbers
Identification Numbers When contacting your authorized dealer for replacement parts, service, or information you MUST have these numbers. Record your model name/number, manufacturer’s identification numbers, and engine serial numbers in the space provided for easy access. These numbers can be found in the locations shown. -
Page 10: Features & Controls
To remove the cap, turn counterclockwise. Chipper Cone / Shredder Hopper Chipper Cone: The chipper cone is located on the front of the unit next to the engine. Insert branches and tree limbs up to approximately 3” (7,6 cm) in diameter into the chipper cone. -
Page 11: Operation
In addition to the chipper cone and hopper, loose debris may be processed by the Vacuum hose adapter kit. Leaves may be raked directly into the leaf tray where vacuum action will draw them into the shredder. -
Page 12: Stopping The Engine
• Maintain control of the materials you are feeding to prevent them from whipping around. • Do not insert short pieces of material into the chipper cone by hand. Use a larger piece of material to force them into the chipper cone. -
Page 13: Chipping / Shredding Recommendations
Always use a shorter grouped for easier handling. piece of wood to push end pieces into Maximum diameter of the chipper cone. Never place hands in approximately 3” (7,6 cm). the chipper cone. Never chip very hard or dry materials such as kiln dried dimensional lumber (2x4’s etc.) or other building materials. -
Page 14: Regular Maintenance
Service Interval: Every 5 hours; every spring and fall. Inspect the unit, checking for loose hardware or components. Pay special attention to the hardware attaching the chipper cone, hopper, axle, and front leg. Check Safety Labels Service Interval: Every spring and fall. -
Page 15: Clean Debris From Engine & Chipper
Regular Maintenance Figure 4. Clean Debris from Engine Cooling Fins Clean Debris from Engine & Chipper Service Interval: Before each use and every 100 hours. The engine requires air flow to cool itself and for combustion. Before each use, clean any debris from the unit especially from around the air shroud intake, air filter, and muffler. -
Page 16: Inspect Chipping Knives
2. See Figure 8. Remove the nuts securing the chipper cone to the front of the chipper. Remove the chipper cone (A) to access the knives. -
Page 17: Engine Oil Type And Capacity
Regular Maintenance Engine Oil Type & Capacity Select a quality engine oil using the chart in Figure 10. 5.5 HP models require 5/8 quart (0.6L) of oil. 8HP models require 7/8 quart (0.8L) of oil. Check Engine Oil Level Service Interval: Before Each Use Check the engine oil level at the oil fill and level check plug (A, Figure 11). -
Page 18: Troubleshooting & Repair
Replace air filter. See engine manual. Open choke. Clean out debris. Set throttle control to FAST. Sharpen or replace chipper knives. Material is not suitable for chipping. Allow unit to clear itself before adding more material to the hopper. Check assembly. Tighten or replace as required. -
Page 19: Repair
Troubleshooting & Repair Figure 12. Removing the Shredder Hopper Repair Shredding Hammer Rotation and Replacement The cutting edges of the shredding hammers may eventually wear out requiring rotation of the hammer or replacement if all cutting edges have been dulled. Triangular hammers can be rotated twice after the first edge dulls, then flipped over once and rotated again for a total of 6 edges. - Page 20 (see Figure 13). 5. Remove the chipper cone base (Figure 15). 6. Rotate the rotor assembly so that the socket head capscrews that secure one of the chipper knives can be accessed through the rotor cover and access hole (Figure 16).
-
Page 21: Initial Assembly
D. Chipper Cone Initial Assembly Install Chipper Cone - All Models 1. Secure the chipper cone (D, Figure 18) to the chipper cone base (C) using 1/4-20 x 3/4 screws, washers, and nuts (A). 2. Position the chipper cone base (C) over the three 5/16-18 threaded studs protruding from the engine plate, and attach using three 5/16-18 flange nuts (B). - Page 22 Install the Handle - All Models 1. Lift the hopper handle up until the outer holes in the handle align with the holes in the shredder hopper and secure with 1/4-20 x 3/4 screws, washers, and nuts (A, Figure 21). Insert the screws from the outside of the shredder hopper.
- Page 23 Initial Assembly Lift discharge chute and slide bag over chute. Make sure bag noose fits over top of discharge chute and notch in chute bottom. Pull drawstring tight. Figure 22. Discharge Bag - North American Models Install Discharge Bag This product comes with a discharge bag for collection of debris as it exits the discharge chute.
-
Page 24: Specifications
NOTE: Specifications are correct at time of printing and are subject to change without notice. * Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors. ENGINE: 5.5 HP* Briggs & Stratton Make Briggs & Stratton Model 120000 Horsepower... -
