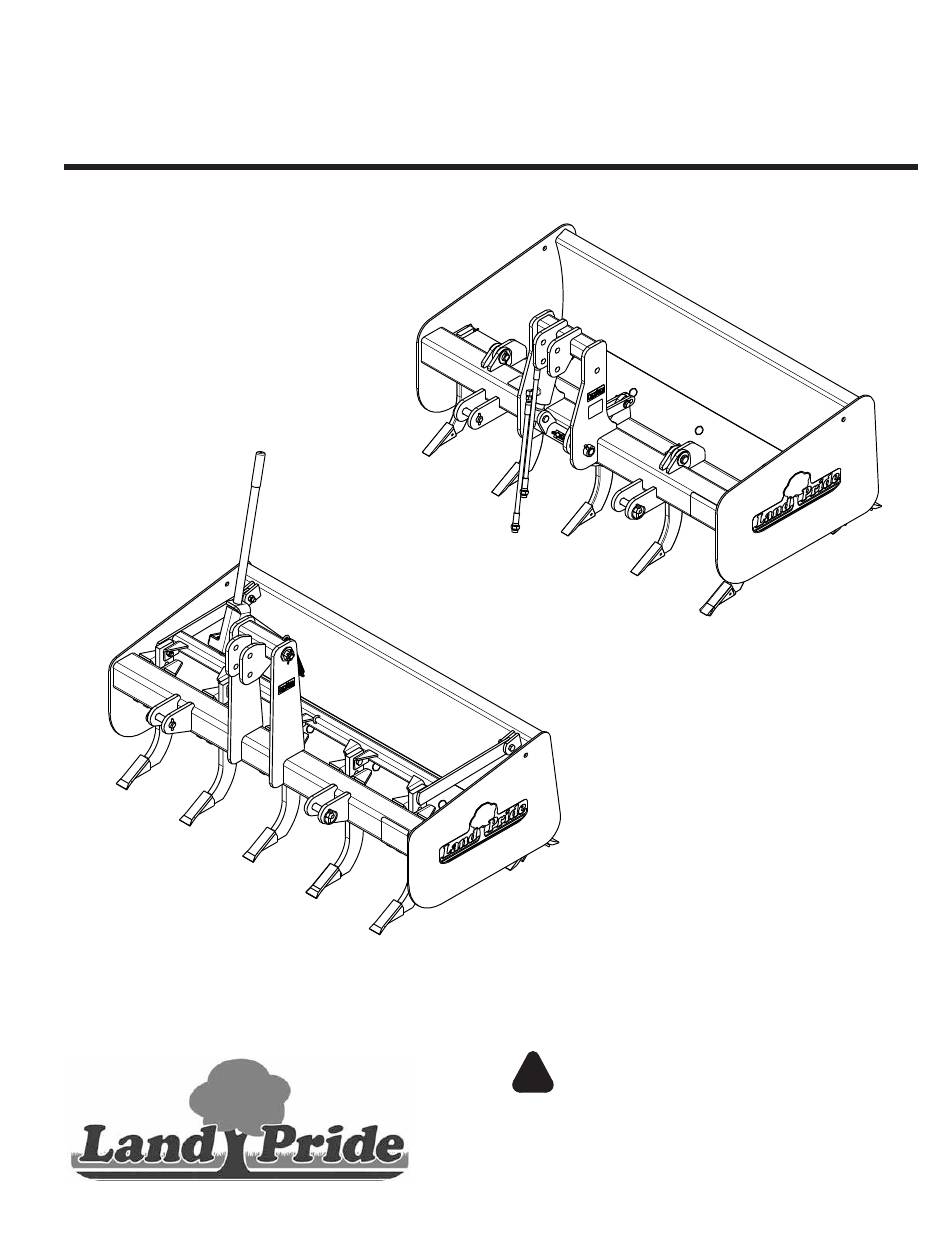

Retractable Box Scraper
MR1572 & HR2572
23741
MR1572
Table of Contents
HR2572
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
305-083M
Operator's Manual
Printed 11/28/18
Advertisement
Table of Contents
Related Manuals for Land Pride MR1572
Summary of Contents for Land Pride MR1572
- Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 11/28/18...
- Page 2 Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov MR1572 & HR2572 Retractable Box Scraper 305-083M 11/28/18...
-
Page 3: Table Of Contents
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future. - Page 4 Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. MR1572 & HR2572 Retractable Box Scraper 305-083M 11/28/18...
-
Page 5: Important Safety Information
Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident. - Page 6 Lower implement to the ground and Replace parts on this implement implement. follow all shutdown procedures with genuine Land Pride parts only. Attach the chain to the tractor before leaving the operator’s seat to Do not alter this implement in a way drawbar support or other specified perform maintenance.
- Page 7 Use Seat Belt and ROPS signals are recommended Keep Riders Off whenever driving on public roads. Machinery Land Pride recommends the use of a CAB or roll-over-protective- Never carry riders on tractor or structures (ROPS) and seat belt implement.
- Page 8 Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
- Page 9 Category 1- three point hitch mounting. The genuine Land Pride parts. Contact a Land Pride dealer if MR1572 model has a 72" working width and is adapted customer service or repair parts are required. Your Land for attaching to 4-wheel drive tractors in the 15-40 hp Pride dealer has trained personnel, repair parts, and ranges and 2-wheel drive tractors in the 15-50 hp ranges.
-
Page 10: Tractor Requirements
6. Insert hair pin cotter (#9) through pin tube (#3). Shank Tube Remove shipping hardware (#1 & #2) after blocking shank tube up. 23754 MR15 Dealer Assembly Figure 1-1 MR1572 & HR2572 Retractable Box Scraper 305-083M 11/28/18... -
Page 11: Hr25 Dealer Assembly
14. Reattach plastic caps to the exposed ends of the into the upper cylinder port. Rotate fitting hydraulic hoses or install customer supplied counterclockwise approximately 10 degrees beyond hydraulic couplers. straight down and tighten. 11/28/18 MR1572 & HR2572 Retractable Box Scraper 305-083M... -
Page 12: Point Hook-Up
Use a piece of cardboard or wood rather than hands NOTE: Land Pride’s Quick Hitch can be attached to when searching for leaks. A doctor familiar with this type of... -
Page 13: Section 2: Operating Instructions
Never make contact with underground utilities such as off. • electrical power lines, gas lines, phone lines, etc. They can 11/28/18 MR1572 & HR2572 Retractable Box Scraper 305-083M... -
Page 14: Transporting
Always raise the Box Scraper off the ground with the MR15 Shank Guides tractor’s 3-point lift before raising shank bar. Raise shank Figure 2-2 bar by pivoting lift handle toward the center of the Box MR1572 & HR2572 Retractable Box Scraper 305-083M 11/28/18... -
Page 15: Hr25 Basic Operation
This is done mechanically with your MR1572 or hydraulically with your HR2572. More aggressive ripping action is achieved when the individual shanks are uniformly adjusted to the... -
Page 16: Section 3: Adjustments
Spring Retainer Spring Retainer Top Notch Second Notch 23745 23745 HR25 Shank Setting HR25 Shank Setting Figure 3-1 Figure 3-2 MR1572 & HR2572 Retractable Box Scraper 305-083M 11/28/18... -
Page 17: Mr15 Shank Adjustments
Adjust shank height by unbolting each shank from NOTE: Through extensive research and testing, the shank lift tube. Land Pride has designed the optimum cutting angle 2. Raise or lower shank to the desired height. into your Box Scraper. If needed, shorten top center •... -
Page 18: Section 4: Accessories
Purchased them 5. Continue to raise shank up to its original position and through your nearest Land Pride dealer. reinsert 1/2"-13 x 2 1/4" GR5 bolt (#3). 6. Secure shank with nylock nut (#4). Draw nylock nut up Part Number &... - Page 19 Lubrication Schedule on page 16. The parts on your Retractable Box Scraper have been specially designed and should only be replaced with genuine Land Pride parts. Do not alter the scraper in a way which will adversely affect its performance. DANGER...
- Page 20 555-555C82. 4. Repaint parts where paint is worn or scratched to prevent rust. Ask your dealer for Land Pride aerosol touch-up paint. They are also available in touch-up bottles with brush, quarts, and gallon sizes by adding TU, QT, or GL to the end of the aerosol part number.
- Page 21 MR1572 = 72" Working widths HR2572 = 72" MR1572: 20-40 hp 4 wheel drive; 30-50 Hp 2 wheel drive Horsepower range HR2572: 30-60 hp 4 wheel and 2 wheel drive Roll-formed moldboard keeps materials flowing which puts less drag on the Box Roll-formed moldboard Scraper, resulting in lower hp requirements and faster working conditions.
- Page 22 40 hp for 4 wheel tractors 60 hp for 4 wheel tractors Maximum hp rating 50 hp for 2 wheel tractors 60 hp for 2 wheel tractors 3-Point hitch type Category l (Fits Land Pride Quick Hitch) MR1572 & HR2572 Retractable Box Scraper 305-083M 11/28/18...
- Page 23 Table of Contents Section 7: Specifications & Capacities 26747 MR1572 Retractable Box Scraper 26749 HR2572 Retractable Box Scraper 11/28/18 MR1572 & HR2572 Retractable Box Scraper 305-083M...
- Page 24 = nominal thread diameter in millimeters x thread pitch 1-1/2" - 12 1330 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. MR1572 & HR2572 Retractable Box Scraper 305-083M 11/28/18...
- Page 25 This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items such as blades, belts, tines, etc. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
- Page 26 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
