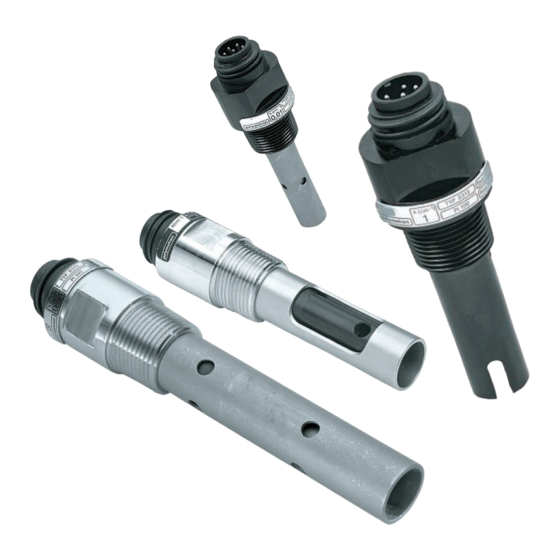

Hach 8310 User Manual
Conductivity probes
Hide thumbs
Also See for 8310:
- User instructions (340 pages) ,
- User manual (456 pages) ,
- User manual (82 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Hach 8310
Summary of Contents for Hach 8310
- Page 1 DOC024.98.93046 POLYMETRON Model 83xx Conductivity Probes 12/2016, Edition 4 User Manual Bedienungsanleitung Manuale d'uso Manuel d'utilisation Manual de usuario Návod k použití Brugervejledning Gebruikershandleiding Instrukcja obsługi Bruksanvisning Käyttäjän käsikirja Kullanım Kılavuzu...
- Page 2 English ..........................3 Deutsch .......................... 14 Italiano ..........................25 Français ......................... 36 Español .......................... 47 Čeština ........................... 58 Dansk ..........................69 Nederlands ........................80 Polski ..........................91 Svenska ........................102 Suomi ..........................112 Türkçe ........................... 122...
-
Page 3: Specifications
Specifications Specifications are subject to change without notice. Table 1 Probe specifications 8310 / 8315 8311 / 8316 Applications Pure and ultra pure water Moderately conductive solutions K (cm 0.01 Accuracy < 2% < 2% Transmitter measurement range 0.01 to 200 μS.cm 0.1 μS to 2 mS.cm... -
Page 4: General Information
08394=A=8200 08394=A=8150 Material 316 L SS 316 L SS Maximum temperature (°C) Maximum pressure (bars) Sensor connection Tri-Clamp 2 inch Tri-Clamp 1½ inch Sample connection ¼ inch NPT ¼ inch NPT General information In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages resulting from any defect or omission in this manual. -
Page 5: Precautionary Labels
Precautionary labels Read all labels and tags attached to the product. Personal injury or damage to the product could occur if not observed. A symbol on the instrument is referenced in the manual with a precautionary statement. This symbol, when noted on a product, indicates a potential hazard which could cause serious personal injury and/or death. -
Page 6: Cable Connections
Figure 2 Electrode diameters Model h max (mm) H min (mm) D min (standard piping) 8310 / 11 DN40 or 1½ inch 8312 DN20 or ¾ inch 8315 DN90 or 4 inch 8316 DN50 or 2 inch 8317 DN75 or 3 inch 8394 21.5... -
Page 7: Probe Installation
Note: For illustration purposes, cable part number 08319=A=00xx is shown in Figure 1 External shielding 4 External electrode 2 Internal shielding 5 Pt100 3 Internal electrode 6 Pt100 The cable is available in lengths of 5, 10 or 20 meters and must be connected in compliance with the following table: Function Color... - Page 8 Figure 5 8315 Probe Installation example for the 8394 probe ® ™ This probe installs perfectly in a Tri-Clover Tri-Clamp Tee starting from 1.5 inch diameter (A), and ™ also at a 90° angle starting from 2 inches (B). All Tri-Clamp Tees are in compliance with 3A standards for Cleaning In Place (CIP).
-
Page 9: Programming The Transmitter
6 for location) are leak free by adding waterproof material onto the male thread. The recommended waterproof material for each flow chamber is: Flow chamber Probe 8310/8311/8312 Probe 8315/8316/8317/8394 08313=A=0001 PTFE thread sealant tape PTFE thread sealant tape... -
Page 10: Probe Calibration
High conductivity zone: When the measurement frequency is low, the surface of the electrodes will very quickly saturate and form an insulating layer reducing the flow of current, a phenomenon known as polarization. Set the frequency to 1 kHz. Note: Select the Auto option to automatically adjust the frequence according to the measurement range. Set the type of temperature compensation The conductivity of a solution depends both on the concentration and mobility of the ions. -
Page 11: Maintenance
Second method 1. Program the transmitter in process calibration mode. 2. Make sure the displayed value is stable before adjusting it with that of a precision calibration solution with a conductivity close to that of the process sample. Maintenance Conductivity probes are extremely reliable and do not require constant re-calibration. However, if you observe inconsistent measurements, it is advisable to check the following: 1. -
Page 12: Spare Parts
Spare parts Probes Description Item no. 2 electrode conductivity sensor K=0.01, ¾ inch NPT thread 08310=A=0000 2 electrode conductivity sensor K=0.1, ¾ inch NPT thread 08311=A=0000 2 electrode conductivity sensor K=1, ¾ inch NPT thread 08312=A=0000 2 electrode conductivity sensor K=0.01, ¾ inch NPT thread 08315=A=0000 2 electrode conductivity sensor K=0.01, for Yokogawa flow chamber 08315=A=0002... - Page 13 Fittings Description Item no. Kit for 8394 1½ inch clamp with EPDM gasket, clamp and 316L SS welding ferrule (H 08394=A=0380 = 13mm) Kit for 8394 2 inch clamp with EPDM gasket, clamp and 316L SS welding ferrule (H = 08394=A=0510 13mm) Spare parts...
