BRAINWAVES PITCH SHIFTER User Manual
Obtaining the TonePrint app
If you own an iPhone, you can download the TonePrint app from Apple's
App Store.
If you own an Android phone, you will find the TonePrint app on Google Play.
Once you have the app, no additional downloads or in-app purchases are
required. You can access all available TonePrints from within the app, and all
TonePrints are free.
Transferring TonePrints to your pedal – step by step
• Launch the TonePrint app on your smartphone.
• Find the TonePrint you want to use. You can browse TonePrints by Artist or
Product (i.e., pedal type). You will also find Featured TonePrints.
• Plug your guitar or bass into your TonePrint pedal.
• Turn your TonePrint pedal on.
• Turn up the volume on your instrument and set the pickup selector to
one pickup.
• Hold the speaker of your smartphone next to the chosen pickup and touch
"Beam to pedal".

3.3 Editing TonePrints with TonePrint App

The TonePrint app allows you to use TonePrints created by your favorite guitar
and bass players. But this is only the start. Using TC's TonePrint app, you can
create your very own signature pedal sounds.
TonePrint app features
• Use TonePrint app to build your own custom sounds.
• Enjoy complete control over all effect parameters and effect behavior – it's
your vision, your sound.
• Customize knob function and knob range to suit your needs and sounds.
• Audition your sonic creations in real-time live – make changes on the fly and
listen to results immediately.
• Works with both PC and Mac.
Last but not least...
• TonePrint app is absolutely free!
Obtaining TonePrint App
If you want to use TonePrint App for your Windows or OS X computer, download
it from
tcelectronic.com/toneprint
If you want to use TonePrint app on your Apple iPad, download it from Apple's
App Store.
Please note that version 2.0 or higher of the TonePrint app is required for working
with TC Electronic Mini pedals. Version 2.0 has a Library function that allows you
to access and use TonePrints even without an Internet connection.
Obtaining the TonePrint app manual
Download the TonePrint app manual from
tcelectronic.com/toneprint
If you open the manual for TonePrint app in Adobe Reader, you can click on
interface sections to jump directly to the sections of the manual you are
interested in.

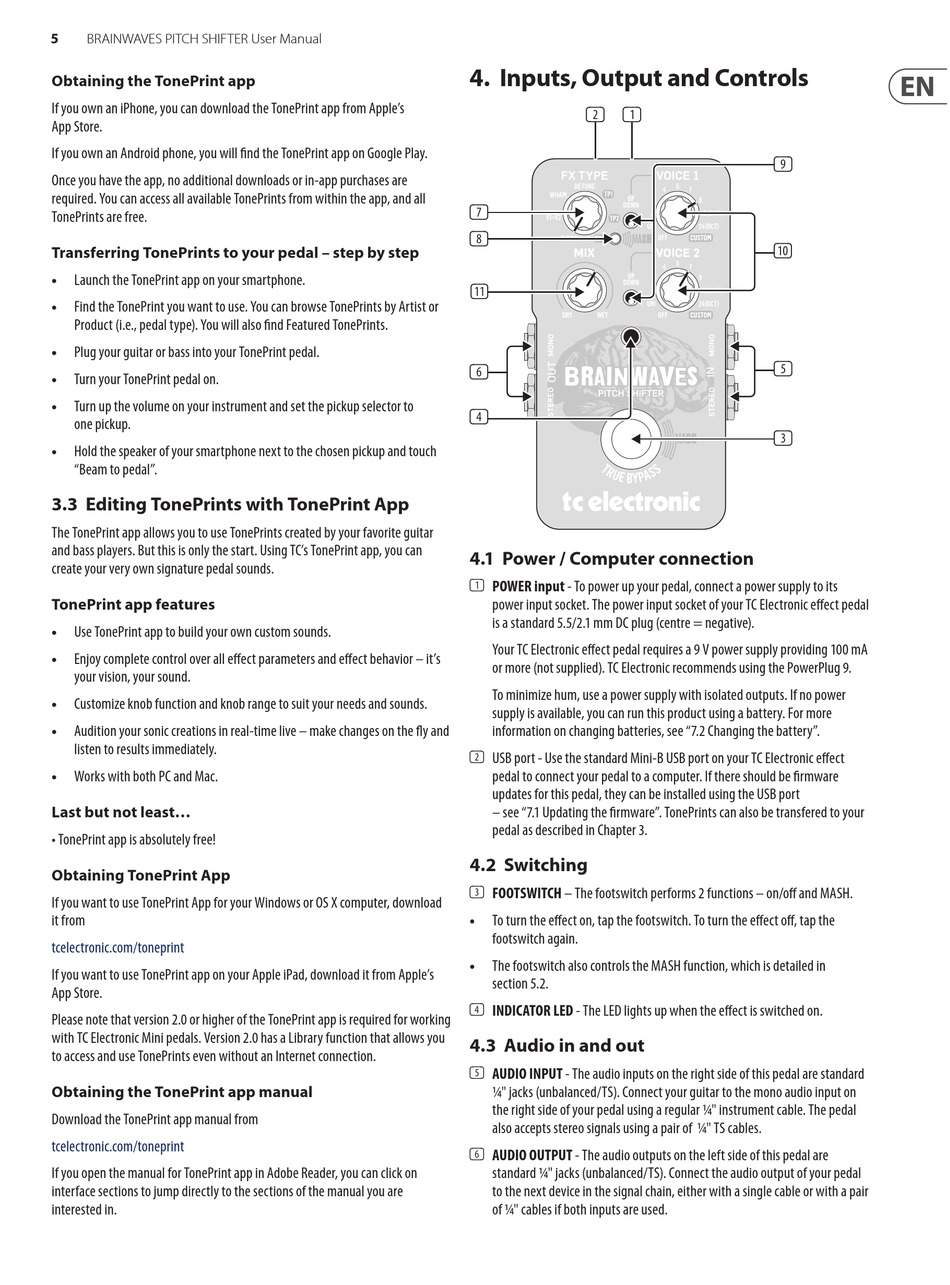

4. Inputs, Output and Controls

(2) (1)
(7)
(8)
(11)
(6)
(4)

4.1 Power / Computer connection

(1) POWER input - To power up your pedal, connect a power supply to its
power input socket. The power input socket of your TC Electronic effect pedal
is a standard 5.5/2.1 mm DC plug (centre = negative).
Your TC Electronic effect pedal requires a 9 V power supply providing 100 mA
or more (not supplied). TC Electronic recommends using the PowerPlug 9.
To minimize hum, use a power supply with isolated outputs. If no power
supply is available, you can run this product using a battery. For more
information on changing batteries, see "7.2 Changing the battery".
(2) USB port - Use the standard Mini-B USB port on your TC Electronic effect
pedal to connect your pedal to a computer. If there should be firmware
updates for this pedal, they can be installed using the USB port
– see "7.1 Updating the firmware". TonePrints can also be transfered to your
pedal as described in Chapter 3.

4.2 Switching

(3) FOOTSWITCH – The footswitch performs 2 functions – on/off and MASH.
• To turn the effect on, tap the footswitch. To turn the effect off, tap the
footswitch again.
• The footswitch also controls the MASH function, which is detailed in
section 5.2.
(4) INDICATOR LED - The LED lights up when the effect is switched on.

4.3 Audio in and out

(5) AUDIO INPUT - The audio inputs on the right side of this pedal are standard
1/4" jacks (unbalanced/TS). Connect your guitar to the mono audio input on
the right side of your pedal using a regular 1/4" instrument cable. The pedal
also accepts stereo signals using a pair of 1/4" TS cables.
(6) AUDIO OUTPUT - The audio outputs on the left side of this pedal are
standard 1/4" jacks (unbalanced/TS). Connect the audio output of your pedal
to the next device in the signal chain, either with a single cable or with a pair
of 1/4" cables if both inputs are used.
(9)
(10)
(5)
(3)
