Two people required for assembly. Read All Instructions & Tips before assembly.
2

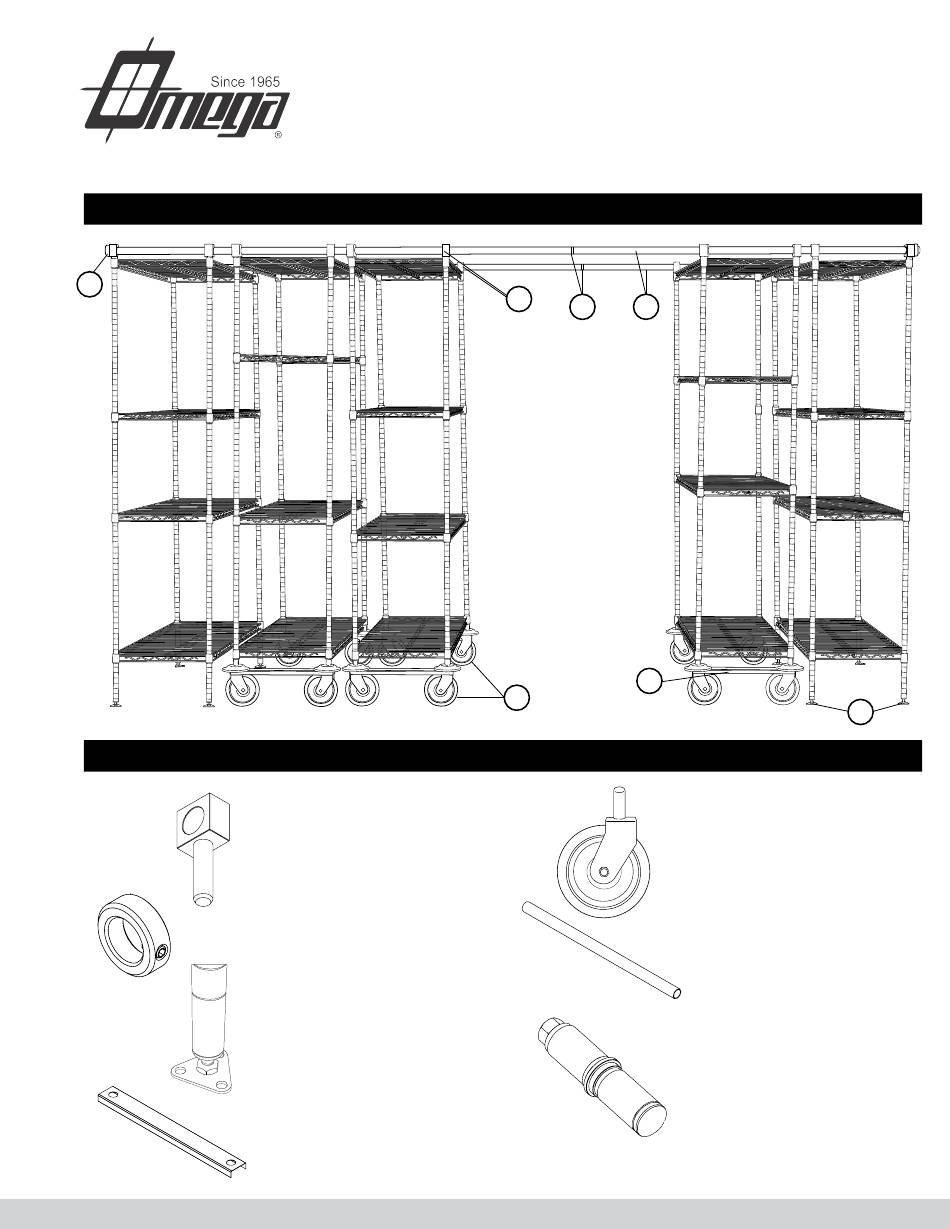

Core HDS-Plus™ System Components
1.
2.
3.
4.
HDS-Plus™ High Density Storage System
FTSGB
(Guide Blocks) Used at
tops of posts to guide mobile units
on track.
FTSLC
(Locking Collars)
Used on stationary units to
lock in track position.
FTSFZ
(Triangular Security Feet)
Used to anchor stationary units to
the floor.
FTSU18, FTSU21,
FTSU24
(Caster Channels)
Aligns casters on mobile units.
INSTRUCTIONS
1
7
6
5
(Full Component Checklist located at end of document)
ASSEMBLY
4
FTSC6
5.
(6" Casters w/ Bumpers) -
Smooth rolling casters for
mobile units. Bumpers prevent
collision of units..
FTST2, FTST3, FTST5
6.
(Stainless Steel Track Tubing)
Used at tops of units to allow
movement of mobile units on track.
FTSJ
(Track Joiner Connectors)
7.
that allow two sections of
stainless steel track tubing to
be joined together.
3
Advertisement
Summary of Contents for Omega HDS-Plus
- Page 1 ASSEMBLY INSTRUCTIONS HDS-Plus™ High Density Storage System Two people required for assembly. Read All Instructions & Tips before assembly. Core HDS-Plus™ System Components (Full Component Checklist located at end of document) FTSGB FTSC6 (Guide Blocks) Used at (6" Casters w/ Bumpers) -...
- Page 2 Locking collars must be used for each stationary unit. Stationary end unit should be used for heavier item storage. HDS-Plus system should only be used on hard surface. If all shelving units are not the same width, the wider units For added stability, it is recommended that the bottom shelf is should always be used as the stationary units.
- Page 3 Use 74" mobile posts. PART 3: CASTER ASSEMBLY OR MOBILE POST ASSEMBLY. Step 1 Lay completed shelving unit(s) with 74" posts on their side. Step 2 With the opening of the bumper facing towards the bottom, slide bumper over bottom of posts. Install 6"...
- Page 4 ASSEMBLY INSTRUCTIONS FULL HDS-PLUS SYSTEM COMPONENT CHECKLIST Please use this reference checklist to ensure that have all the components necessary to assemble your HDS-Plus shelving system. BaSe HDS-PlUS Kit Item # Desc Qty. Kit Item # Desc Qty. CoMPonenTS Kit Component #...
