- Page 1 INSTRUCTION MANUAL DISHWASHER...
-
Page 2: Table Of Contents
We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. -
Page 3: Safety And Operating Instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. -
Page 4: Safety Instructions
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. -
Page 5: Installation And Hook-Up
2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. -
Page 6: Electrical Connection
Installation instructions DRAIN CONNECTION Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. -
Page 7: Description Of The Controls

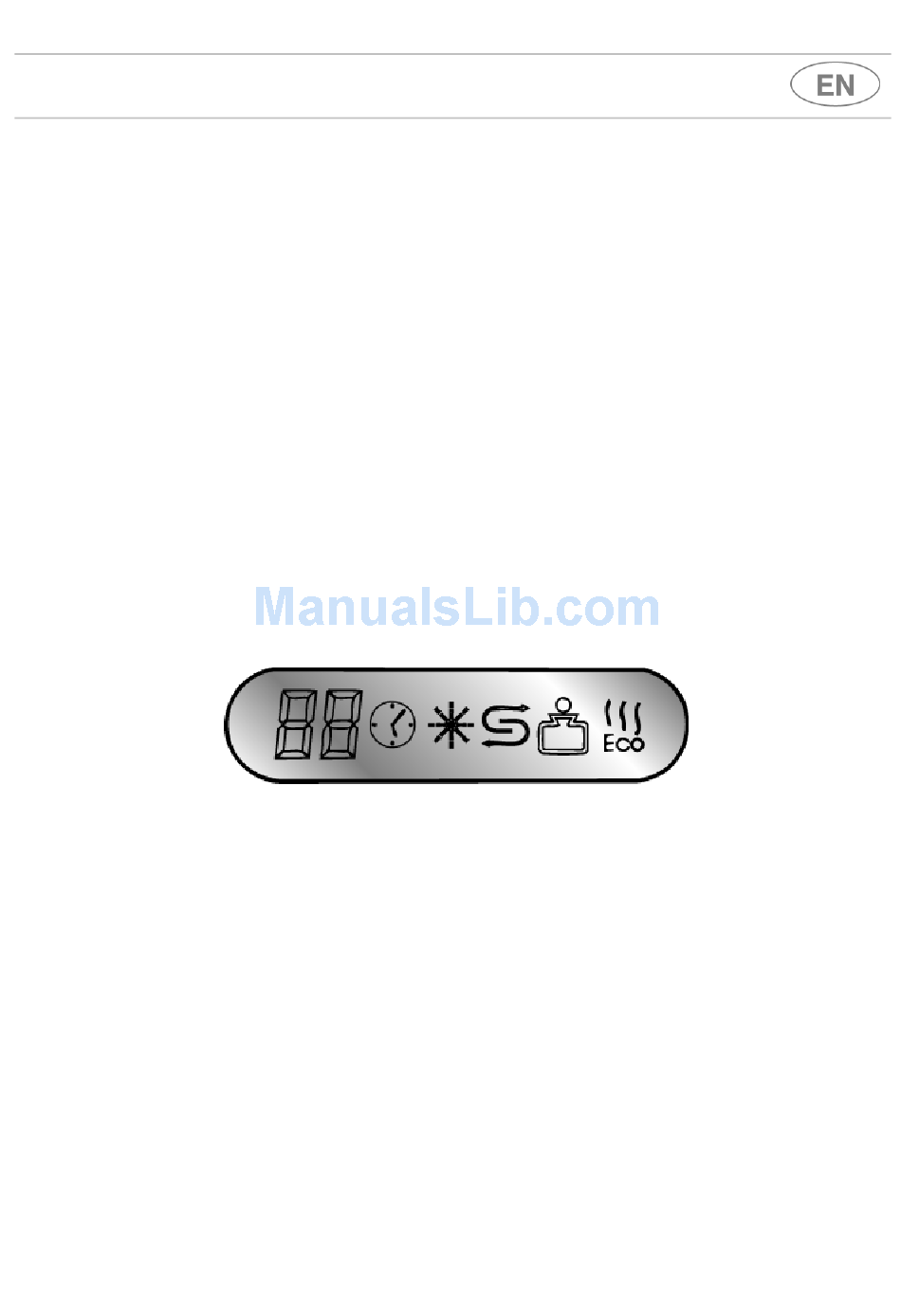

ECO DRYING CYCLE BUTTON (on some models only) INFORMATION DISPLAY Information display The dishwasher is equipped with a practical DISPLAY which provides information on the programmed dishwasher functions. CURRENT PROGRAM INFORMATION (remaining time indication and warnings for the most common problems) - Page 8 DELAYING THE PROGRAM The start of the washing program can be delayed from a minimum of 1 hour to a maximum of 9 hours; this allows you to operate the dishwasher at the time of day of your choice. When the DELAYED START button (3) is pressed, the DISPLAY (6) will show first the duration of the program set and then the number of hours (9,8, …1) of delay with which...
- Page 9 (**) Before starting program 8 check that the door of the detergent dispenser is open. (-) Not present. If the dishwasher door is left open or is not properly closed, the INFORMATION DISPLAY (6) will signal that the washing program cannot be started.
-
Page 10: Washing Programs
"3. Description of the controls", from which it is possible to carry out all the power switch- on, switch-off and programming operations. See enclosed program table for washing cycles and the procedure for starting the dishwasher and switching it on/off. -
Page 11: Operating Instructions
Before replacing the cap, remove any salt residues from around the opening. When using the dishwasher for the first time, in addition to the salt it is also necessary to add • one litre of water to the container. - Page 12 User instructions ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an electronic device for adjusting the water softening setting according to the hardness of the water. Depending on model, the setting may be made electronically or by means of a selector switch.
-
Page 13: Using The Rinse Aid And Detergent Dispensers
ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position. - Page 14 Do not use detergents formulated for washing dishes by hand, because they produce a great • deal of foam and may negatively affect the operation of the dishwasher. Add the correct amount of detergent. An insufficient amount of detergent will result in a partial •...
-
Page 15: General Warnings And Recommendations
General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account. -
Page 16: Using The Baskets
User instructions Using the baskets The dishwasher has a capacity of 10 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. - Page 17 User instructions CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
- Page 18 User instructions LOADING THE UPPER BASKET Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels.
-
Page 19: Cleaning And Maintenance
General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge. - Page 20 • It is essential to thoroughly clean the filters according to the above instructions: the • dishwasher cannot function if the filters are clogged. Carefully replace the filters in their seats, to avoid damaging the wash pump. • PROLONGED DISUSE: Run the soak program twice in succession.
- Page 21 TROUBLESHOOTING MINOR PROBLEMS In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: the dishwasher is connected to the electrical power supply; • there is no power failure;...
-
Page 22: Troubleshooting
To determine the cause of this problem call the authorised technical service centre. The temperature monitoring system has failed. Switch the dishwasher off, switch it back on and restart the washing program. If the alarm recurs, call the After Sales Service. - Page 23 TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel Height Capacity Water supply pressure Electrical characteristics User instructions 447 ÷ 449 mm 570 mm from 820 mm to 870 mm 10 Standard place settings Min. 50 – max. 900 KPa (min. 0.5 – max. 9 bar) See rating plate...
- Page 24 820- 820- 1/2” S N SF 3/4” 0,3-10 bar 0,3-10 bar 1,14 m 1,14 m 1,23 m 1,23 m 1,78 m 1,78 m 0,3-10 bar 0,3-10 bar 1,25 m 1,25 m 1,50 m 1,50 m 1,66 m 1,66 m Solo su alcuni modelli Certain models only Seulement sur certains modèles nur bei einige Modellen...
