Smeg ST4107 Instruction Manual

Smeg dishwasher instruction manual
Hide thumbs

Advertisement

Quick Links

INSTRUCTION MANUAL
G
U
I
D
E
F
O
R
U
S
I
N
G
T
H
E
D
I
S
H
W
A
S
H
E
R
A
N
D
T
H
E
W
A
S
H
I
N
G
P
R
O
G
R
A
M
S
G
U
I
D
E
F
O
R
U
S
I
N
G
T
H
E
D
I
S
H
W
A
S
H
E
R
A
N
D
T
H
E
W
A
S
H
I
N
G
P
R
O
G
R
A
M
S

Advertisement

loading

Related Manuals for Smeg ST4107

Summary of Contents for Smeg ST4107

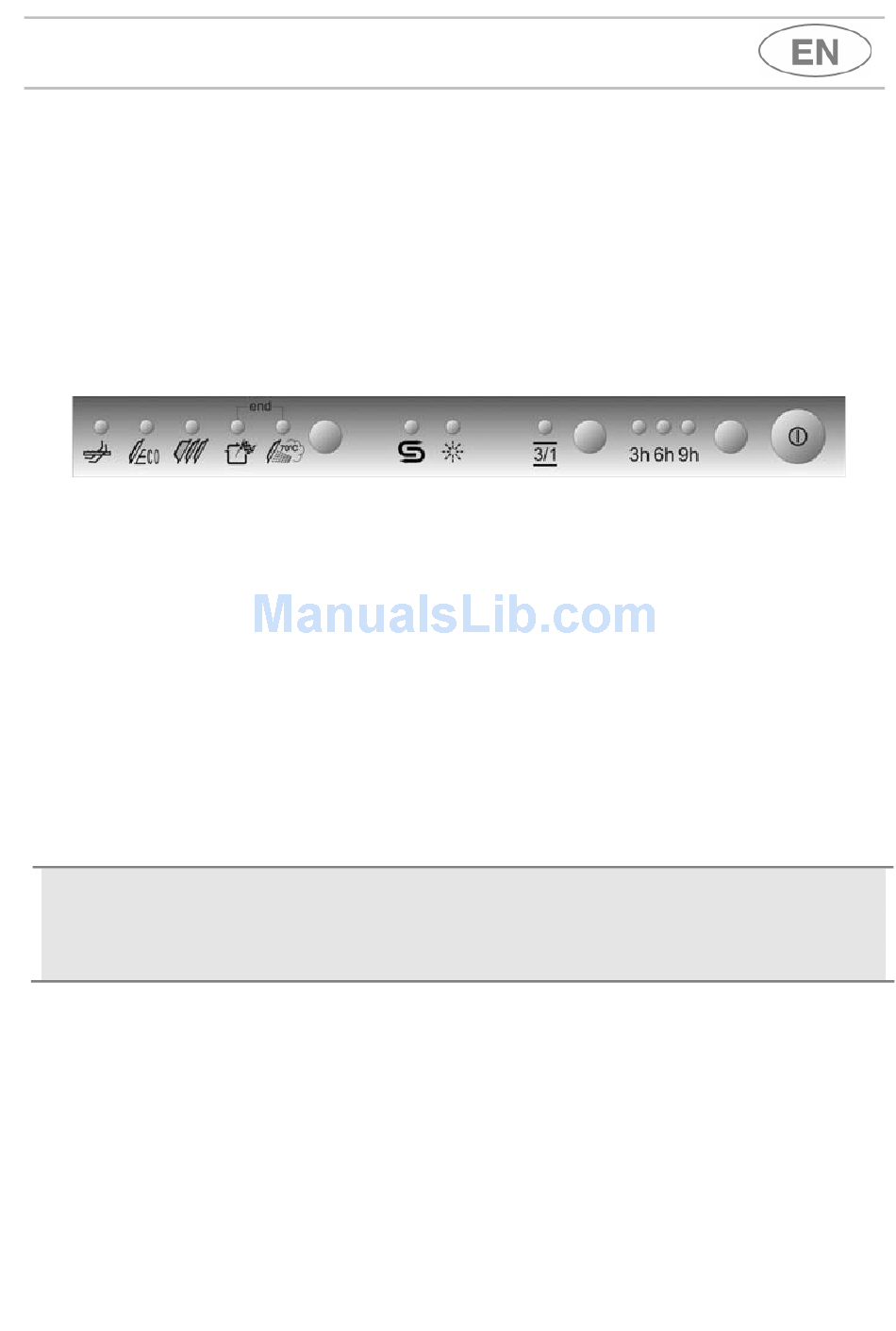

  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Following the cleaning instructions provided here will keep your dishwasher's performance at peak levels in the long term. This user-friendly manual will provide answers to all your questions about use of the dishwasher.

  • Page 3: Safety And Operating Instructions

    PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION. IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT OPENINGS UNDERSIDE OBSTRUCTED. ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.

  • Page 4: Safety Instructions

    OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT. IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
  • Page 5 NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP OVER IT. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP BASKET.

  • Page 6: Installation And Hook-Up

    A dishwasher can be built-in underneath a conventional hob provided there is no break in the kitchen worktop, and the dishwasher and hob are installed and secured correctly, so that no hazards are generated. When installing the dishwasher in a compartment next to one or more other appliances, it is essential to comply with all the recommendations provided by the appliance’s manufacturer (minimum distances, installation...
  • Page 7 The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness.
  • Page 8 Installation instructions 2.2 Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
  • Page 9 FOR GREAT BRITAIN ONLY: THIS APPLIANCE MUST BE EARTHED. Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows: Remove the fuse cover A and fuse B.

  • Page 10: Description Of The Controls

    User instructions 3. Description of the controls 3.1 Upper panel All the dishwasher controls are grouped on the upper panel. Switch-on, programming, switch-off etc. procedures are only possible when the door is open. ON/OFF BUTTON Pressing this button energises the appliance.
  • Page 11 The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes. The washing cycle will not take place if the dishwasher door is left open or not properly closed.
  • Page 12 (available in all programs except the soak program) The start of the program can be delayed by 3, 6 or 9 hours. This allows you to set the dishwasher to work at the times of day most convenient to you.
  • Page 13 • Do not carry out any preliminary rinsing. • If available, connect the dishwasher to a hot water supply up to 60°C. TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT THE ENVIRONMENT The phosphates contained in dishwasher detergents are harmful to the environment.
  • Page 14 4 and 5 start blinking (the word "end" is displayed on the window). To switch off the dishwasher, open the door and press the ON/OFF button (1). REMOVING THE DISHES At the end of the washing program, wait at least 20 minutes before removing the dishes, to allow them to cool down.

  • Page 15: Operating Instructions

    Before replacing the cap, remove any salt residues from around the opening. • When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container. •...
  • Page 16 ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an device for the user to adjust the water softening system according to the hardness of the water supply.
  • Page 17 WATER HARDNESS TABLE German Degrees (°dH) 0 - 4 5 - 15 16 - 23 24 - 31 32 - 47 48 - 58 Contact your local water board for information on the hardness of your water supply. 4.2 Using the rinse aid and detergent dispensers detergent dispensers are situated on the inner part of the door: the detergent...
  • Page 18 ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.
  • Page 19 • Do not use detergents formulated for washing dishes by hand, because they produce a great deal of foam and may negatively affect the operation of the dishwasher. • Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.
  • Page 20 The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher. 4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading.
  • Page 21 • Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.
  • Page 22 User instructions 4.4 Using the baskets The dishwasher has a capacity of 10 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.
  • Page 23 User instructions CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
  • Page 24 User instructions LOADING THE UPPER BASKET Load plates facing forward; cups, bowls etc. must always be facing downwards. The left-hand side of the basket can be loaded with two layers of cups and glasses. On the right plates and saucers can be slotted verticalli into the forks.

  • Page 25: Cleaning And Maintenance

    5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces.
  • Page 26 User instructions CLEANING THE SPRAY ARM, TRAVELLING VERSION To remove the TRAVELLING spray arm, take hold of it and raise it to release both the spray arm and the pipe from the tank, then detach the spray arm from the pipe. Wash both the pipe and the spray arm in running water, re-attach the spray arm to the pipe and return the assembly to the seat provided in the tank.
  • Page 27 • It is essential to thoroughly clean the filters according to the above instructions: the dishwasher cannot function if the filters are clogged. • Carefully replace the filters in their seats, to avoid damaging the wash pump.
  • Page 28 User instructions If the dishes are not being cleaned properly, check that: • the correct amount of detergent has been added; • there is regenerating salt inside the special container; • the dishes are being loaded correctly; • the selected program is suitable for the dish types and their degree of soiling;...

  • Page 29: Troubleshooting

    6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT User instructions DESCRIPTION Acquastop failure The anti-flooding system has been activated (for the relevant models only). The system is tripped in case of water leaks.
  • Page 30 • The alarm E7 is visualized at the end of the cycle that comes, however, brought to the end since the operation of the dishwasher is not harmed. To “reset” an alarm is necessary: •...
  • Page 31 TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel Height Capacity Water supply pressure Electrical characteristics User instructions 447 ÷ 449 mm 550 mm from 820 mm to 890 mm 10 Standard place settings min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar) See rating plate...
  • Page 32 ATTENZIONE: Quota "H" : secondo i modelli 820÷870 oppure 820÷890. CAUTION: Depending on the model, distance "H" may be 820÷870 or 820÷890. ATTENTION: Cote “H” : selon les modèles 820÷870 ou 820÷890. ACHTUNG: Maß "H" : gemäß den Modellen 820÷870 oder 820÷890. LET OP: Hoogte "H"...
