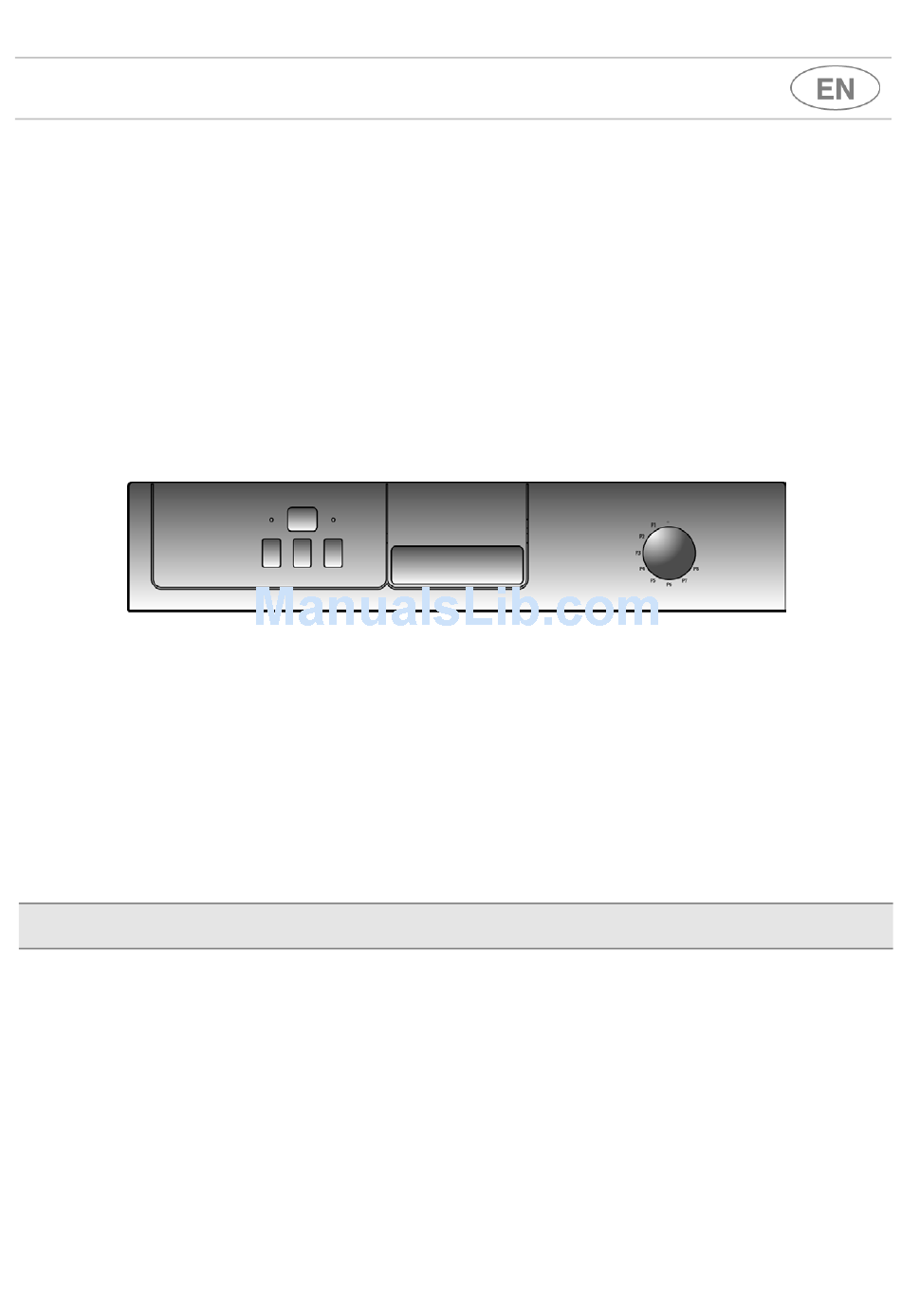

  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    This user-friendly manual will provide answers to all your questions about use of the dishwasher. For any other information about use and maintenance of the dishwasher, read the enclosed manual carefully.

  • Page 3: Description Of The Controls

    User instructions 1. Description of the controls Front panel All the dishwasher's controls and indicators are located on the front panel. WASHING PROGRAM - ON/OFF SWITCH START/PAUSE BUTTON PROGRAM DELAY BUTTON ½ LOAD WASH BUTTON (certain models only) PROGRAM STARTED/STOP (*) INDICATOR LIGHT 3-FIGURE DISPLAY (remaining time, program delay, alarms) ½...

  • Page 4: User Instructions

    POWER SWITCH-ON Turn the ON/OFF switch (1) to the program required. SETTING THE WASHING PROGRAM To select the most suitable washing program, refer to the table below which indicates the recommended washing according to dish type and the degree of soiling. Once the most suitable washing program has been selected using the table provided, turn the WASHING PROGRAM switch (1) to set the program required, placing it against the identification symbol or nummer.
  • Page 5 (2) The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes. The washing cycle will not take place if the dishwasher door is left open or not properly closed. User instructions...

  • Page 6: Washing Programs

    Rinse aid setting Washing programs The dishwasher is equipped with a control panel and an 3-FIGURE DISPLAY (6), described in chapter "1. Description of the controls", from which it is possible to carry out all the power switch- on, switch-off and programming operations.
  • Page 7 The PROGRAM DELAY button (3) can be pressed to delay the start of the washing program by up to 12 hours. This means that the dishwasher can be operated at the time of day of your choice. Press the PROGRAM DELAY button (3) again; the 3-FIGURE DISPLAY (6) will show the number of hours of delay with which the appliance will start.
  • Page 8 ADJUSTING THE WATER SOFTENING SYSTEM (available in all programs except the soak program) The dishwasher is equipped with an electronic device for adjusting the water softening setting according to the hardness of the water. To adjust the water softening setting, proceed as follows.
  • Page 9 The 3-FIGURE DISPLAY (6) shows the estimated duration of the washing program. If it is necessary to open dishwasher door during the washing cycle, there will be a 1-minute delay before the program can be resumed. After correctly closing the door, press the START/PAUSE (2) button again.

  • Page 10: Troubleshooting

    2. Troubleshooting The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM FAULT The anti-flooding system (where present) has been tripped. E2 - E9 The water level limitation system has tripped.
  • Page 11 INSTRUCTION MANUAL...
  • Page 12 Following the cleaning instructions provided here will keep your dishwasher's performance at peak levels in the long term. This user-friendly manual will provide answers to all your questions about use of the dishwasher.

  • Page 13: Safety And Operating Instructions

    PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION. IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT OPENINGS UNDERSIDE OBSTRUCTED. ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.

  • Page 14: Safety Instructions

    OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT. IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
  • Page 15 NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP BASKET.
  • Page 16 FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE APPLIANCE. THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD...

  • Page 17: Installation And Hook-Up

    Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.

  • Page 18: Installation Instructions

    The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness.
  • Page 19 Installation instructions 2.2 Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
  • Page 20 Installation instructions WHEN CLEANING AND MAINTAINING THE APPLIANCE: BEFORE CARRYING OUT ANY WORK, ALWAYS UNPLUG THE APPLIANCE FROM THE ELECTRICAL SUPPLY OR SWITCH OFF THE ALL-POLE DISCONNECTION DEVICE. FOR GREAT BRITAIN ONLY: THIS APPLIANCE MUST BE EARTHED. Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A.

  • Page 21: Operating Instructions

    Before replacing the cap, remove any salt residues from around the opening. • When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container. •...
  • Page 22 User instructions • Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system. • When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
  • Page 23 ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.
  • Page 24 • Do not use detergents formulated for washing dishes by hand, because they produce a great deal of foam and may negatively affect the operation of the dishwasher. • Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.
  • Page 25 "3/1" Products If you wish to use detergents which already contain salt and rinse aid, check whether your dishwasher is fitted with the "3/1 option button" on the "Controls description" page and then refer to the section which explains how to use this function.
  • Page 26 User instructions 3.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.
  • Page 27 • Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.
  • Page 28 User instructions 3.4 Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. EN 50242 STANDARD LOADS FOR CERTIFICATION BODIES LOWER BASKET UPPER BASKET UPPER BASKET for AAA models only (see energy label) The upper basket must be set in the low position.
  • Page 29 User instructions LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.
  • Page 30 The dishwasher is complete with two cutlery baskets, which means that one of them can be removed, freeing space in the bottom basket, if there is not much cutlery to be washed, or if a ½...
  • Page 31 User instructions UPPER BASKET It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.
  • Page 32 User instructions LOADING THE UPPER BASKET Load plates facing forward; cups, bowls etc. must always be facing downwards. The left-hand side of the basket can be loaded with two layers of cups and glasses. The centre can be filled with plates and side- plates, fitted upright into the supports provided.
  • Page 33 User instructions ADJUSTING THE UPPER BASKET The upper basket can be adjusted in two positions, according to the user’s needs and according to the height of the dishes in the lower basket. Proceed as follows. Pull-out version: • pull out the right-hand basket guide •...

  • Page 34: Cleaning And Maintenance

    4.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge.
  • Page 35 The filters should be cleaned under running water using a stiff brush. • It is essential to thoroughly clean the filters according to the above instructions: the dishwasher cannot function if the filters are clogged. • Carefully replace the filters in their seats, to avoid damaging the wash pump.
  • Page 36 In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: • the dishwasher is connected to the electrical power supply; • there is no power failure; •...
  • Page 37 User instructions If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).
