Summary of Contents for Extron electronics XPA Ultra Series
- Page 1 User Guide Audio Products XPA Ultra Series: XPA U 358, XPA U 358-70V, XPA U 358-100V, XPA U 358C-70V, XPA U 358C-100V XPA U 1004, XPA U 1004-70V, XPA U 1004-100V, XPA U 1004C-70V, XPA U 1004C-100V XPA U 1002, XPA U 1002-70V, XPA U 1002-100V Half-Rack Audio Power Amplifiers 68-3149-01 Rev.
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad This symbol, , when used on the product, is intended to WARNING avvertire l’utente della presenza di tensione non isolata pericolosa alert the user of the presence of uninsulated dangerous voltage within the all’interno del contenitore del prodotto che può...
- Page 3 ついては、 エクス トロンのウェブサイ ト より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2018-2019 Extron Electronics. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ®...
- Page 4 FCC Class B Notice NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: DANGER: • Will result in serious injury or death. • Entraînera des blessures graves ou la mort. WARNING: Potential risk of severe injury or death. AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. CAUTION: Risk of minor personal injury.
-
Page 6: Table Of Contents
Terms Used in this Manual ....... 1 Features .............. 1 Installation ..........4 Application Examples .......... 4 Mounting the XPA Ultra Series Amplifiers ..... 6 Tabletop Use ........... 6 UL Guidelines for Rack Mounting ..... 6 Rack Mounting ..........7 Rack Mounting Ventilation Recommendations ........ -
Page 7: Introduction
Introduction About this Manual This manual contains information about the Extron XPA Ultra Series of power amplifiers: • XPA U 358 eight channel low impedance power amplifier • XPA U 358-70V eight channel 70 volt power amplifier • XPA U 358-100V eight channel 70 volt power amplifier •... - Page 8 UL 2043 plenum rated when used with optional Flexible Conduit Adapter Kit — The XPA Ultra Series amplifiers meet UL 2043 for smoke and heat release for installation within a plenum airspace above a drop ceiling when used with the optional Flexible Conduit Adapter Kit.
- Page 9 High pass filter for high impedance models — This selectable filter, available on the • XPA Ultra Series high impedance models, rolls off frequencies below 80 Hz to prevent saturation of speaker transformers. • 5 mm screw-lock captive screw speaker connectors — Enable simple, secure connections with 22 to 12 AWG speaker cables.
-
Page 10: Installation
Installation This section discusses how to install the XPA Ultra Series of audio power amplifiers. Topics covered include: • Application Examples • Mounting the XPA Ultra Series Amplifiers Flexible Conduit Adapter Kit Installation • Application Examples The following illustrations are application examples for the XPA Ultra Series power amplifiers. - Page 11 1 2 3 4 CONFIG OUTPUTS DTP CROSSPOINT 4K SERIES DIGITAL PRESENTATION SWITCHER AV LAN Extron DTP CrossPoint 84 4K IPCP SA HDMI Scaling Presentation Matrix Switcher AV Sources Figure 2. XPA U 358-70V Application Examples XPA Ultra Series Power Amplifiers • Installation...
-
Page 12: Mounting The Xpa Ultra Series Amplifiers
Mounting the XPA Ultra Series Amplifiers The XPA Ultra Series amplifiers can be mounted in a rack using included rack ears, set on a table, mounted on a rack shelf, or mounted in the plenum space above a ceiling-mounted projector. Additionally, two XPA Ultra Series amplifiers can be connected using the included bridging plate to create a full rack-width unit. -
Page 13: Rack Mounting
The XPA Ultra Series amplifiers can be rack mounted using one of the following methods. Rack Ear Rack Mounting The XPA Ultra Series amplifiers ship with a set of rack ears so the half rack-width amplifiers can be installed in a full rack-width space. - Page 14 Bridge Plate Rack Mounting The XPA Ultra Series amplifiers ship with a bridge plate connector for connecting two XPA Ultra Series amplifiers together to form a full rack-width unit. Connect and mount two XPA Ultra Series amplifiers as follows: If feet were installed on the bottom of the amplifiers, remove them.
- Page 15 Rack Shelf Mounting The XPA Ultra Series can be mounted in a shelf using the optional RSU 129 1U Universal Rack Shelf Kit or the RSB 129 1U Basic Rack Shelf. Mount the amplifier with the shelf as follows: If feet were installed on the bottom of the amplifier, remove them.
-
Page 16: Rack Mounting Ventilation Recommendations
V e n p a c V e n V e n p a c p a c V e n p a c V e n p a c Figure 8. Vent Space Example XPA Ultra Series Power Amplifiers • Installation... -
Page 17: Flexible Conduit Adapter Kit Installation
A UL-listed electrical distribution box is required for the termination of the conduit opposite the XPA (see UL Requirements on the next page). • Un boîtier de distribution électrique listé UL est recommandé pour la terminaison du conduit à l’opposé du XPA. XPA Ultra Series Power Amplifiers • Installation... - Page 18 The optional Flexible Conduit Adapter Kit consists of: • One conduit adapter plate (pre-attached), for PS 124 and XPA 1002/2001 amplifiers • One conduit adapter plate for XPA Ultra Series amplifiers (not attached) • One 6-foot long electrical conduit •...
- Page 19 XPA Ultra Series Conduit Adapter Plate Figure 12. Secure XPA Ultra Series Adapter Plate to Conduit Thread the blue, brown, and green 18-gauge power wires included with the flexible conduit adapter kit through the length of the electrical conduit.
- Page 20 Connect the ground wire, as shown above, to the grounding stud on the bottom of the enclosure using the nut that was removed in step 4. Replace the cover of the XPA Ultra by attaching the 8 screws that were removed in step 2. XPA Ultra Series Power Amplifiers • Installation...
-
Page 21: Operation

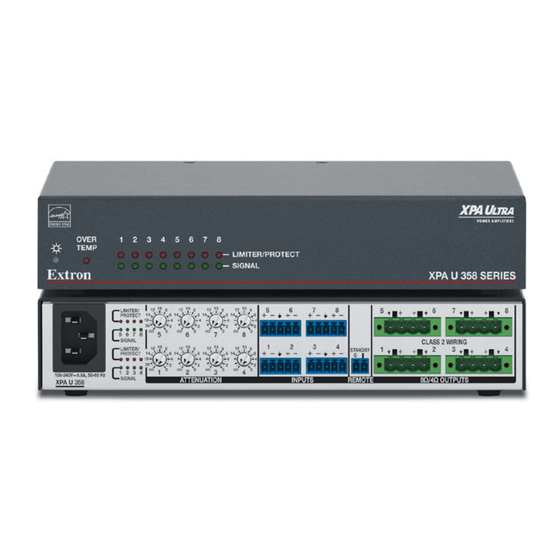

Operation This section discusses how to operate the XPA Ultra Series half-rack audio power amplifiers. Topics covered include: • Front Panel Features and Operation • Rear Panel Features and Operation Troubleshooting • Front Panel Features and Operation POWER AMPLIFIERS OVER... -
Page 22: Rear Panel Features And Operation
Flexible Conduit Adapter Kit (see Flexible Conduit Adapter Kit Installation on page 11). Limiter/Protect Indicator LEDs — These LEDs light red under certain circumstances (see Front Panel Signal Indicator LEDs at the top of this page). XPA Ultra Series Power Amplifiers • Operation... - Page 23 NOTE: A 10k ohm resistor is included in the box. If this resistor is connected between the standby pin and ground, the auto-standby timer is defeated. The standby pin can still be shorted to the ground pin to force the amplifier into standby. XPA Ultra Series Power Amplifiers • Operation...
- Page 24 Securing Speaker Wires with Captive Screws Step 2: Insert the wired connector into the amplifier output and secure the locking screws on either side. Figure 19. Securing Speaker Connector to XPA Ultra with Screw Locks XPA Ultra Series Power Amplifiers • Operation...
-
Page 25: Bridged Mono Output (8 Ohm/4 Ohm Outputs Only)
Speaker Load NOTE: During bridged mono output, the output from the odd channel becomes the positive terminal and the output from the even channel becomes the negative terminal. Figure 20. Bridging the Output XPA Ultra Series Power Amplifiers • Operation... -
Page 26: Troubleshooting
Unit does not exit disconnect the remote standby port (if connected). Next, reconnect power to the unit to determine if the unit immediately goes into standby upon power up. In such a case, service the unit. XPA Ultra Series Power Amplifiers • Operation... -
Page 27: Amplifier Enters Standby Mode Too Early
The LED turns off ventilation and airflow. after the amplifier cools down • Avoid placing equipment on top sufficiently of or below the amplifier. Verify that the operating • temperature is within the specified range. XPA Ultra Series Power Amplifiers • Operation... - Page 28 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
