G Series VH Grinder

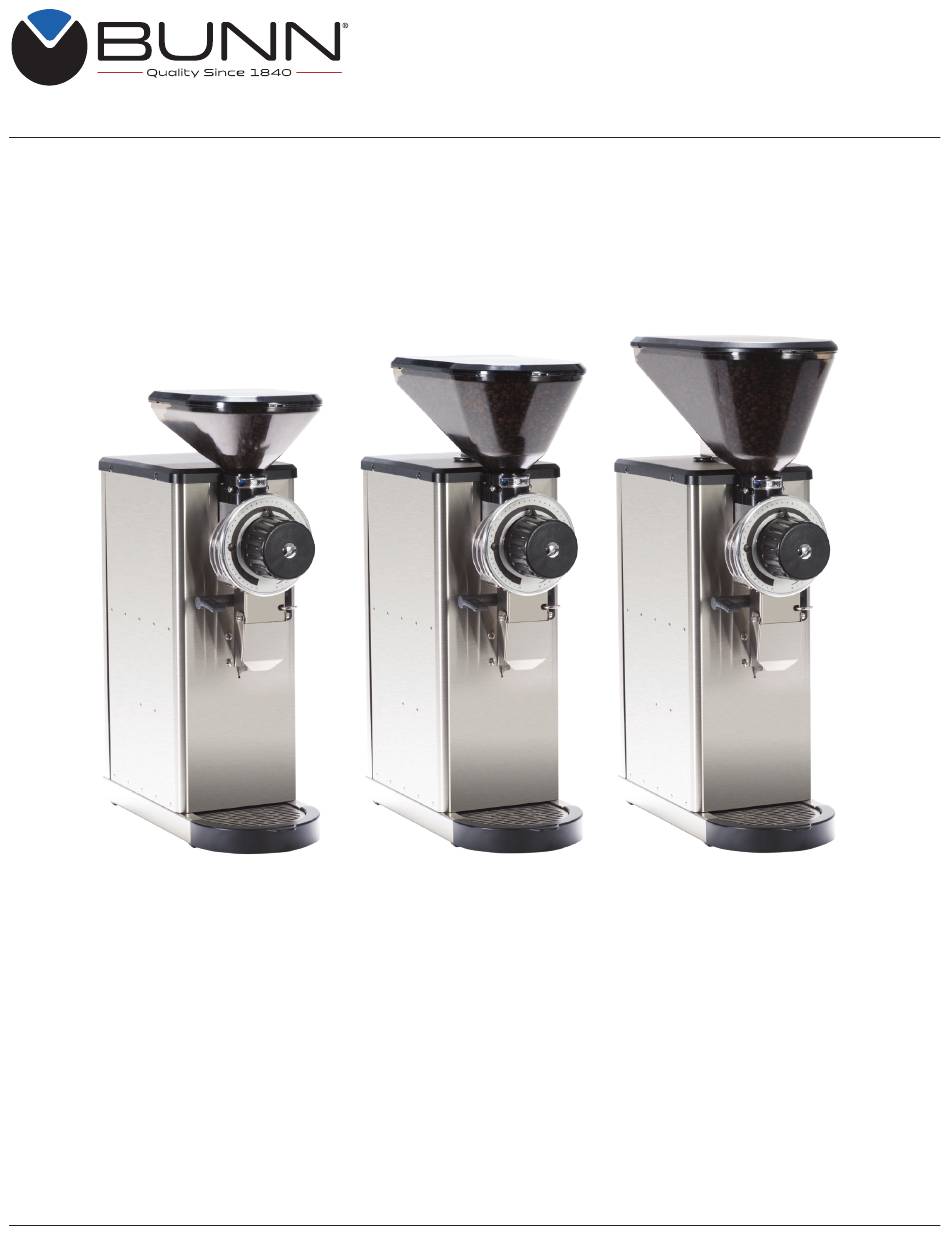

Fast, Precision Grinders with Visual Hoppers
GVH-1, GVH-2 & GVH-3
INSTALLATION & OPERATING GUIDE
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming
Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. For Technical Service, contact
Bunn-O-Matic Corporation at 1-800-286-6070.
Bunn-O-Matic Corporation
Post Office Box 3227, Springfield, Illinois 62708-3227
Phone (217) 529-6601 | Fax (217) 529-6644
www.bunn.com
55496.0000 A 11/18 © 2018 Bunn-O-Matic Corporation
