SkyLink WE-001 User Instructions

Wall Switch
1. INTRODUCTION
Thank you for your purchase of a SkylinkHome receiver, Wall Switch,
Model WE-001. Simply replace your existing wall switch with this Wall
Switch, you can then wirelessly turn on and off
TM
etc with a SkylinkHome transmitter.
The Wall Switch WE-001 can communicate with up to 8 transmitters, so
user has the option to add more transmitters to the system, such as more
remote controls, or motion sensors etc.
All wireless signal communications within the
based on rolling code technology to ensure highest security is used.

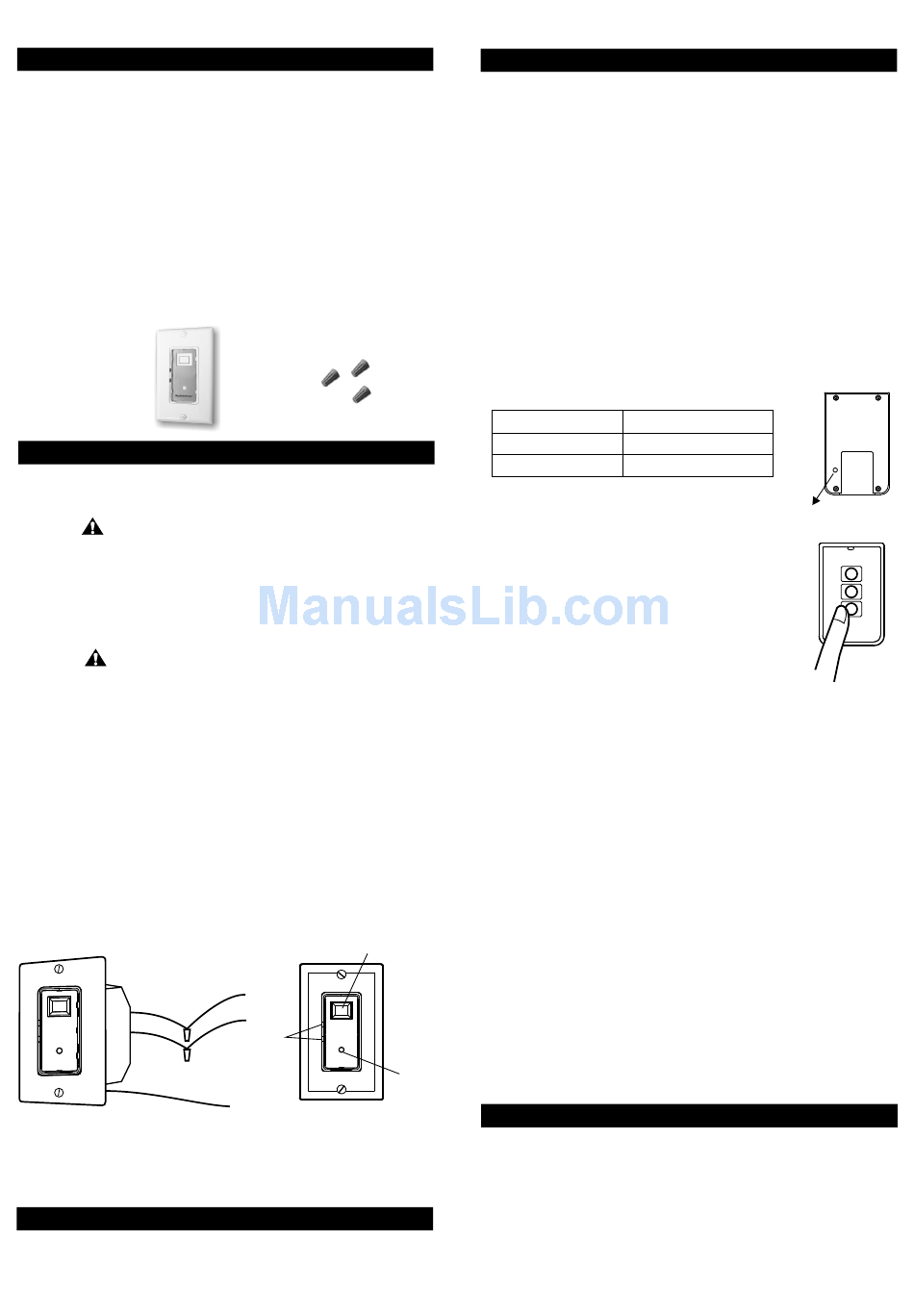

The following items are included in this package:
- Wall Switch
- Wire nuts
- User's Instructions
Setup of the Wall Switch is simple. Simply replace your existing wall switch
by the Wall Switch.
CAUTION
Installation is required and enclosed instructions must be followed
carefully to all steps and notes. If you are uncertain or uncomfortable
performing this installation, please consult a qualified electrician.
This manual should also be retained for future reference.
1. Turn off power to the circuit that you plan on installing the Wall Switch
to at the circuit breaker.
WARNING
Failure to turn off power at the circuit breaker can result in electrical
shock causing severe or fatal injury.
Note:
The Wall Switch is designed to operate maximum load of 1000W at
120VAC.
2. Follow the diagrams below to install the Wall Switch with the 2 wires:
Live, Load. Use the provided wire nuts to connect these wires
respectively to the existing wires from the wall : Load(Red) to load and
Live(Black) to live.
3. After all the wires are connected, ensure that all of the wire connectors
are attached securely and there should be no exposed copper wiring.
Secure the Wall Switch with the provided screws.
4. Turn the circuit breaker back on.
5. The status of the load connected
installed and you can begin programming to learn transmitters into the
Wall Switch.
Red
Black
Grey Antenna
Do not cut the antenna!
Note:
Antenna ( grey wire) -- Do not cut it, keep it as straight as possible.
Put the antenna directly into the dry wall or through a hole of the
metal box into the dry wall to get more control distance with a remote.
3. PROGRAMMING TRANSMITTERS (TC SERIES) / SENSORS
In order to operate the Wall Switch
must be programmed to the Wall Switch
by up to 8 different transmitters (or 8 different command signals).
Model WE-001
TM
lights or appliances,
TM
SkylinkHome
Wall Switch
WE-001
Wire nuts
2. SETUP
The two blue LEDs will be on.
will be off. The Wall Switch is now
Switch Button
Load
Live
Blue
LED
remotely with a transmitter or sensor, it
. Each module can be operated
3. PROGRAMMING TRANSMITTERS (TC SERIES) / SENSORS (CONT)
There are 2 operating modes with the
1) Switch Mode - When a valid signal is received, it will turn on or off the
load
2) Countdown Timer Mode - When a valid signal is received, the load will
be on for a specific period of time, 1 minute, 5 minutes, 15 minutes,
30 minutes, or 60 minutes. This is mainly for energy saving.
You can program multiple transmitters / sensors to the module and
different transmitter / sensor can activate a different mode.
System are
To program a TC series transmitter into the Wall Switch
Mode , follow the instructions below:
1. Wall Switch must be installed and powered properly.
button on the Wall Switch.
2 blue LEDs are off.
2. Press and hold the "SET" button for about 3 seconds, until the upper
blue LED flashes.
3. You may now release the "SET" button. The blue LED will continue to
flash quickly for about 15 seconds.
Operating Mode
Switch
Countdown Timer
4. Within 15 seconds, follow steps A) to C).
A. Press the PROG button on the back of the
TC transmitter.
B. Press the button on the TC transmitter that
you would like to program into the module.
C. Once the transmitter is programmed, the
two blue LEDs
quickly then stop flashing, indicating you
have successfully programmed the trans-
mitter to the module. Now the programmed
transmitter
Switch Mode
To program a TC series transmitter into the Wall Switch under
Countdown Timer Mode, follow the instructions below:
1. Wall Switch must be installed and powered properly. Push the square
button on the Wall Switch. The connected load should be on, and the
2 blue LEDs are off.
2. Press and hold the "SET" button for about 9 seconds, until the upper
blue LED is steadily on.
3. You may now release the "SET" button. The blue LED will continue to
be on for about 15 seconds.
4. Within 15 seconds, follow steps A to C.
A. Press the PROG button on the back of the TC transmitter.
B. Press the button on the TC transmitter that you would like to
program .
C. Once the transmitter is programmed, the two blue LEDs on the
Wall Switch flash quickly then stop flashing, indicating you have
successfully programmed the transmitter to the module. Now the
programmed transmitter button is ready to be used for Countdown
Timer Mode.
Note: To program other transmitters/sensors, please refer to the
instructions of those transmitters/ sensors and the above instructions.
Note: You must complete the programming sequence within the
15-second interval, otherwise, the Wall Switch will quit from programming
mode and you need to start again from step 1 if the blue LED is off.
SET
Button
As mentioned, the timer can be set to the following durations, 1 minute,
5 minutes, 15 minutes, 30 minutes, or 60 minutes.
This timer duration is used for Countdown Timer Operating Mode.
1. Wall Switch must be installed and powered properly. The connected
load should be off, and the 2 blue LEDs are on. The load must be off in
order to set the timer duration.
2. Press and hold the SET button for 3 seconds, the lower blue LED
flashes once. The number of flashes indicates the timer duration:
Wall Switch
The connected load should be on, and the
Upper LED Indication
Flashes quickly
Steadily On
LED on the Wall Switch flash
button is ready to be used for
.
4. SET TIMER DURATION
:
under Switch
Push the square
"PROG" button
TC-318-3
Press the
desired
button
